HEIDENHAIN MANUALplus 620 413
5.12 F
a
ce cont
ours in smar
t.T
u
rn
5.12 Face contours in smart.Turn
In smart.Turn, ICP provides the following contours for machining with
the C axis:
 Complex contours defined with individual contour elements
 Figures
 Holes
 Pattern of figures or holes
Reference data for complex face contours
The reference data is followed by the contour definition with individual
contour elements: See "Contour elements on face" on page 398.
You can find the reference dimension ZR with the "select reference
plane" function (see page 411).
ICP generates:
 The FRONT section code with the reference dimension parameter.
In nested contours, ICP generates only one section code.
 A G308 with the parameters contour name and milling depth.
 A G309 at the end of the contour description.

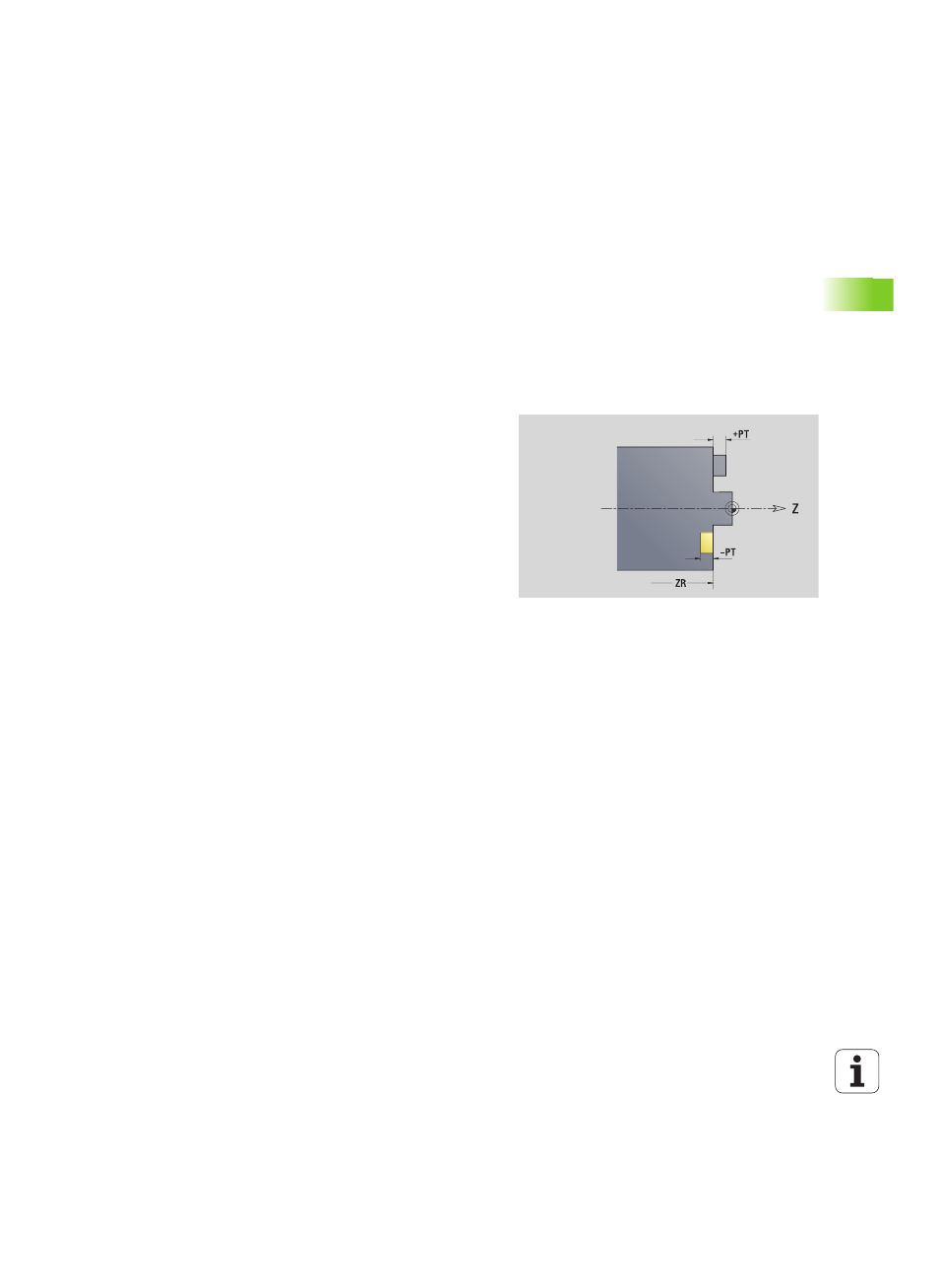

Reference data of face
ID
Contour name
PT Milling depth
ZR Reference dimension
