Chapter 7 Applying Effects — Checking Color Data
344

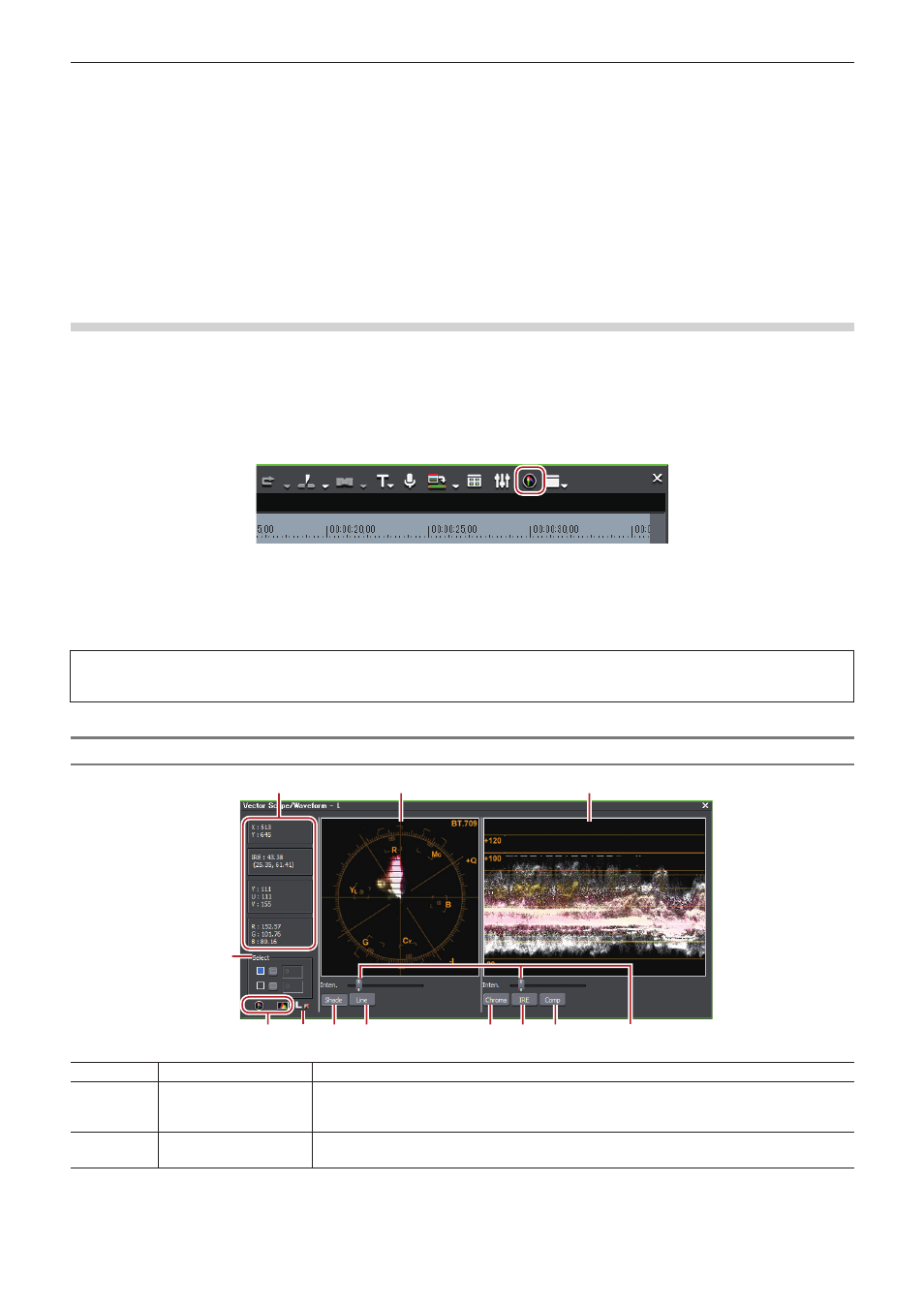

Checking Color Data
Adjusting to Display on TV Monitor
The video finely displayed on a PC monitor may cause the problems like highlight/shadow detail loss when actually displayed on a TV
monitor.
This problem occurs when the luminance range is smaller than that allowed to be displayed on a PC monitor. To display the video on a TV
monitor, you need to adjust video signal in advance.
[Vector Scope/Waveform]
To adjust the video signal range that is hard to judge visually, measure it with Vector Scope/Waveform. Vector Scope adjusts the color
balance, and Waveform adjust the brightness to be the average value of the whole display.
1)
Move the timeline cursor to display the image to check the color data on Recorder.
2)
Click [Toggle Vector Scope/Waveform Display] of the timeline.
f The [Vector Scope/Waveform] dialog box appears.
“[Vector Scope/Waveform] Dialog Box” (w page 344)
1 Alternative
f Click [View] on the menu bar, and click [Vector Scope/Waveform].
3 Note
f Displaying Vector Scope/Waveform increases the CPU loading.Display it only when required.
[Vector Scope/Waveform] Dialog Box
(1) (2) (3)
(4)
(5) (7) (8) (9) (10) (11) (12) (6)
(1) Information area Display coordinate values (X, Y) on the screen and YUV, IRE and RGB values.
(2) vector scope Display color distribution in the image shown in Recorder. The circle represents the color circle,
and the distance from the center represents the saturation Click on the vector scope to be
expanded, and right-click it while keeping expanded to be contrasted.
(3) Waveform Display chroma and luminance levels of the image on Recorder. Click on the waveform to be
expanded, and right-click it while keeping expanded to be contrasted.
