Issue 1, July 2014 Model 216 User Guide
Page 16 Studio Technologies, Inc.
output channel will become active until
the pushbutton is released. If the push-
button is momentarily “tapped” the
audio signal on the main output channel
will change state. Upon power up the
audio signal on the main output channel
will be in its muted state.
Talkback Button Mode
Switch 3 configures the way the talkback
pushbuttons function.

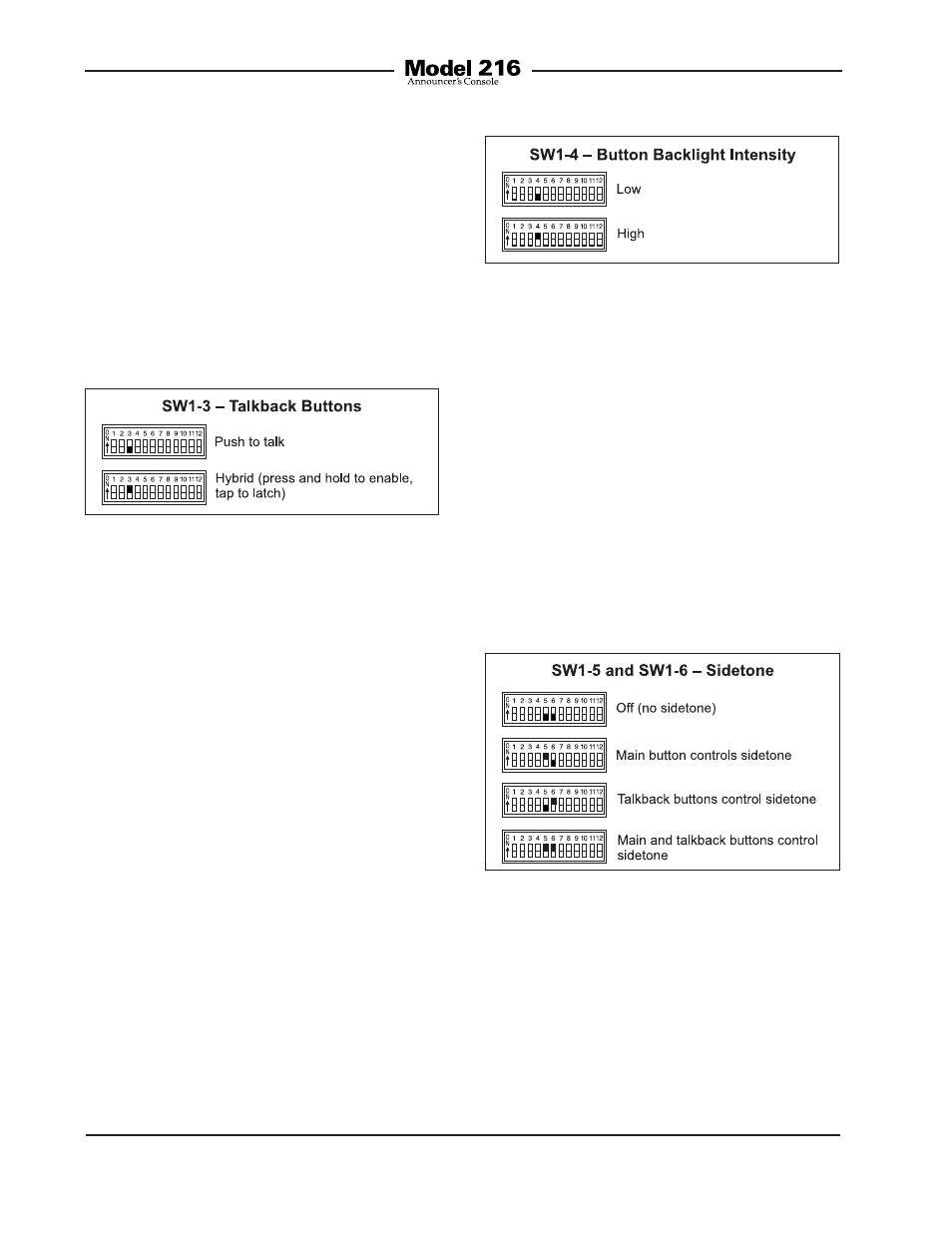

Figure 4. Talkback buttons switch settings
Two modes are available:
• Push to Talk: In this mode the audio
signal on the talkback output channels
is normally muted. An audio signal will
become active whenever its associated
pushbutton is pressed and held.
• Hybrid: This mode is a combination
of push to talk and latching action. If
a pushbutton is pressed and held the
audio signal associated with that talk-
back output channel will become active
until the pushbutton is released. If a
pushbutton is momentarily “tapped” the
audio signal on the associated talk-
back output channel will change state.
Upon power up the audio signals on the
talkback output channels will be in their
muted state.
Button Backlight Intensity
Switch 4 selects the intensity of the white
LEDs that provide backlighting for the four
pushbutton switches.
Figure 5. Button backlight intensity switch
settings
Figure 6. Sidetone switch settings
Two choices are available: low and high.
Low is appropriate when the Model 216
is to be used in an environment where the
ambient light level is low. High would be
appropriate where other light sources
in the physical area may make the push-
buttons more difficult to identify. High may
also be useful when identification mark-
ings have been inserted under the clear
lens caps.
Sidetone
Switches 5 and 6 configure the way the
sidetone function operates.
Four modes are available:
• Off: In this mode the sidetone function
not active.
• Main Button: In this mode the sidetone
function will be active whenever the
audio signal is present on the main
output channel.
