3

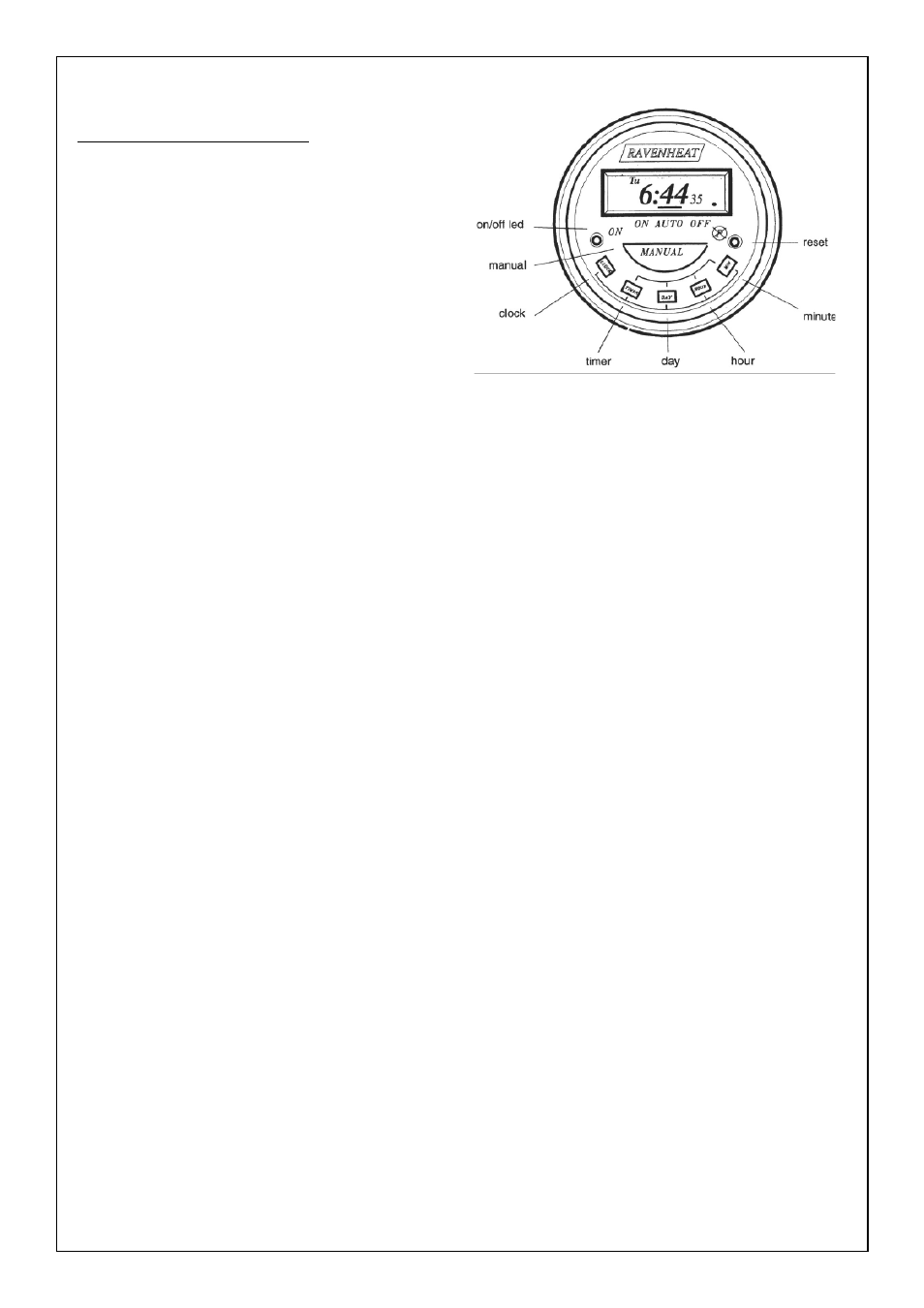

PROGRAMMABLE TIMECLOCK
INSTRUCTIONS FOR USE
Your Ravenheat boiler comes complete with (optional)
digital programmer.
The timeclock is supplied with a cover to prevent
accidental loss of programme, or children tampering
with pre-set programmes.
5. TO PROGRAMME TIMECLOCK
To access programming buttons remove clear cover.
Press reset key with a pencil before setting or
reprogramming times.
5.1.1 TO SET TIME AND DAY OF THE WEEK:
5.1.1.1 SET DAY OF WEEK:
- Press clock button and hold in.
Press day button to desired day.
- Release both buttons.
The day of the week will be set.
5.1.1.2 SET HOUR:
- Press clock button and hold in.
Press hour button to desired time.
- Release both buttons.
The hour will be set.
5.1.1.3 SET MINUTE:
- Press clock button and hold in.
Press minute button to desired time.
- Release both buttons.
The minute will be set.
NOTE: When, setting time holding in the hour/minute
button this will rapidly advance the display.
5.1.2 TO SET PROGRAMMES:
5.1.2.1 Press timer button and release to enter into
programme mode.
5.1.2.2 Programme “1 ON” will show in lower left hand
corner.
5.1.2.3 Press
DAY key to select the programme pe-
riod. There are 10 day settings for your choice.
(1) Mo to Su (2) Mo (3) Tu (4) We (5) Th (6) Fr (7) Sa
(8) Su (9) Mo+Tu+We+Th+Fr (10) Sa+Su.
You now have a choice of 6 programmes.
5.1.2.4 Press hour button to set the required hour’on’
5.1.2.5 Press minute button to set minute.
5.1.2.6 After setting the programme press
TIMER key
again “1 OFF” will appear.
Repeat procedure 5.1.2.3 through to 5.1.2.5 to set
programme “1 OFF”TIME.
For each programme days `off’ setting must be input
the same as the `on’ setting.
5.1.2.7 After setting programme 1 ON/OFF TIME
repeat step 2.1 to 2.7 to set programmes 2 through to
6 if required.
5.1.2.8 Your timer gives you up to 6 different ONE and
6 different OFF settings per programme period. Note
you have a choice of 6 ON-6 OFF programmes max.
5.1.2.8.1 REVIEW YOUR PROGRAMMES:
- Press the TIMER key to advance display to eache
subsequent ON or OFF setting.
- Check days and times displayed.
- To make a change, follow instructions under
“TO SET PROGRAMMES”.
Note on completion of programming operations press
the clock button to show current time/day and replace
the clear tamper proof cover.
5.1.2.8.2 MANUAL KEY
- Press MANUAL key to select ON / AUTO / OFF
mode.
- ON mode is to turn on the timer, OFF mode is to turn
off the timer.
- AUTO mode is to set the timer to programme mode.
It will turn on or turn off according to the programmes
you set.
- From ON to AUTO mode it will turn on until next OFF
programme.
- From OFF to AUTO mode it will turn off until next ON
programme.
5.1.2.8.3 LED INDICATOR
LED light is on when the boiler is operating in heating
mode.
5.1.3 TO RESET TIMER:
Press reset button to reset the timer unit.
NOTE:
Once the reset button is pressed, the stored time and
programme will be cleared to initial state.
N. B.: When the clock is either “programmed” on, or is on constant, the red indicator will illuminate.
