INSTALLATIoN
. To replace an older toilet, turn off water supply to toilet.
Disconnect water line at toilet water valve. Unscrew floor
bolt nuts and remove toilet. Discard old floor seal and
mounting bolts. The old floor flange may be used if it is
in good condition and fastener holes are positioned as

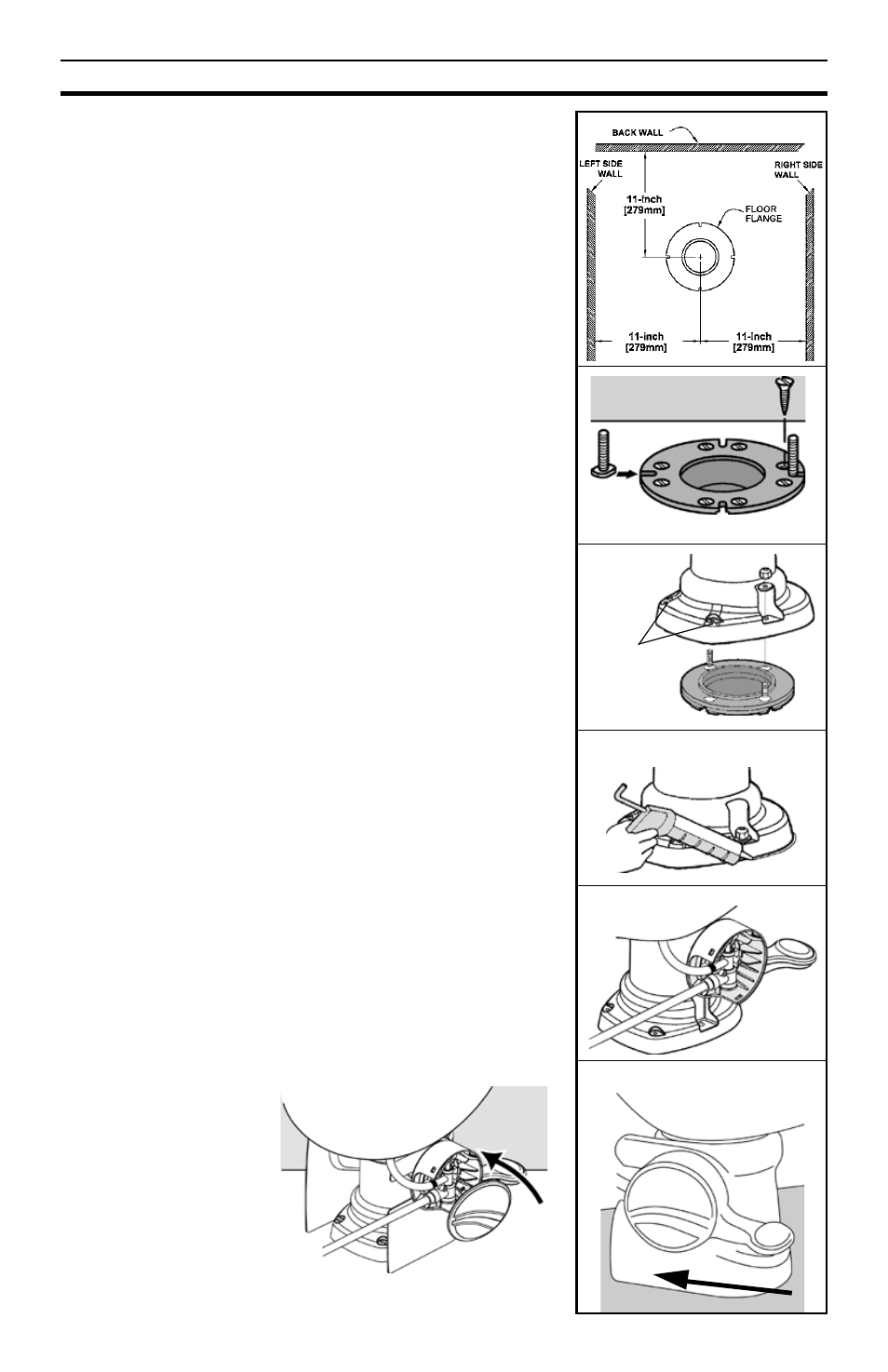

shown in Figure A. Make sure center of floor flange is at
least inches from back wall (Figure A).
2. If installing new floor flange, make certain that the toilet
mounting bolts align properly with SeaLand toilet mount-
ing pattern (Figure B).
3. Secure flange to floor using at least four flat-head screws
(one each at the front, back, right and left sides of flange)
through countersunk holes. Insert floor bolts into slotted
holes at right and left sides of flange (Figure B).
4. Position floor seal by pressing the floor bolts up through
holes in the seal.
5. Set toilet in place with bolts protruding up through
mounting holes in base (Figure C).
6. Install washers and hex nuts provided with toilet. Snug
nuts down equally with standard 7/6” open end wrench.
Install two wood screws provided in two holes at rear of
base. (Figure C).
7. If toilet is being installed in a shower stall, apply a /4”
bead of glazing compound around the perimeter of the
base (Figure D).
8. Connect water supply line to water valve (/2” MPT) inlet
using appropriate fittings or an extension (Figure E).
9. Turn on water supply and flush toilet to test for leaks.
10. Attach pedal cover to flush pedal (see instructions below)
after making sure there are no leaks at connections.
. FOR MODEL 20 ONLY, put base cover in front of toilet
base, aligning flush pedal with opening on side of cover.
Push base cover back until it locks into place, making
sure it does not interfere with flush pedal operation
(Figure F).
Fig. D
Insert
two
wood
screws
in rear
of base.
Fig. B
Fig. C
Fig. E
Fig. F
Attaching pedal Cover
. Align cover with pedal and press into place so
that tab locks into space at rear of pedal.
2. To release cover,
press on tab at back
of pedal and pull
cover off.
Fig. A
fRoNT
CoVER
