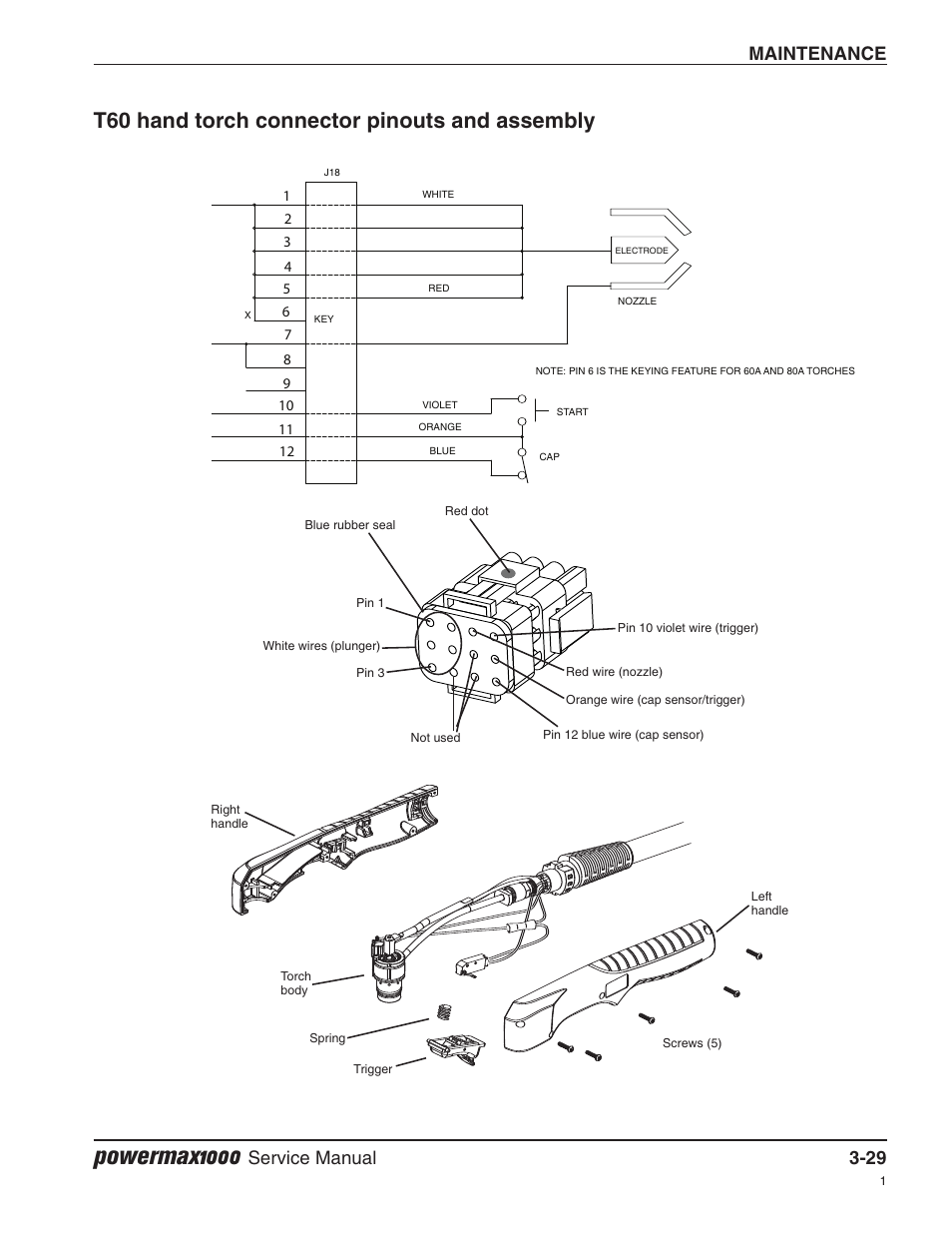

T60 hand torch connector pinouts and assembly, Powermax1000, Maintenance – Hypertherm Powermax1000 Service Manual User Manual
Page 62: Service manual 3-29
