Troubleshooting preparation, Test equipment, Troubleshooting procedures and sequence – Hypertherm Powermax1000 Service Manual User Manual

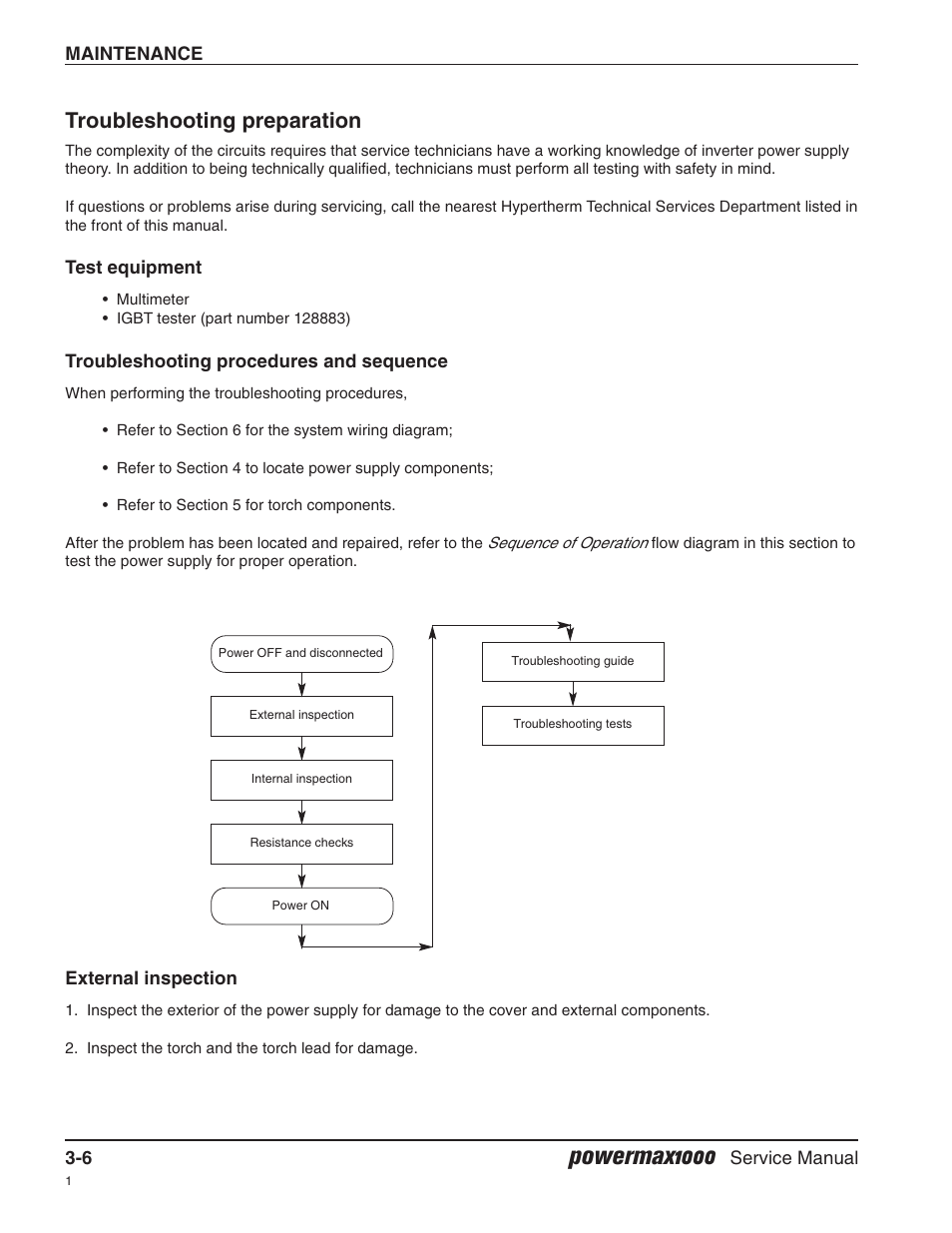

Page 39: External inspection, Powermax1000
