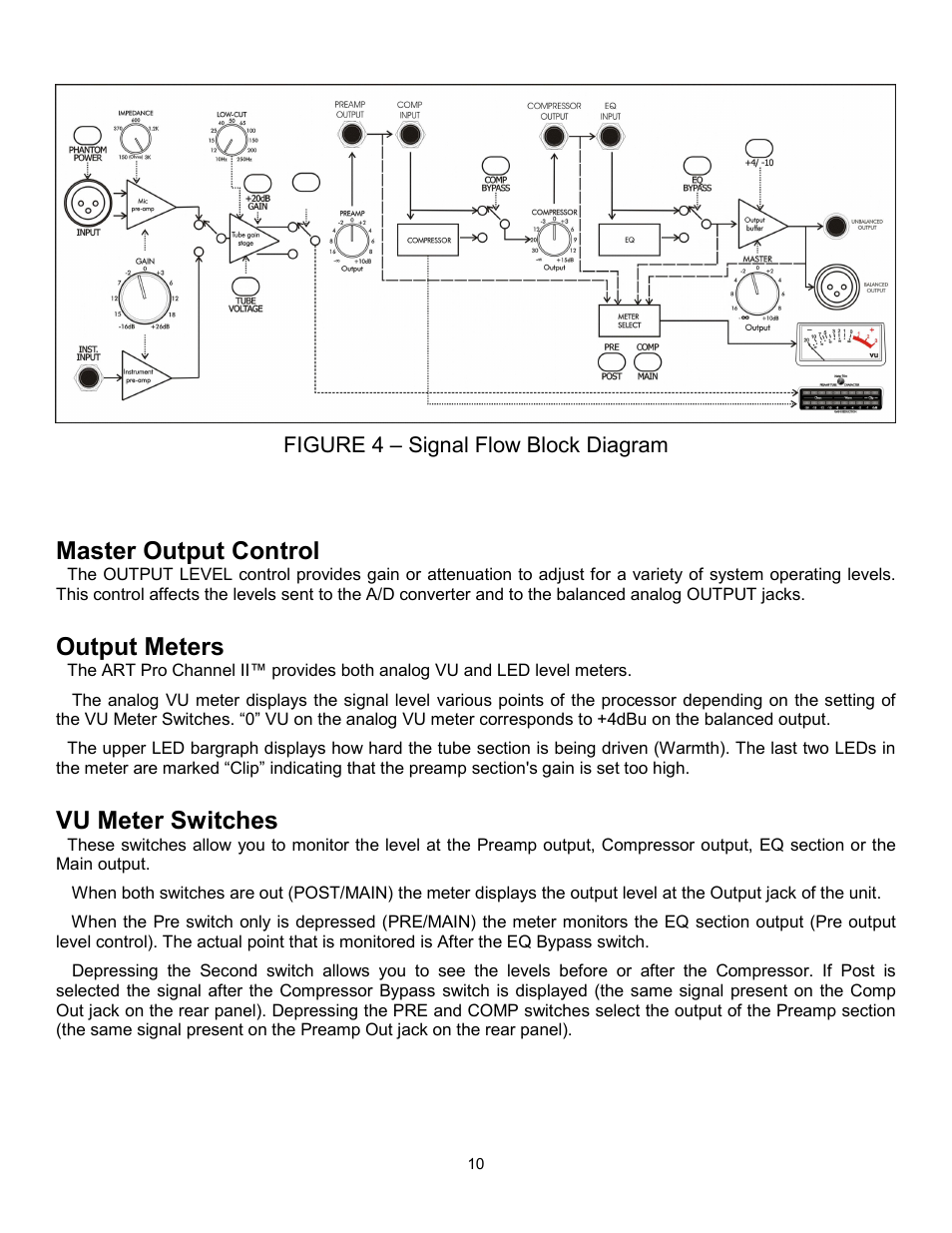

Figure 4 – signal flow block diagram, Master output control, Output meters – ART Pro Audio ProChannel II User Manual
Page 11: Vu meter switches
