6

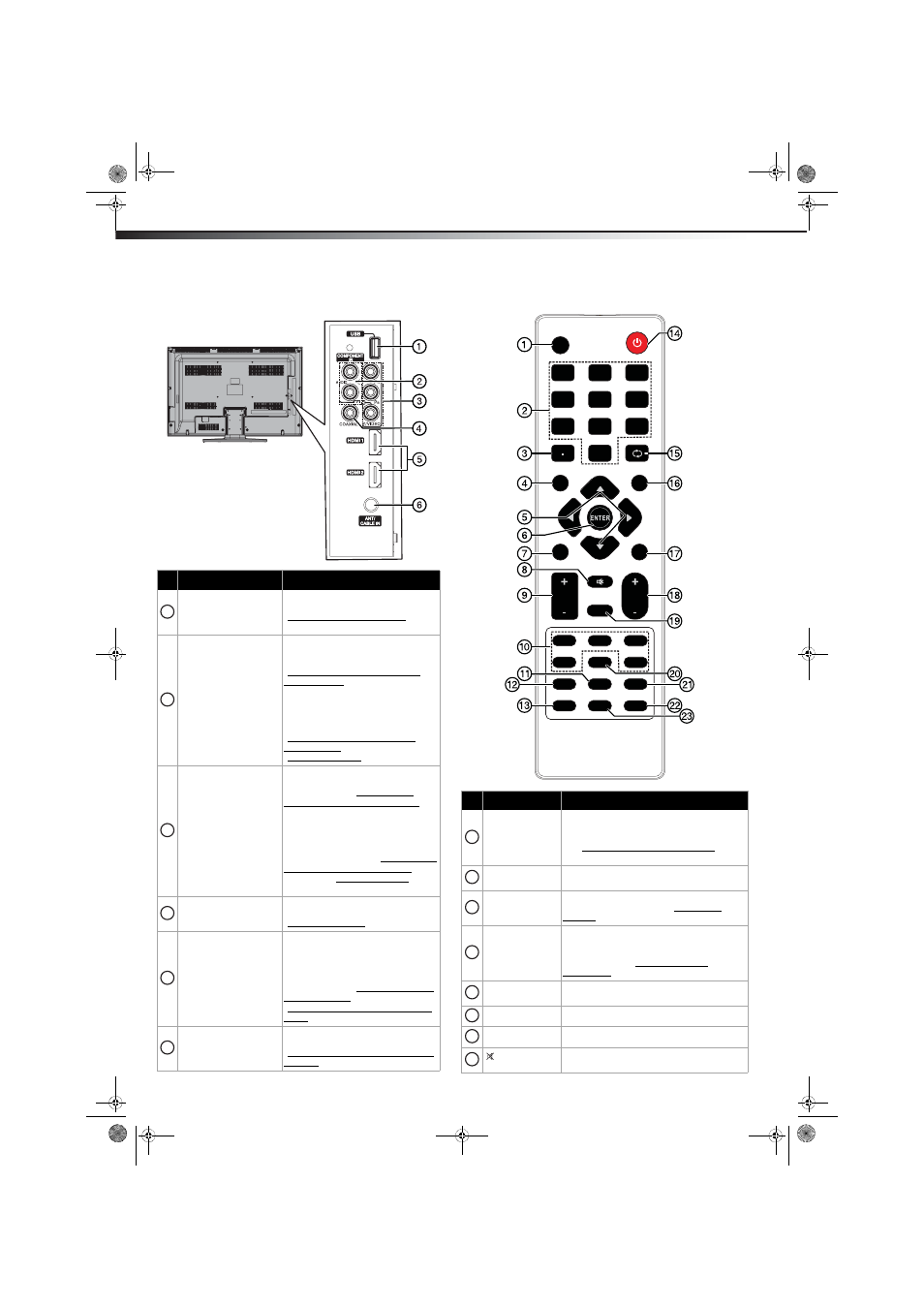

TV components DX-32L200A12/DX-37L200A12/DX-46L262A12
Side - Connections Remote control
# Item Description
USB port Connect a USB flash drive to this port.
For more information, see
“Connecting a USB flash drive” on
page 14.
L/R AUDIO
Connect the audio for a component
video device connected to the Y, P
B ,
P R jacks. For more information, see
“Connecting a component video
device (better)” on page 12.
OR
Connect the audio for a composite
video device connected to the AV IN
VIDEO jack. For more information, see
“Connecting a composite video
device (good)” on page 13, or see
“Connecting a VCR” on page 13.
COMPONENT IN Y, P B , P R
OR
AV IN VIDEO
Connect the video for a component
video device to these jacks. For more
information, see “Connecting a
component video device (better)” on
page 12.
OR
Connect a standard, composite video
device, such as a VCR, to this jack. For
more information, see “Connecting a
composite video device (good)” on
page 13, or “Connecting a VCR” on
page 13.
COAXIAL (digital
output)
Connect a digital audio amplifier to
this jack. For more information, see
“Using digital audio” on page 15.
HDMI1/HDMI2
Connect an HDMI device to one of
these jacks. An HDMI cable carries
both video and sound. You do not
need to make an audio connection
for an HDMI device. For more
information, see “Connecting a DVD
or Blu-ray player” on page 11, or
“Connecting an HDMI or DVI device
(best)” on page 12.
ANT/CABLE IN
Connect an antenna or cable TV to
this jack. For more information, see
“Connecting an antenna or cable TV
(no box)” on page 11.
1
2
3
4
5
6
# Button Description
INPUT
Press to open the INPUT SOURCE list, then
press or on the remote control to select
a video input source. For more information,
see “Selecting the video input source” on
page 17.
Numbers
Press to enter channel numbers and the
parental control password.
.
(Dot)
Press to enter a digital sub-channel number.
For more information, see “Selecting a
channel” on page 18.
INFO
Press to display TV status information, such
as the channel number, channel name (if
available), or signal source. For more
information, see “Viewing program
information” on page 18.
Press to navigate through the on-screen
menus and adjust settings.
ENTER Press to confirm selections or changes.
MENU Press to open the on-screen menu.
MUTE Press to mute the sound. Press again to
restore the sound.
INFO
MENU
MUTE
GUIDE
RECALL
EXIT
INPUT
POWER
VOL CH
ZOO M
COMP
HDMI
SLEEP
MTS/SAP
AUDIO
TV
CH-LIST
VGA
FAVORITE
1 1
7 7
4 4
2 2
8 8
5 5
0 0
3 3
9 9
6 6
VI DEO
PICTURE CCD
1
2
3
4
5
6
7
8
