COMMELL FS-A74 User Manual
Page 16
FS-A74 User’s Manual
14
2.4
2.4.1

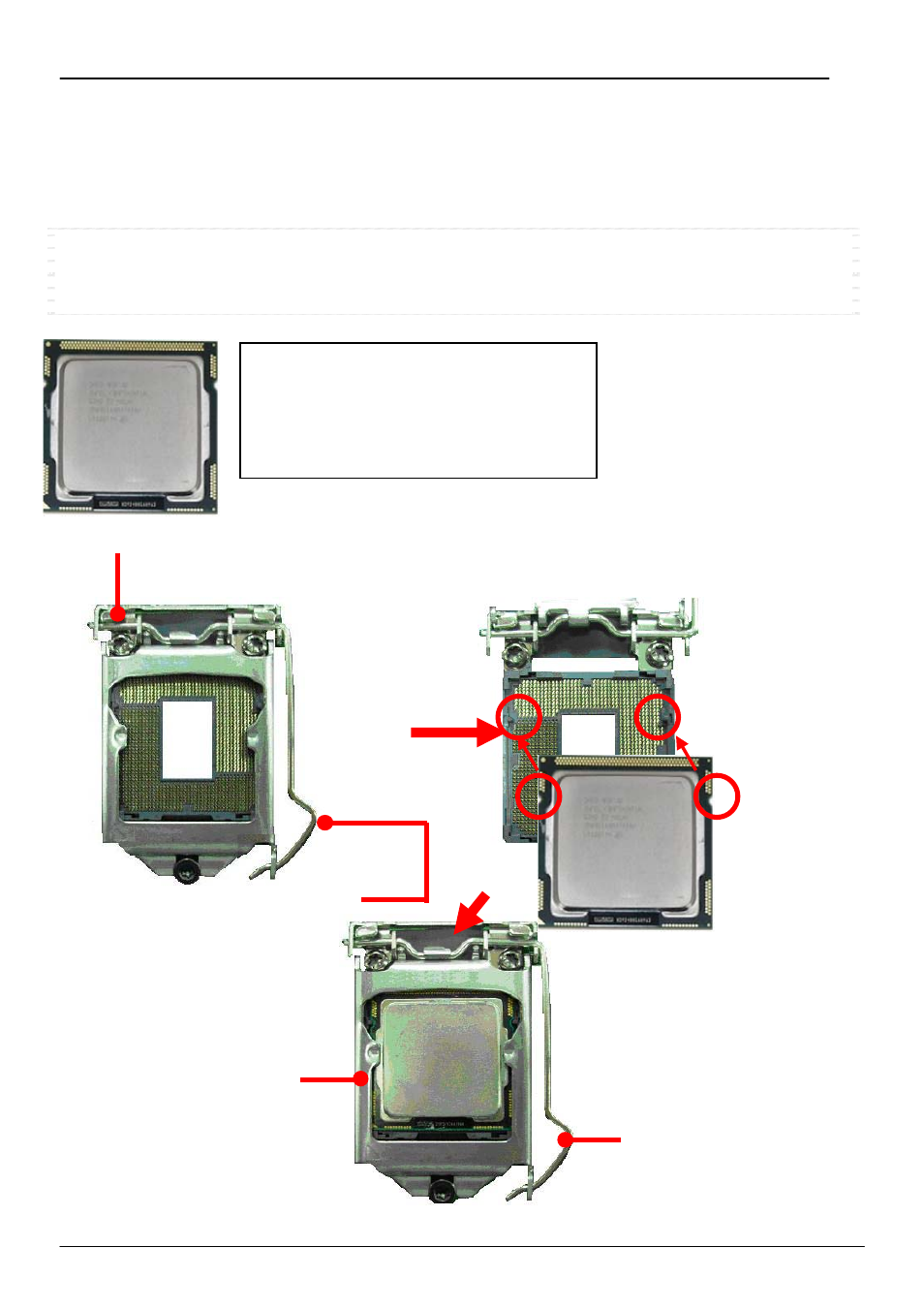

FS-A74 has a LGA1155 CPU socket onboard; please check following steps to install the
processor properly.
Attention If FS-A74 need RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.
2nd Generation Intel® Core™
I3/I5/I7/Pentium/Xeon® processor
Package type: 1155 pin FCLGA
FSB: 1066/1333MHz
1. Lift this bar
2. Uncover this plate
Checked point
3. Place the CPU on the top of
the pins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderly to avoid bending the pins
