UPFLOW/HORIZONTAL LEFT
CMPEV050U3 13-1/2 29-1/2 47-3/8 50,000
CMPEVO75U3 13-1/2 29-1/2 47-3/8 75,000
CMPEV100U4 17 29-1/2 47-3/8 100,000
CMPEV125U5 20-1/2 29-1/2 47-3/8 120,000
Save Energy, Save Money*

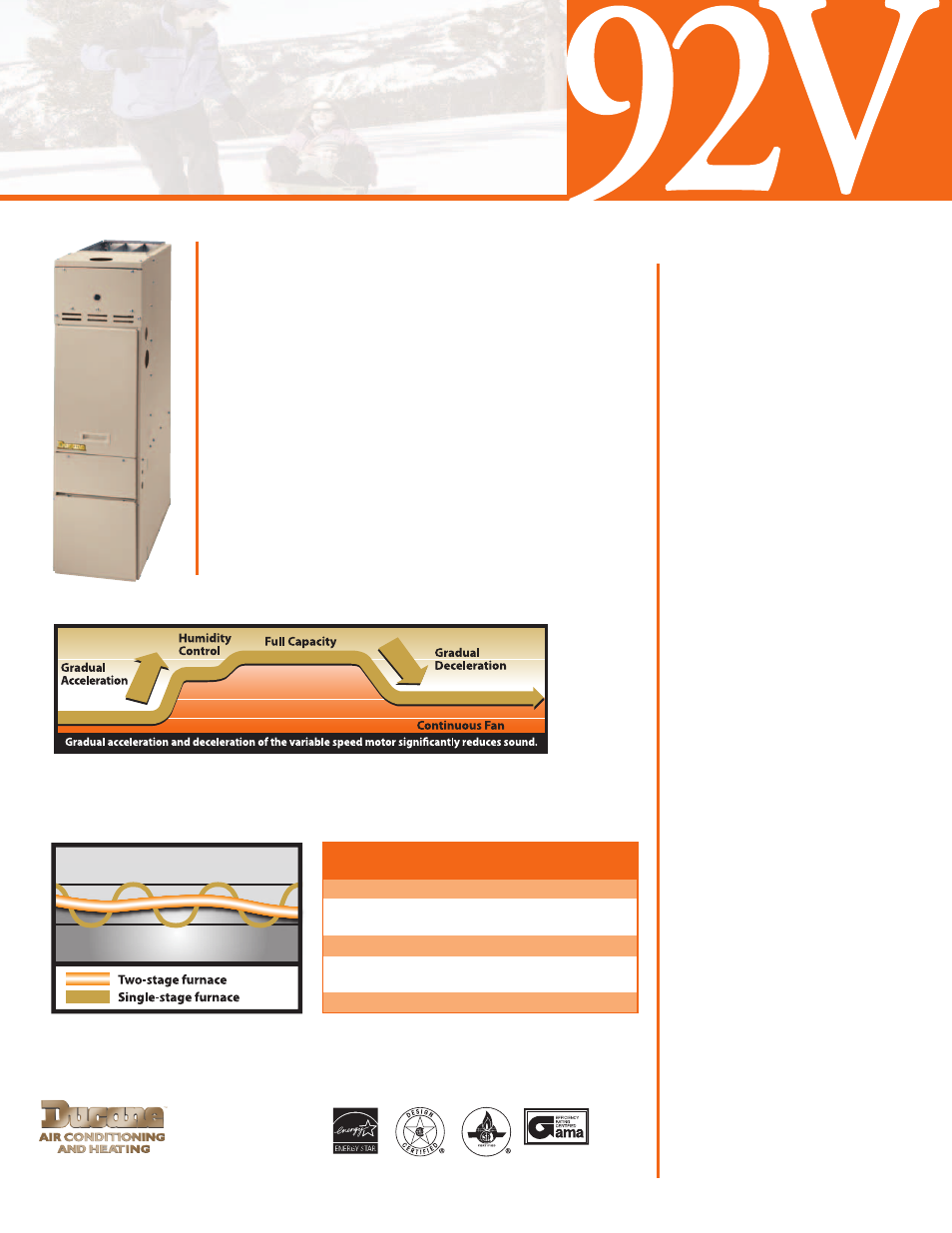

The Fits-All 92V furnace is equipped with a variable speed
blower motor and a two-stage gas control system for
maximum comfort. When used in conjunction with a two-
stage thermostat, the Fits-All 92V will only produce the
amount of heat necessary to keep the home comfortable,
helping minimize energy consumption for lower utility
bills. In “Fan On” mode the variable speed blower motor
can consume up to 2/3 less energy than a traditional PSC
blower motor, allowing you to optimize add-on indoor
air quality products year round.
Built To Last
Durable Crimp-Tite TM aluminized steel heat exchanger
resists corrosion with crimped seams for a seal that’s
more reliable than conventional welding. The hot surface
ignition system provides reliable, efficient heat when you
need it, with no more pilot lights to re-light.
Design Features
Up to 92.1% AFUE •
Two-stage heating inputs •
range from 50,000 – 125,000
Btuh
1-1/2 to 5-ton cooling capacity
•
Variable speed motor and two- •
stage gas control system help
achieve superior comfort and
even temperatures throughout
the home
Crimp-Tite
• TM aluminized steel
heat exchanger with lifetime
limited warranty** and 10-year
limited warranty on parts***
Upflow, horizontal left
•
application flexibility
Adjustable cooling air flow in
•
200 CFM increments
Operational with a single-stage
•
or two-stage thermostat
Humidifier and Electronic Air
•
Cleaner connections (115V) for
add-on IAQ accessories
Troubleshooting is fast and
•
accurate with interruption
immune diagnostics and
diagnostic sleeve
Gradual blower acceleration
•
and deceleration for quiet
operation
CSA-certified for U.S. and
•
Canada
High-Efficiency
Gas Furnaces
Form No. DCMPEV-300 (12/08) ©2008 Allied Air Enterprises Inc., a Lennox International Inc. Company Printed in the U.S.A.
D&S
www.ducanehvac.com
1-800-448-5872
A two-stage furnace can operate at high or low output
capacity to accurately and efficiently control home
comfort in relation to outside temperature and home
heating needs.
Temperature Control Comparison
Slow, gradual blower acceleration helps pre-heat the air stream during the heating season and pre-cool
during the cooling season, improving overall comfort. The blower-off cycle slowly decelerates, improving
energy efficiency year round.
Variable Blower Speed Operation — In Cooling
All specifications and illustrations subject to change
without notice and without incurring obligations.
Gas Furnace Unit Dimensions
* Actual cost savings may vary depending on personal
lifestyle, system settings, equipment maintenance, local
climate, actual construction, installation of equipment
and duct system, hours of operation and local utility
rates.
** Lifetime limited heat exchanger warranty applies to
registered equipment only (Standard 20 years with no
registration). See full warranty at www.alliedair.com for
terms, conditions and exclusions.
*** Warranty provides for a total of 10 years of limited
warranty coverage (Standard 5-year limited parts
warranty plus an additional 5-year limited extended
parts warranty). Warranty must be registered within
60 days to qualify for 10-year coverage. Unregistered
equipment defaults to 5-year coverage. See full
warranty at www.alliedair.com for terms, conditions
and exclusions.
Our gas efficiency AFUE ratings
are certified by the Gas Appliance
Manufacturers Association.
Not approved for use in mobile
home applications.
afue
Model Width Depth Height Heating
Number (Inches) (Inches) (Inches) Input
