3.0 MOS 3.0 MOS Combustible and Toxic Vapor Sensor/Transmitter Installation Combustible and Toxic Vapor Sensor/Transmitter Installation
3.1 Installation
C AUTION : Area must be declassified during installation.
3.1.1 Mounting
Mount the enclosure, using the two mounting holes provided see figure 4. Pay particular attention to the source and
density of the gas being detected when choosing the location.
C AUTION : Before connecting S/T to controller remove the power source to controller. Failure to do so may cause
damage to sensitive components.

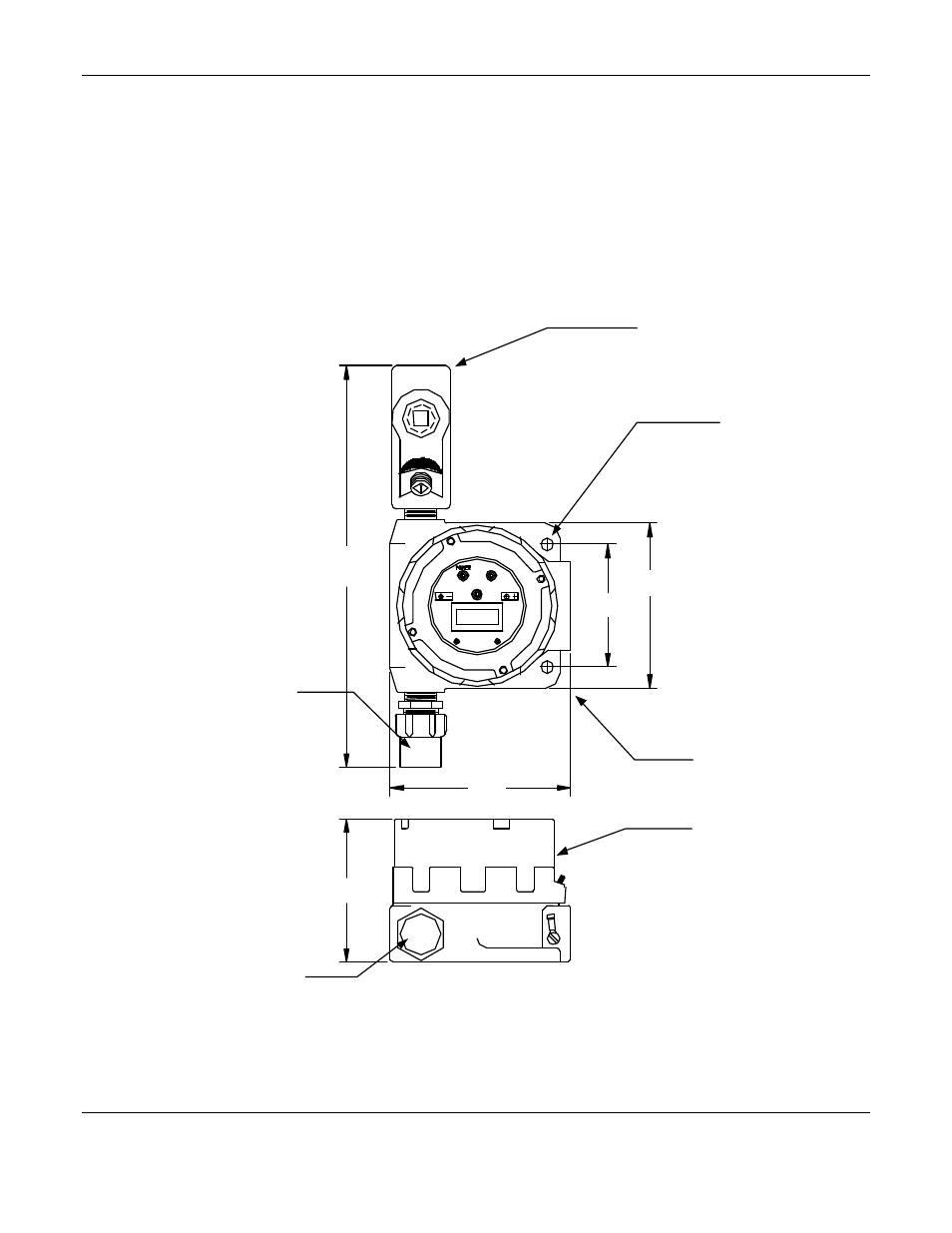

Figure 4: Mounting Dimensions of MOS Sensor/Transmitter
Sensor
Mounting Holes
2 places
Sensor/Transmitter
Enclosure Side View
Approx.
12”
Sensor/Transmitter
Enclosure Top View
Sensor
T OP V IEW
S IDE V IEW
Conduit Fitting
Typically: ½
″″ NPT female
5”
5.25”
3.875”
4.875”
