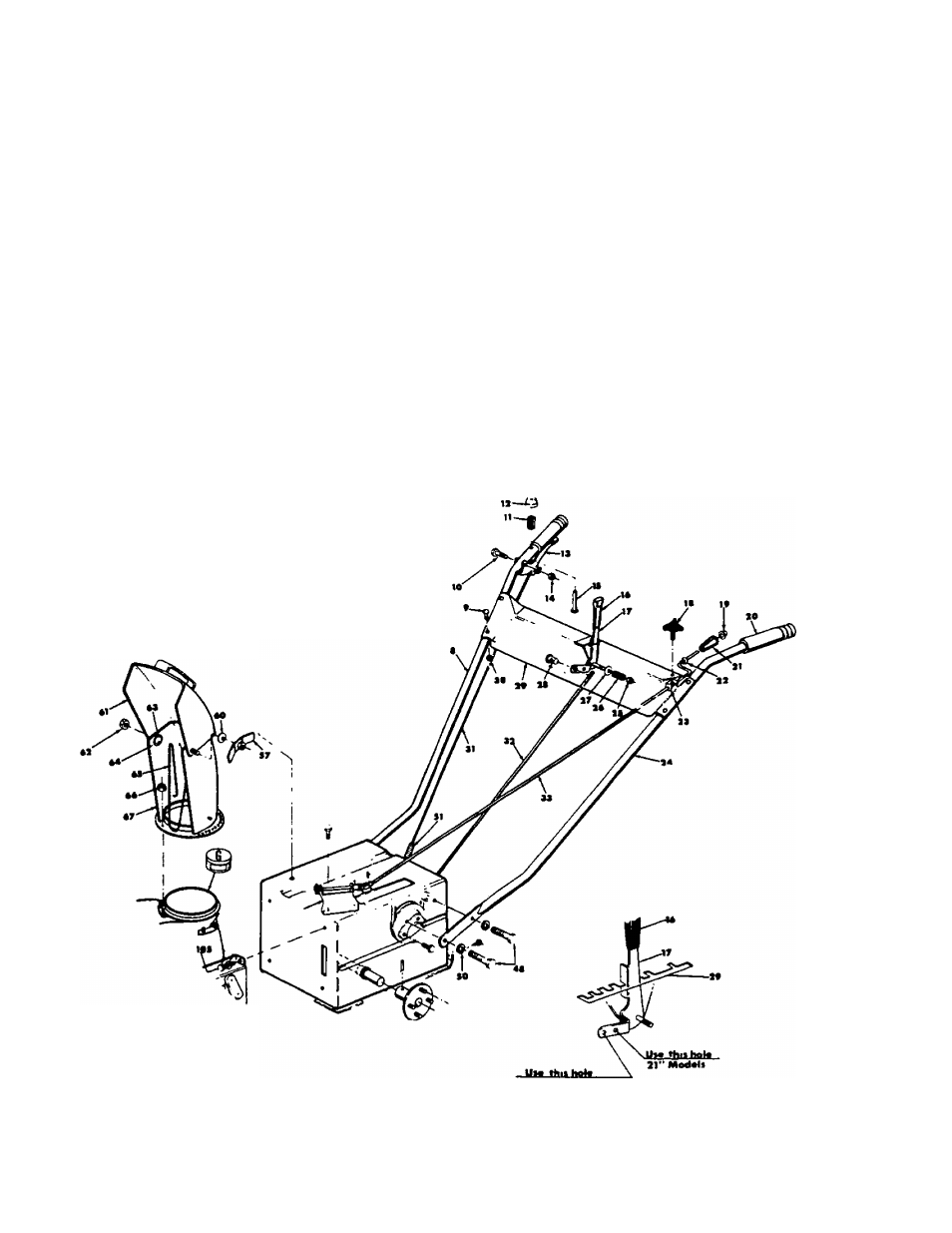

ASSEMBLY INSTRUCTIONS
Right hand (R.H.) and left hand (L.H.) are as observed
from the operating position.
1. Assemble chrome handles {Ref. Ncs. 8 and 24) to
the frame with four hex head cap screws %-16 x %
long and four lock washers DO NOT TIGHTEN.
2. Assemble handle panel (Ref. No. 29) to the handles
with the four carriage bolts ’/i-20x 1V4 Ig. and hex
locknuts
%-20
thd. Assemble handle panel so you
can read the instructions on the handle panel from
the operating position. LIFT HANDLE UP AS YOU
TIGHTEN ALL BOLTS AND NUTS ON THE HANDLE
ASSEMBLY.
3.
Move the shift lever (Ref. No. 17) on the handle
panel all the way forward into No. 5 position: Use
hole marked "26". Assemble the ferrule to the end
hole in the shift lever from the R.H. side. Screw in
the shifting rod (Ref. No. 32) into the ferrule. Move
the shift lever into the reverse (R) position. Lift the
transmission arm on the rear of the frame all the
way up. Adjust the shift rod by screwing it on or
out until the lower end fits into the transmission
arm. Secure with a cotter pin (Ref. No. 141).
4. CLUTCH GRIP. Place the threaded end of the lock*
out rod (Ref. No. 31) inside the spring. (Opposite
end of the hook.) Screw on the elastic stop not *A-2D
thread
approximately
to
1
inch.
Hook
the
bent
end of the rod into the eye of the clutch grip from
the right hand side. With the clutch in the released
position, hook the spring into the hole in the link
age arm. The spring and rod should be just tight
enough so the rod is not too loose. Adjust the elastic
stop nut if necessary.
5.
Chute Crank. Assemble the chute crank (Ref. No.
33) into the two holes in the handle panel being
sure the rod passes through the lock bracket (Ref.
No. 23). It may be necessary to loosen the black
knob (Ref. No. 18) on the handle panel. Posh the
rod all the way through and assemble it to the uni
versal joint with a cotter pin (Ref. No. 71).
6.
Remove the wing nut, washer and carriage bolt
5/16-18 x% Ig. from the chute assembly. Lift the
deflector and reassemble. If the deflector does not
pivot easily loosen the bolt and nut so it pivots free
ly. CAUTION: Release main clutch lever but
do not
pry down on lever. Excessive leverage will damage
idler bracket and cause misalignment of idler pul
ley. Belt problems will result.
