Winco 2FS Generators 2000 Watt Belt Drive - Manual (Page 10)

2095-0 0 60706-230

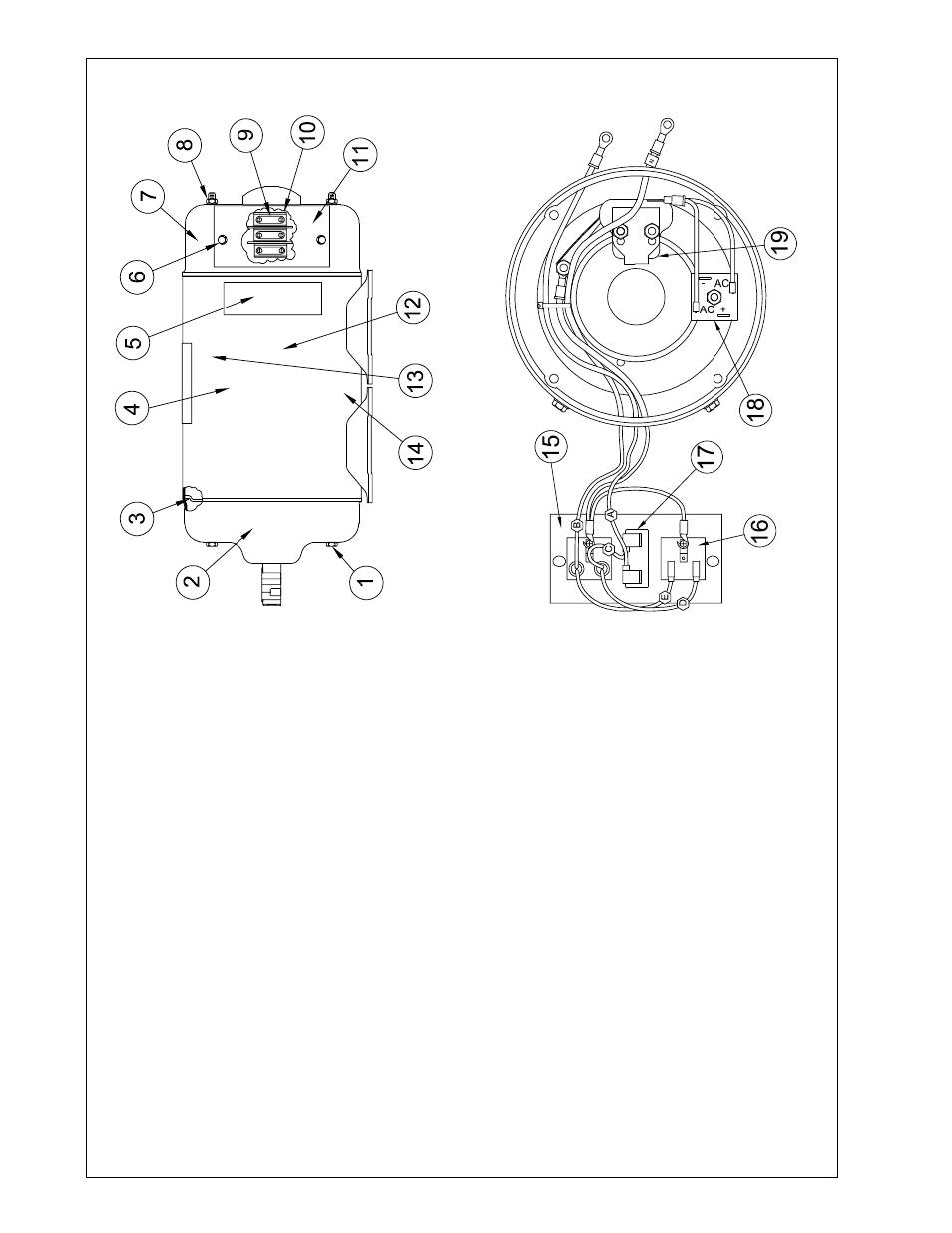

ILLUSTRATED PARTS LIST
REF # PART NUMBER QTY DESCRIPTION
20556-002 4 # 0-32 Thru Bolt
2 8929-000 End Bracket
3 7924-000 1 Baffle
4 6689-000 Field Shell & Base Assy.
5 6394-008 Hot Surface Decal
6 53644-000 4 Screw
7 6427-000 Output Shaft End Bracket
8 6372-000 4 Hex Nut
9 23607-000 3 AC Brush
0 59690-000 3 AC Brush Holder
60928-000 Cover Plate
2 6687-000 Field Shell & Coil Assy.
3 60925-000 Upper Field Coil
4 60925-00 Lower Field Coil
5 6093-000 Receptacle Cover Plate
6093-00 * Recpt. Cove Plate UL Model
6270-000 ** Cover Plate
6 60960-000 2 Receptacle
7 9286-05 * 5 Amp Circuit Breaker
18 53976-000 1 Rectifier
9 59688-000 3 Barrier Spacer
NI 23532-000 Spacer
NI 4384-07 Copper Strap
NI 40746-000 6 # 8-32 X 5/6 Screw
NI 236-000 Key
NI 6426-000 Armature & Bearing Assy.
NI 6497-002 UL Decal
NI Not Illustrated
* UL Model only
** 2FSM2P-/A3 only
