Tii 347 Series - Manual (Page 2)

P/N: 92223701
4.3 STATION PROTECTOR WIRING
(If equipped with angle driver module)
4.3.1 For sealed IDC termination type protectors; terminate
the Telco Side Cable by loosening the drive screw and pulling
up the driver and insert un-stripped Telco Side Cable in the
bottom ports (one conductor to Tip
‘T’ and one to Ring ‘R’)
until they are seated at the bottom of the ports. (See Figure 3.)
4.3.2 Insert un-stripped Customer Side Cable in the top ports
(one conductor to Tip
‘T’ and one to Ring ‘R’) until they are
seated at the bottom of the ports. (See Figure 3.)
4.3.3 Re-tighten the drive screw bring the driver down to
the protector base. (See Figure 3.)
4.3.4 Set the Customer Side Cables into the strain relief
cutouts on the sides of the Customer Side Cable
ports. (See Figure 3.)
4.3.5 Loop back unused station wire conductors and coil
around the station wire jacket or store in such a
manner as to prevent them from coming in contact
with protector terminals or bare wires.
5. Angle Driver Testing
Upper and Lower Port Connected
5.1.1 Feeder and subscriber wires must be segregated between
the upper and lower ports to facilitate isolation testing (see
Figure 4).
5.1.2 With Driver in the fully closed position, insert test clips into
tip/ring test port access holes located at top of driver. Perform
customary tests.
Testing Subscriber Connections
5.2.1 Loosen drive screw so driver is in the full upright
position.
5.2.2 Remove Telco wires from lower ports of driver.
5.2.3 Tighten drive screw so driver is in the full down position.
5.2.4 With Driver in the fully closed position, insert test clips
into tip/ring test port access holes located at top of driver.
Perform customary tests.

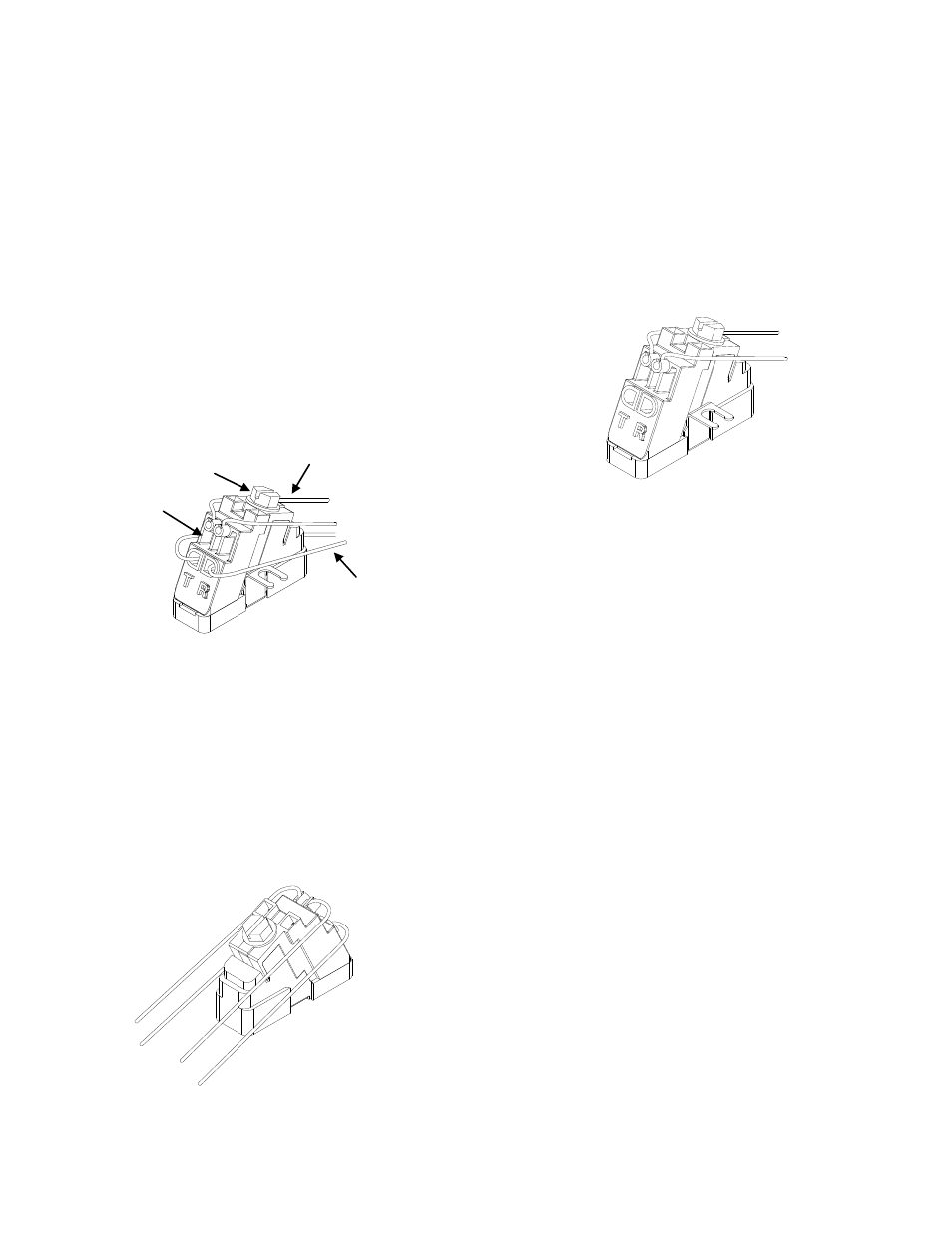

Figure 3
Strain
Relie f
Drive
Screw
Telco Side Cable
Customer Side Cable
Figure 4 Figure 4
Figure 5
