Tie Down Slotted Receiver with Cross Beam User Manual
Slotted receiver, With cross beam, Warnings

TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401
070814,A1293
Slotted Receiver
with Cross Beam
GalvX #86901 / Galvanized #86919
MAKE YOUR DOCK A DESTINATION
Instruction Sheet #08179
Warnings
Dock Sides Slotted With Cross Beam Receivers
are designed to be used on solid side panel style
aluminum or steel docks only. Please refer to
dock manufacturers product specifications to
determine if dock can accommodate receiver
installation plus the weight of accessories and
items/persons placed on them.
Caution should be used when operating electrical
tools near water. Failure to use caution can result
in injury or death.
GalvX Dual Coat Finish - #86901 Parts List
#
Part # Qty Description
1 86901-3A 1 Slotted Receiver (Complete Assembly)
2
13211
4 5/16"-18 x 3" Eye Bolt, Zinc
3
10637
4 5/16"-18 Flange Nut
4
10598
2 6" Nylon Lanyard
5 86901-2
1 Slotted Receiver Cross Beam Mounting Plate
6 86901-1A 1 4' Cross Beam
7
10841
4 3/8" Flat Washer, Zinc
8
10538
4 3/8" 16 x 1" Bolt, Zinc
9
10016
4 1/2" 13 x 1" Bolt, Zinc
10
10527
4 1/2" Flat Washer, Zinc
11
10645
4 1/2" Nyloc Hex Nut
Hot Dipped Galvanized Finish - #86919 Parts List
#
Part # Qty Description
1 86919-1A 1 Slotted Receiver (Complete Assembly)
2
13211
4 5/16"-18 x 3" Eye Bolt, Zinc
3
10637
4 5/16"-18 Flange Nut
4
10598
2 6" Nylon Lanyard
5 86919-2
1 Slotted Receiver Cross Beam Mounting Plate
6 86919-1A 1 4' Cross Beam
7
10841
4 3/8" Flat Washer, Zinc
8
10538
4 3/8" 16 x 1" Bolt, Zinc
9
10016
4 1/2" 13 x 1" Bolt, Zinc
10
10527
4 1/2" Flat Washer, Zinc
11
10645
4 1/2" Nyloc Hex Nu

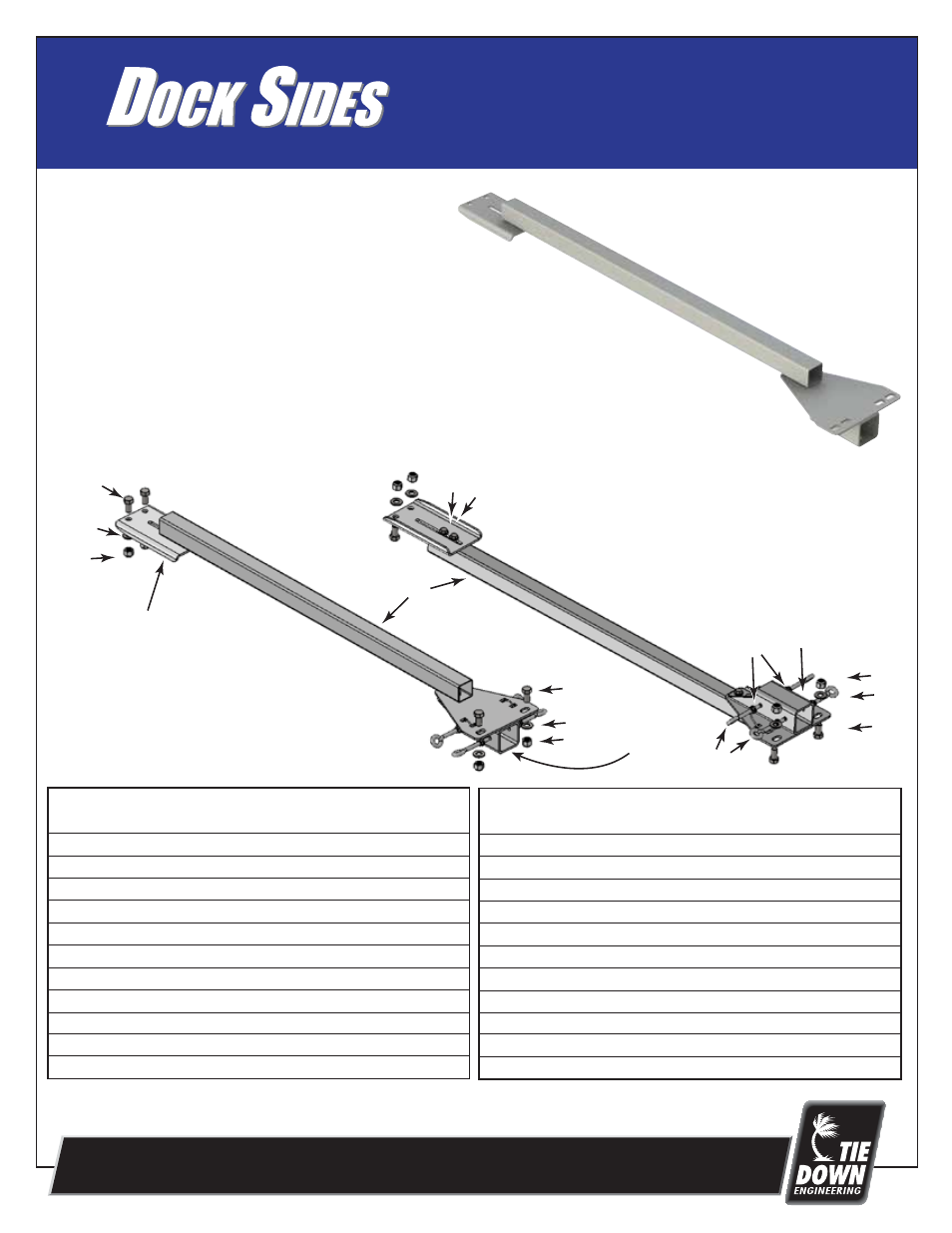

Top View
Bottom View
1
5
6
3
2
9
11
10
9
11
10
9
10
11
Tools Required:
Pencil, Tape Measure,
Cordless Drill, 1/8” & 1/2“ Drill Bit,
9/16” Wrench or Socket and
assistance will be needed
to secure cross beam.
4
7 8
