SilentKnight IP Communicator Configuration - Manual (Page 7)

Dm379-Iv2 7

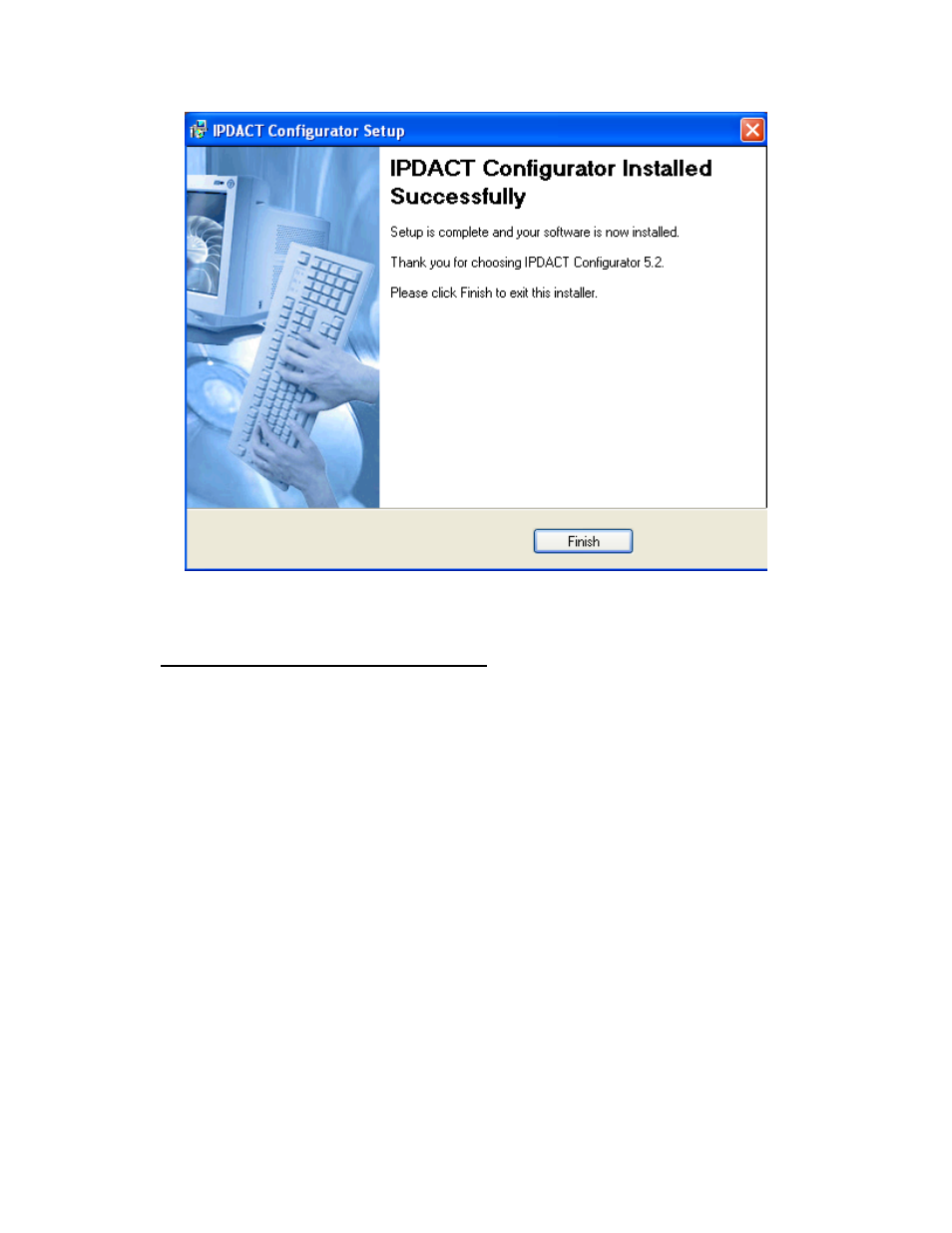

Fig. 7
3. Connection between PC and IPDACT
Once the IPDACT-Configurator has been correctly installed, you need to check
that connection between the PC and the IPDACT can be carried out. The steps
to execute are as follows:
STEP 1
Check that both the IPDACT and the PC are connected to the same Ethernet.
STEP 2
Check that the IPDACT has detected the Ethernet when the Ethernet connector
LEDs light up. Likewise, check that the Windows
TM
in the PC indicates the status
of the local area network connection is connected.
STEP 3
If the PC is connected to the IPDACT through a crossover Ethernet cable then
you must configure a static IP address, which is on the same network as the
IPDACT, in the PC. In any other case, go to STEP 5.
192.168.0.100 with mask 255.255.255.0. Configure the PC network interface with
an address pertaining to the IPDACT subnet which does not have any other
network device, i.e. any address 192.168.0.X with mask 255.255.255.0, where X
is a value between 1 and 254 with the exception of value 100 which is assigned
to the IPDACT.
