INSTALLING THE NB20E OR NB25E BRIDGE
3-2
3.2.1 Installing the Rack Mount Brackets
If the NB20E or NB25E will be rack mounted:
1. Remove the four screws (5, Fig. 3-1) holding the four rubber feet to
the bridge. This frees the top plastic housing (1) from the bridge.
2. Carefully remove the top plastic housing.
3. Remove the four screws (6) holding the bottom plastic housing (4) to
the bridge’s chassis.

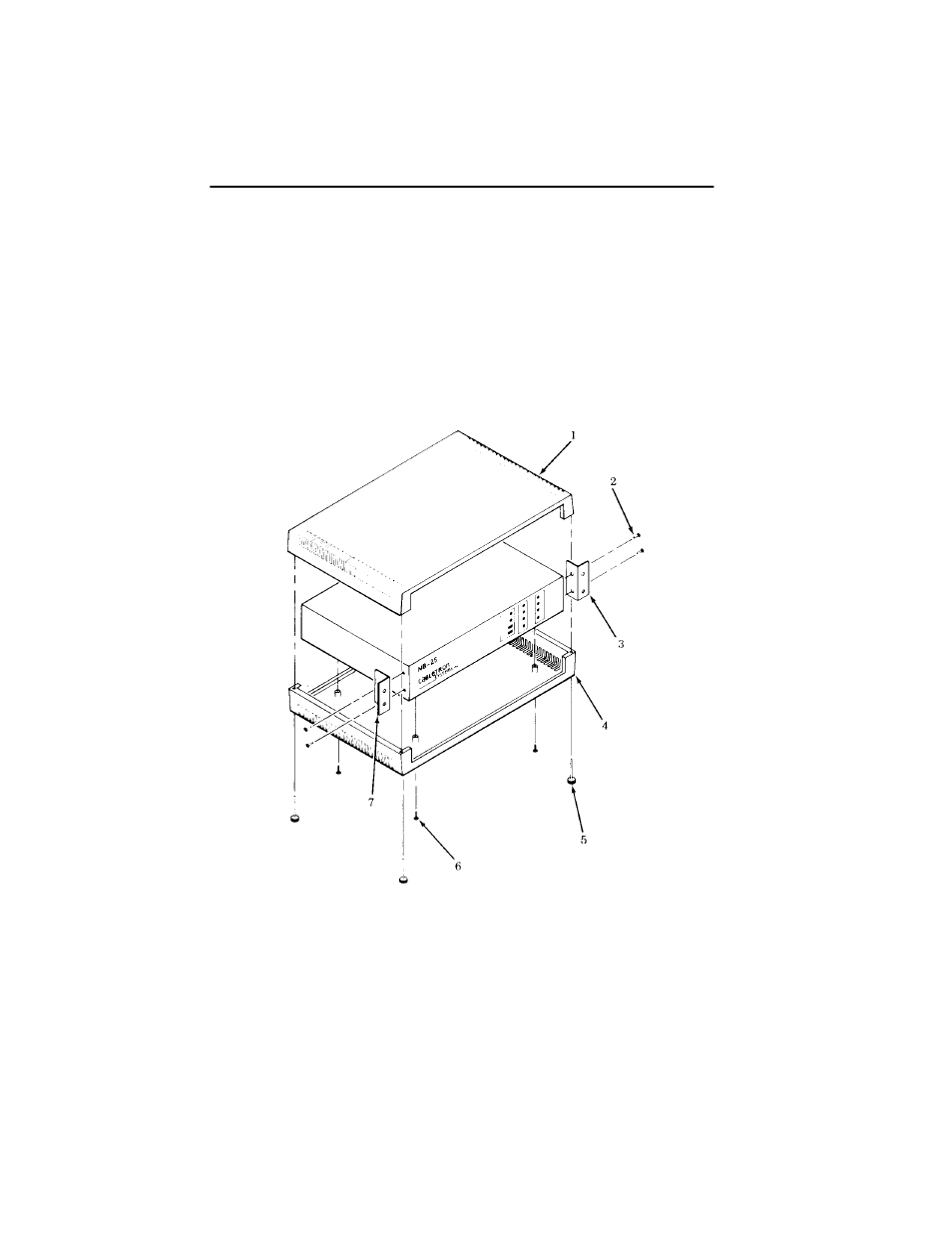

Figure 3-1 Rack Mount Brackets Installation
1. Top Housing 5. Screws (4)
2. Screws (4) 6. Screws (4)
3. Rack Mount Bracket 7. Rack Mount Bracket
4. Bottom Plastic Housing
