OFM 517-LX User Manual
Stimulus series executive leatherette chair, Assembly instructions

Assembly Notes:
During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
Models: 516-LX / 517-LX
Stimulus Series Executive Leatherette Chair
WEIGHT CAPACITY: 250 lbs.

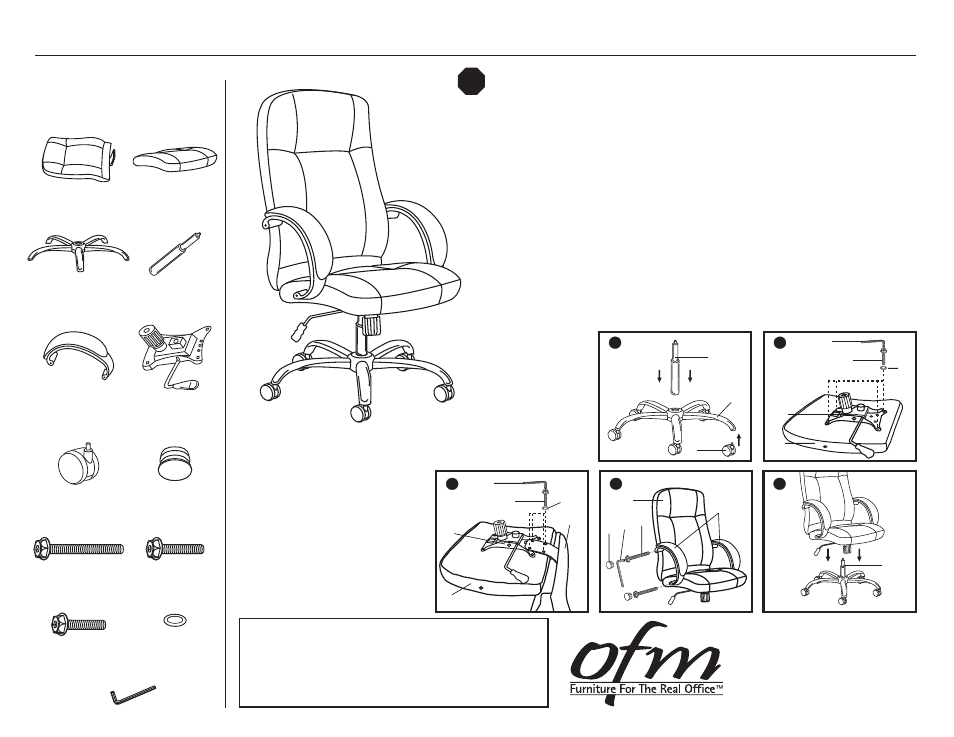

Parts Listing
919-362-4765 (fax)
www.ofminc.com
161 Tradition Trail, Holly Springs, NC, 27540
800-520-7471 (voice)
919-303-6389 (voice)
[email protected]
06.30.2014
E
Chair Arms
2 Units
F
Seat Mechanism
1 Unit
D
Gas Lift
1 Unit
C
Chair Base
1 Unit
J
6x30mm Back Screws
4 Units
I
6x50mm Arm Screws
4 Units
M
Allen Wrench
1 Unit
G
Casters
5 Units
H
Arm Caps
4 Units
2
L
K
M
B
F
B
Chair Seat
1 Unit
A
Chair Back
1 Unit
3
B
F
J
M
L
A
1
D
C
G
D
5
4
A
H M
I
E
STOP
Assembly Instructions
Please read all instructions before assembly.
Tools Needed: Allen Wrench included.
Step 1: Insert Casters (G) into Chair Base (C). Insert Gas Lift (D) into Chair Base (C).
Step 2: Place Chair Seat (B) upside-down on a level, non-abrasive surface and align
pre-drilled holes in Seat Mechanism (F), with the 4 holes in Chair Seat (B).
The thinner portion of seat should face the back. Insert four Mech Screws (K)
through the holes in the Seat Mechanism (F) and into the Chair Seat (B).
Tighten with Allen Wrench (M).
Step 3: Attach Chair Back (A) to Chair Seat (B) by inserting the bar on the bottom of
Chair Back into the back of the Seat Mechanism (F). Then secure by inserting
6x30mm Back Screws (J) through Washers (L) and tighten using the
Allen Wrench (M) provided.
Step 4: Attach Chair Arms (E) to Chair Back (A) and Chair Seat (B) using 6x50mm
Arm Screws (I) and tighten using the Allen Wrench (M). Cover screw holes with
Arm Caps (H).
Step 5: Take assembled chair body and place Seat Mechanism (F) onto Gas Lift (D),
and press down firmly to secure. Operate the Gas Lift Lever on the
Seat Mechanism (D) to be sure unit is working.
K
6x25mm Mech Screws
4 Units
L
6mm Washers
8 Units
