Aligning the Spectrum2 Printer
Alert:
Before starting the Alignment Utility,
position the front end of the printer on the
dotted line on the top of the drive bay.
(fig 1)

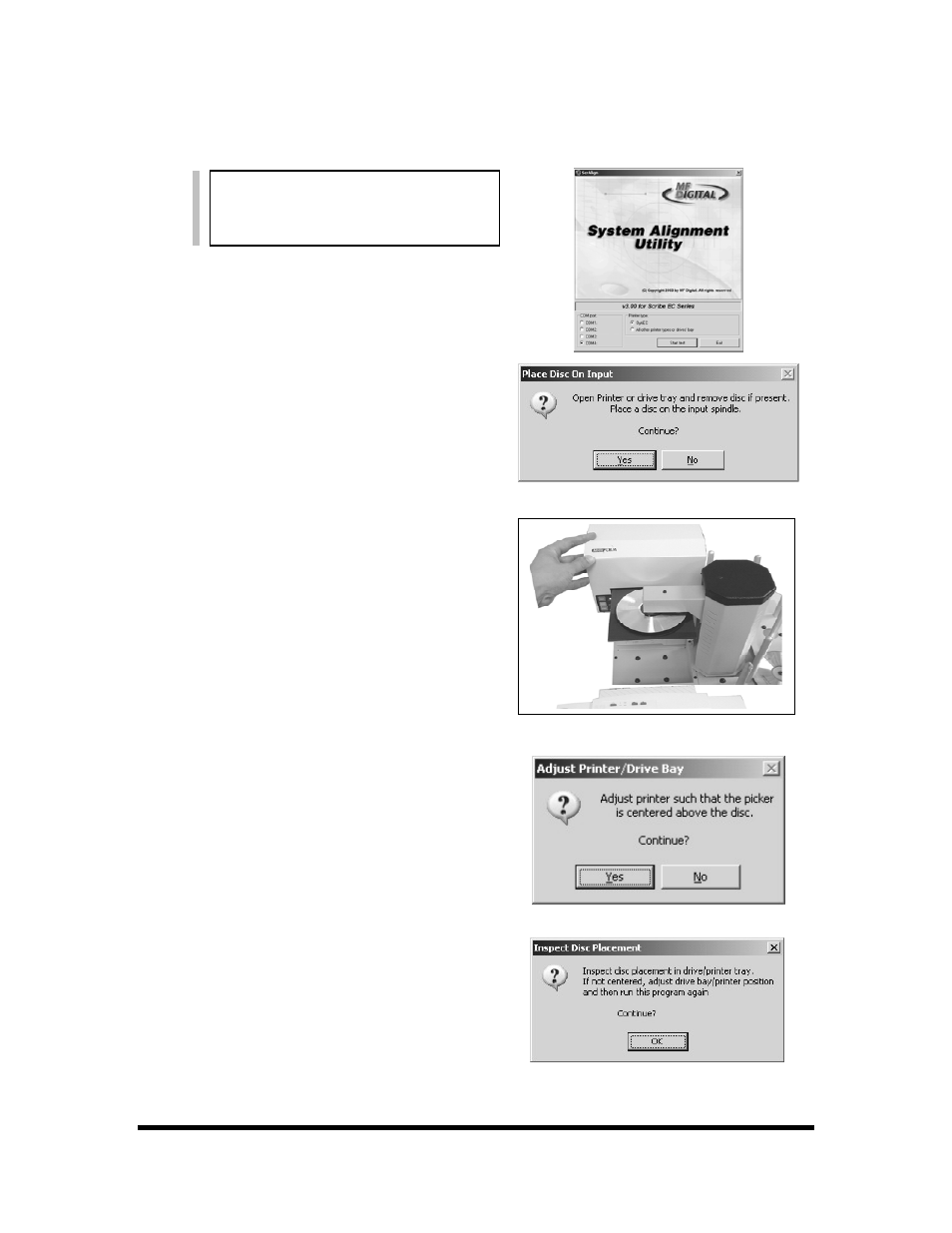

1. From your Start Menu Open the EC Alignment
Utility (fig. 1). It will be located in the folder
designated when you installed the alignment
utility. Choose corresponding COM Port
connected to the Spectrum 2 printer. Select all
other printer types and drive bay. Click on
Perform Test.
2.
Follow the instructions by opening the
Spectrum 2 printer tray, and Clicking Yes
(fig. 2). The picker arm will hover a disc over
the printer tray, observe the discs position and
make the adjustments to the printer (fig. 3).
3.
Click Yes when you are satisfied with your
adjustment (fig. 4).
4. The picker arm will then place the disc onto
the printer tray. Follow the on screen
instructions and click OK (fig. 5).
5. Once you are satisfied with the printer tray
alignment, tighten the thumb-screws located
on both sides of the printer.
(fig 2)
(fig. 3)
(fig. 4)
(fig. 5)
