Red wire sensor +12v power, Blue wire: neg. warn away, White wire: neg. trigger – Crimestopper Security Products CS-2004DC II User Manual

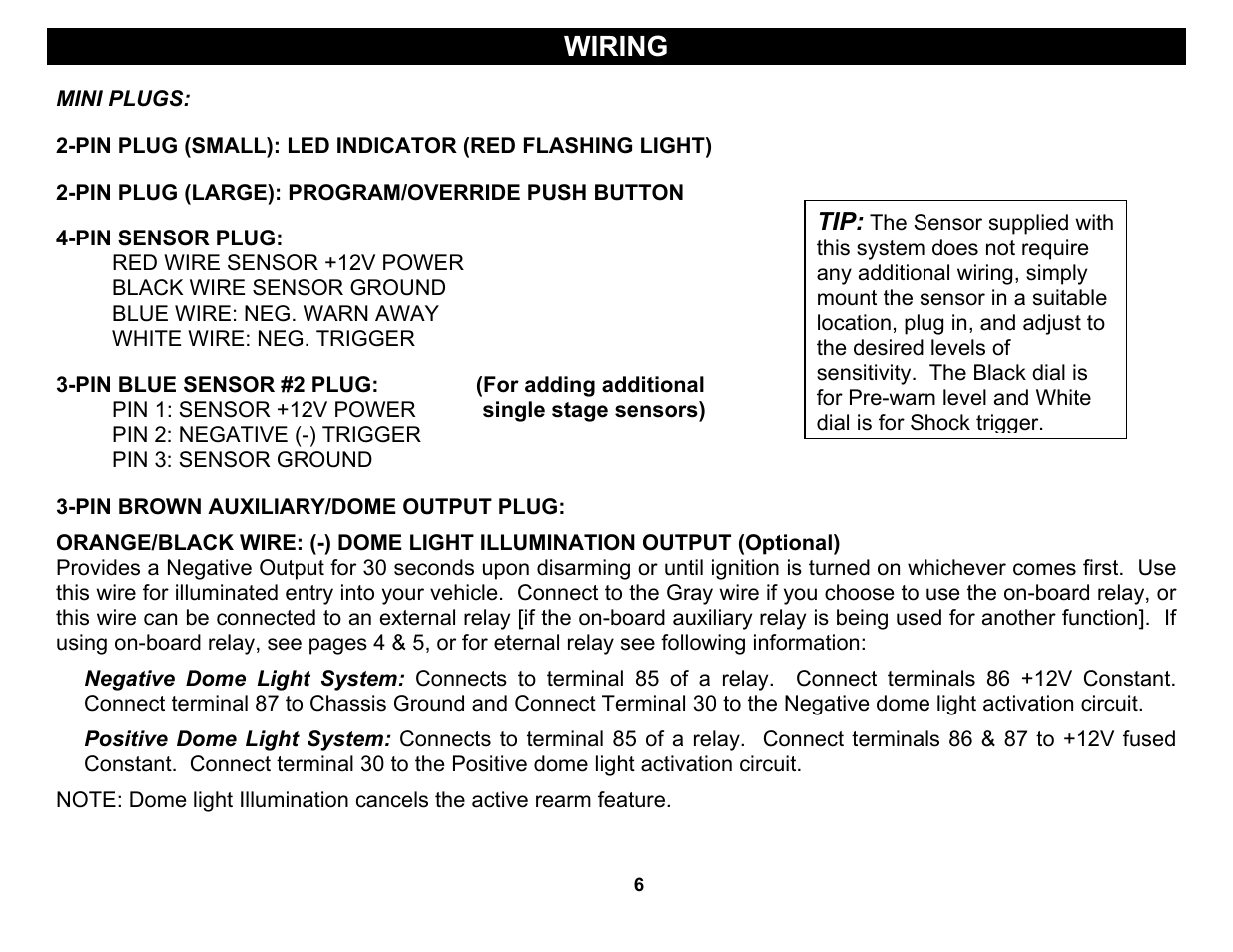

Page 6: Pin 1: sensor +12v power single stage sensors), Pin 2: negative (-) trigger, Wiring

Red wire sensor +12v power, Blue wire: neg. warn away, White wire: neg. trigger | Pin 1: sensor +12v power single stage sensors), Pin 2: negative (-) trigger, Wiring | Crimestopper Security Products CS-2004DC II User Manual | Page 6 / 24 Red wire sensor +12v power, Blue wire: neg. warn away, White wire: neg. trigger | Pin 1: sensor +12v power single stage sensors), Pin 2: negative (-) trigger, Wiring | Crimestopper Security Products CS-2004DC II User Manual | Page 6 / 24
