Mini Fuses Usage
44
Chassis Control
Module Ignition
45 Spare
46 Rear Drive Module
47
Lift Gate Module
Logic
48
Instrument Panel
Fuse Block Ignition
49 Heated Seat – Front
50
Chassis Control
Module
51
Engine Control
Module
52 Rear Vision Camera
Midi Fuse Usage
53
Electric Power
Steering
Micro
Relays
Usage
54 Rear Defogger
55 Cooling Fan Low
56
Head Lamp
High Beam
57 Cooling Fan Control
58
Wiper On/Off
Control
59
Air Conditioning
Compressor
60 Wiper Speed
61 Fog Lamp
62 Engine Control
63 Starter
64 Run/Crank
Mini Relays Usage
65 Cooling Fan High
66 Brake Booster
Instrument Panel Fuse
Block

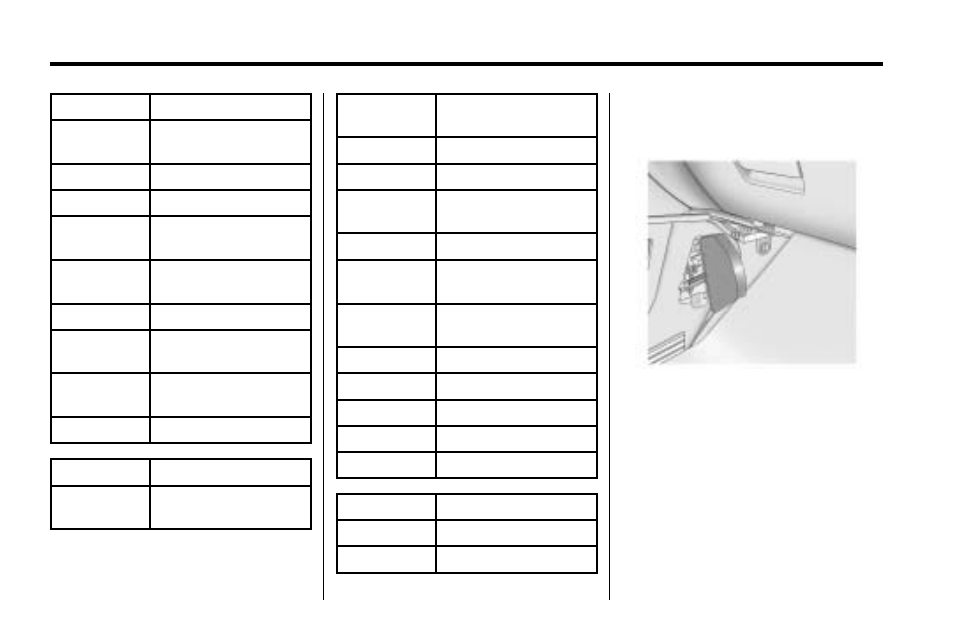

The instrument panel fuse block is
located on the passenger side panel
of the center console. To access the
fuses, open the fuse panel door
from the passenger side by pulling
it out.
To reinstall the door, insert the tabs
on the bottom of the door into the
console first, then push the door
back into its original location.
