TUNING THE TV SET TO THE VIDEO PLAYBACK CHANNEL
The adjustments described on this page are not necessary,
if the VTR is connected to the TV set via the Video/Audio
output sockets.

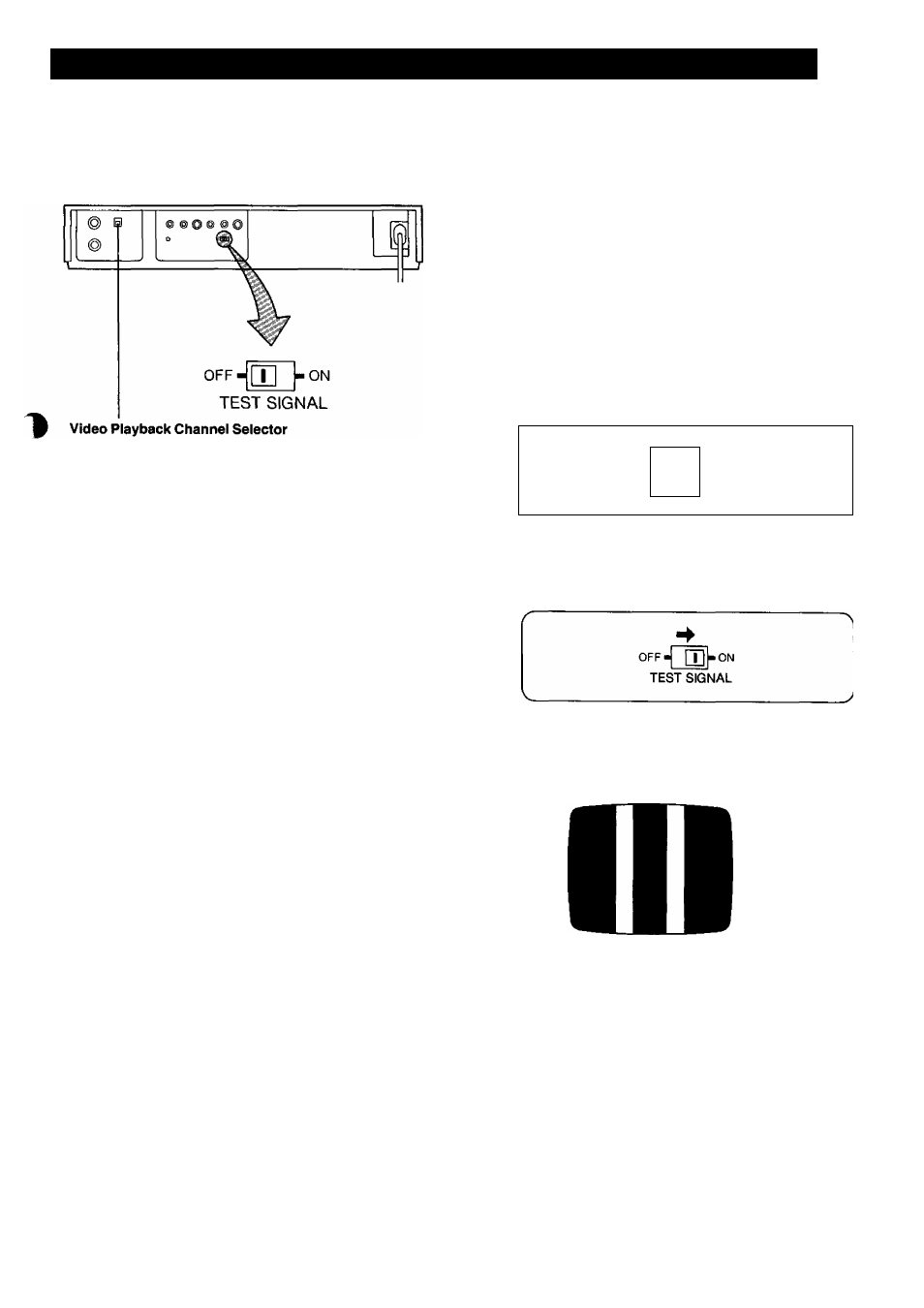

This switch is used to select the Video Playback channel
which is not occupied with any TV station (2 or 3).
O Turn the TV set on and select the AV programme po­
sition or another programme position that is not occu­
pied by any TV station.
0 Press the VTR On/Off Switch to turn the VTR On.
(FRONTSIDE)
VTR
□
•The corresponding indicator lights up.
0 Press the VTR/TV Selector to “VTR” position.
(FRONT SIDE)
r
1
VTR/TV
___________ J
1
•VTR Indicator will appear in the Multi-Function Dis­
play.
0 Set the Test Signal Switch to “On”.
0 Tune the selected programme position (channel) of the
TV set to VHF channel 2 or 3.
Confirm on your TV set that the received test pattern is
as shown below.
0 Set the Test Signal Switch to “Off”. Your TV is now
ready to receive the RF output signal from the VTR.
OFF-[T| -ON
L.
TEST SIGNAL
0
To check, play back a pre-recorded tape and confirm
picture quality.
0
In some cases, further fine tuning is required in order to
get optimum colour and sound. Note that the test signal
is only a guide.
