BATTERY REPLACEMENT AND STORAGE
Contact your dealer or call the number in this manual for information on battery replacement.
Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Service
the battery under the supervision of personnel knowledgeable of batteries and their precautions.
Keep unauthorized personnel away from batteries.
CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.
CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in a fire,
as it may explode. Follow all local ordinances regarding proper disposal of batteries.
CAUTION! Do not open or mutilate the batteries. Release electrolyte is harmful to the skin and eyes
and may be toxic.
CAUTION! A battery can present a high risk of short circuit current and electric shock. Take the
following precautions before replacing the battery:
1. Remove all watches, rings or other metal objects.
2. Only use tools with insulated handles.
3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.
4. Wear rubber gloves and boots.
5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of
ground. CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK! The
likelihood of such shock will be reduced if such grounds are removed during installation and
maintenance (applicable to a UPS and a remote battery supply not having a grounded circuit).

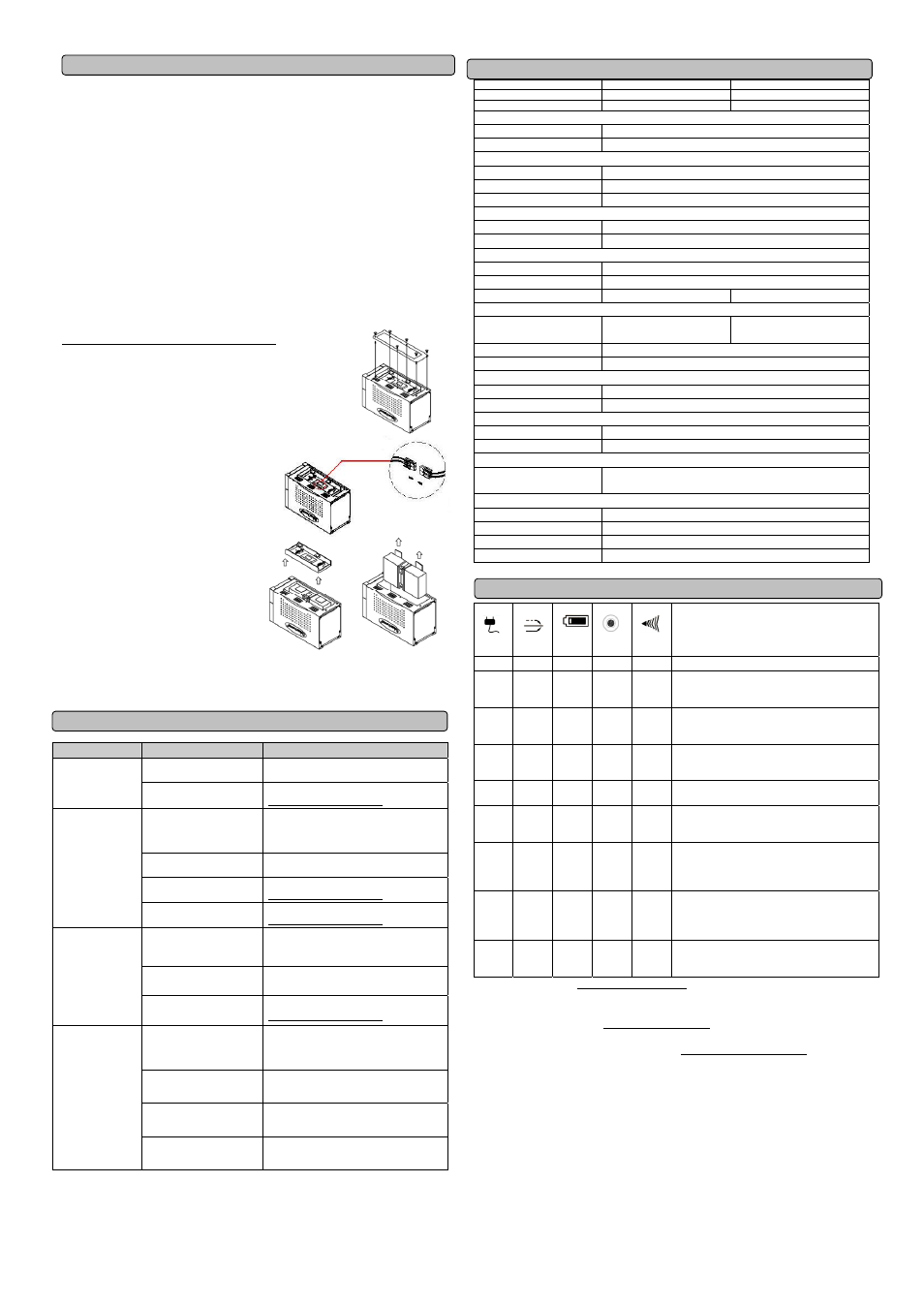

BATTERY REPLACEMENT PROCEDURE:
1. Turn off and unplug all connected equipments.
2. Turn the UPS off and unplug it from the AC power source.
3. Carefully turn the UPS upside down. Remove the 6 retaining screws
and the cover.
4. Disconnect the black and red wires from the
battery set.
5. Remove the battery protection cover and take out
the battery set from the compartment.
6. Slide a new battery pack into the unit.
Assemble the battery protection cover, cable,
screws in the reverse sequence of above
steps.
REMINDER: Recharge the unit for 4 – 8 hours to
nsure the UPS performs expected runtime e
STORAGE:
First turn off your UPS and disconnect its power
cord from the wall outlet. Disconnect all cables connected to the UPS to avoid battery drain. To store
your UPS for an extended period, cover it and store with the battery fully charged. Recharge the
battery every three months to insure battery life. If the battery remains uncharged for an extended
period of time, it may suffer permanent loss of capacity.
TROUBLE SHOOTING
Problem Possible Cause Solution
Batteries are not fully
charged. Recharge the battery by leaving the UPS
plugged in.
The UPS does not
perform expected
runtime.
Battery is slightly worn out.
Contact CyberPower Systems at
[email protected]
The on/off switch is
designed to prevent
damage by rapidly turning it
off and on.
Turn the UPS off. Wait 10 seconds and then
turn the UPS on.
The unit is not connected to
an AC outlet. The unit must be connected to a 220-240V
50/60Hz outlet.
The battery is worn out.
Contact CyberPower Systems at
[email protected]
The UPS will not
turn on.
Mechanical problem.
Contact CyberPower Systems at
[email protected]
Circuit breaker is tripped due
to overload Turn the UPS off and unplug at least one
piece of equipment. Wait 10 seconds, reset
the circuit breaker and then turn the UPS on.
Batteries are discharged
Allow the unit to recharge for at least 4
hours.
Outlets do not
provide power to
equipment
Unit has been damaged by
a surge or spike. Contact CyberPower Systems at
[email protected]
The serial/USB cable is not
connected.
Connect the serial/USB cable to the UPS
unit and an open serial port on the back of
the computer. You must use the cable that
came with the unit.
The serial/USB cable is
connected to the wrong
port.
Try another serial/USB port of your
computer.
The unit is not providing
battery power.
Shutdown your computer and turn the UPS
off. Wait 10 seconds and turn the UPS back
on. This should reset the unit.
PowerPanel ®
Business Edition is
inactive (all icons
are gray).
The serial cable is not the
cable that was provided with
the unit.
You must use the cable included with the
unit for the software.
TECHNICAL SPECIFICATIONS
Model PP1500E PP2200E
Capacity (VA) 1500VA 2200VA
Capacity (Watts) 1000W 1600W
Input
Input Voltage Range 220-240Vac
Frequency Range 50/60 Hz
Output
On Battery Output Voltage Pure Sine Wave at 230Vac +/- 7%
On Battery Output Frequency 50/60 Hz
Overload Protection On Utility: Circuit Breaker, On Battery: Internal Current Limiting
Surge Protection and Filtering
Lightning / Surge Protection Yes
Network Protection RJ45 (One In/One Out)
Physical
Total # of UPS Receptacles (8) IEC 320 C13
Maximum Dimensions 42.0cm*18.0cm*23.7cm
Weight (Kg) 25.4 31.1
Battery
Sealed Maintenance Free
Lead Acid Battery
12V / 7AHx4 12V / 9AHx4
User Replaceable Yes, Hot Swappable Battery Pack
Typical Recharge Time 8 Hours
Warning Diagnostics
Indicators Power On, Using Battery, AVR, Load Level, Battery Level
Audible Alarms On Battery, Low Battery, Overload
Environmental
Operating Temperature +32 °F to 95°F ( 0°C to 35°C )
Operating Relative Humidity 0 to 95% NON-CONDENSING
Communication
PowerPanel
®
Business
Edition Software
Windows 98/ME/2000/NT/XP, Server 2003
Management
Auto-Charger Yes
Auto-Restart Yes
USB Interface Yes
SNMP/HTTP Network Optional
DEFINITIONS FOR ILLUMINATED LED INDICATORS
Power
On
AVR
Using
Battery
Circuit
Breaker Alarm
Condition
On Off Off Set Off Normal
On
Slow
flash
Off Set Off
AVR- Max. boost 13% of input voltage for output
regulation while input voltage is from 5% to 14%
under nominal.
On
Rapid
flash
Off Set Off
AVR- Max. boost 26% of input voltage for output
regulation while input voltage is from 15% to 26%
under nominal.
ON On Off Set Off
AVR- Max. buck 10% of input voltage for output
regulation while input voltage is from 7% to 22%
over nominal.
Off Off On Set
Two
Beeps
Utility Failure- The UPS is providing battery
power to the Battery-Power Supplied outlets.
Off Off On Set
Rapid
Beeps
Utility Failure- The UPS is providing battery
power. Rapid beeps indicate the battery will run
out of charge within a few minutes.
On/Off
On/ Off
/Flash
On/Off Set
Long
Beep
Overload- Turn the UPS off and unplug at least
one piece of equipment from the UPS. Wait 5
seconds, reset the circuit breaker and restart the
UPS.
Off Off On Up
Long
Beep
Overload- Turn the UPS off and unplug at least
one piece of equipment from the UPS. Wait 5
seconds, reset the circuit breaker and restart the
UPS.
Off Off Off Set Off
Surge Protection Malfunction- Power surge has
damaged the unit. Please contact CyberPower
Systems.
For more information, visit eu.cyberpowersystems.com or contact
CyberPower Systems B.V. Flight Forum 3545, 5657DW Eindhoven, The Netherlands
[email protected] Tel: +31 (0)40 2348170, E-MAIL:
CyberPower Systems Inc. (USA) 4241 12th Avenue East Suite 400 Shakopee, MN 55379, U.S.A.
[email protected] Tel: +1 952 4039500, Fax: +1 952 4030009, E-MAIL:
Entire contents copyright ©2004 CyberPower Systems B.V., All rights reserved. Reproduction in
whole or in part without permission is prohibited. PowerPanel ® ® and PowerPanel Plus are
trademarks of CyberPower Systems (USA) Inc.
CyberPower warrants to you, the original purchaser, that CyberPower UPS will be free from defects
in design, assembly, materials and workmanship for two years ( battery is only one year) from the
date of original purchase. Any warranty services, please contact your local dealers or distributors
