Hand Control Unit MODEL 2087 TURNTABLE SERIES
18 © EMC TEST SYSTEMS, L.P. – OCTOBER 2002
REV C – PN 399233

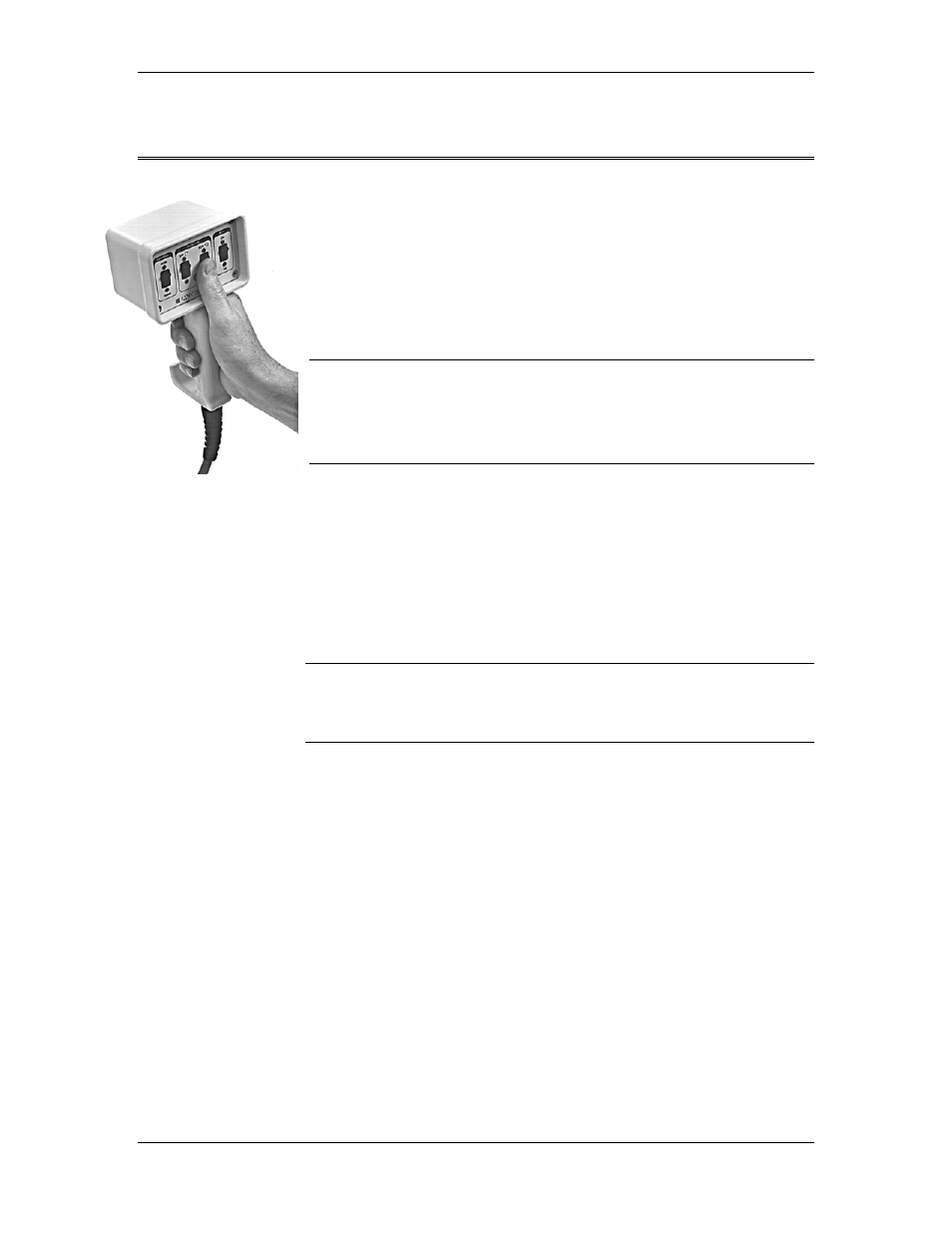

HAND CONTROL UNIT
To connect the Hand Control Unit (HCU), remove the connector
cap on the motor base. Plug the cable receptacle from the hand
control unit into the electrical enclosure and screw connectors
completely together. The HCU is now ready to operate. Be sure to
coordinate use of the unit with the operator of the Model 2090
Positioning Controller.
CAUTION Do not plug the Hand Control Unit into the motor base
while that device is in operation. Coordinate with the operator of
the Model 2090 Positioning Controller before plugging in, using,
or unplugging.
To allow the HCU to operate, push the control switch from MAIN
to HAND. When the HCU is selected, the Model 2090 Positioning
Controller is overridden until control is returned from the HCU. If
the Model 2090 Positioning Controller is left on while the HCU is
used, the Model 2090 Device Controller records all changes in
position.
CAUTION Do not push the CW and CCW buttons at the same
time. Be sure that the motor is completely stopped before reversing
direction with the hand control unit.
When you are ready to change to automated testing, toggle the
control switch from HAND to MAIN.
