2: PHYSICAL INSTALLATION
Entry Sentry may be mounted both on a door
frame, or onto facing walls of a hallway.
Door mount opposite from the door swing.
Wall mount on corridor walls.
 See diagram at right for mounting plate detail.
 Hang the Transmitter and Receiver sub-
assemblies with LEDs facing across the path of
travel. (Optical Alignment Required:

1°)
 Door/ Hallway Width 30” min. - 80” max.
 Use mounting plate as Template for holes.
 Set base of mounting plate 5” off floor, check for
level and plumb.
 Use a punch or scribe to mark the 5 mounting
hole locations on surface at 7”, 33”, and 58” from
floor.
 Mark Wiring Hole center at 56 3/4” from floor.
 Set mounting plate aside.
 Drill 5 mounting holes as needed for your
mounting surface.
(max. dia. 9/64”)
 Drill a 1” wiring hole.
 De-burr Wiring Hole with file to prevent damage
to wiring insulation.
 Install mounting plate using appropriate
hardware for your mounting surface.
 Repeat for second mounting plate.
3: ASSEMBLY
 Pull Wiring through each mounting
plate’s hole.
(see Connection Planning
Table below)
 Power, Control and Monitoring
wires on Receiver side.
 Power wires on Transmitter side.
 Hang Transmitter and Receiver
electronics on each mounting plate so
that LEDs face each other across the
portal that users will pass through.
 Fasten with a 1/4” Hex Standoff
at top and bottom of each electronics
package.
 Install Lower Covers and fasten with
screws removed during disassembly.
(Middle screw will be removed after setup to
complete Upper Cover installation)
 Reconnect Key Switch/LED
Connector from Receiver Upper
Cover
(Red wire to left)
 Leave Receiver Upper Cover off until
Wiring and Setup are complete.
CONNECTION PLANNING T
ABLE
INPUTS
(N/O Shared Gnd)
# of Wires
Valid “A” Card 2 (22 ga.)
Valid “B” Card 2 (22 ga.)
Bypass 2 (22 ga.)
Door Switch 2 (22 ga.)
Power
12-24 Vdc @
500mA
Sender 2
Receiver/Control 2
Mag Lock Relay 2
Alarm Relay 2
Door Relay 2
“A” Passage Complete 2
“B” Passage Complete 2
OUTPUTS Form C 1 Amp
0"
2"
28"
53"
3/4"
3/4"
7"
33"
58"
MOUNTING
BRACKET
5X 9/64" DIA.
51 3/4"
1.00" DIA.
WIRE PASS
THROUGH HOLE
56 3/4"
MOUNTING
BRACKET
HOLES

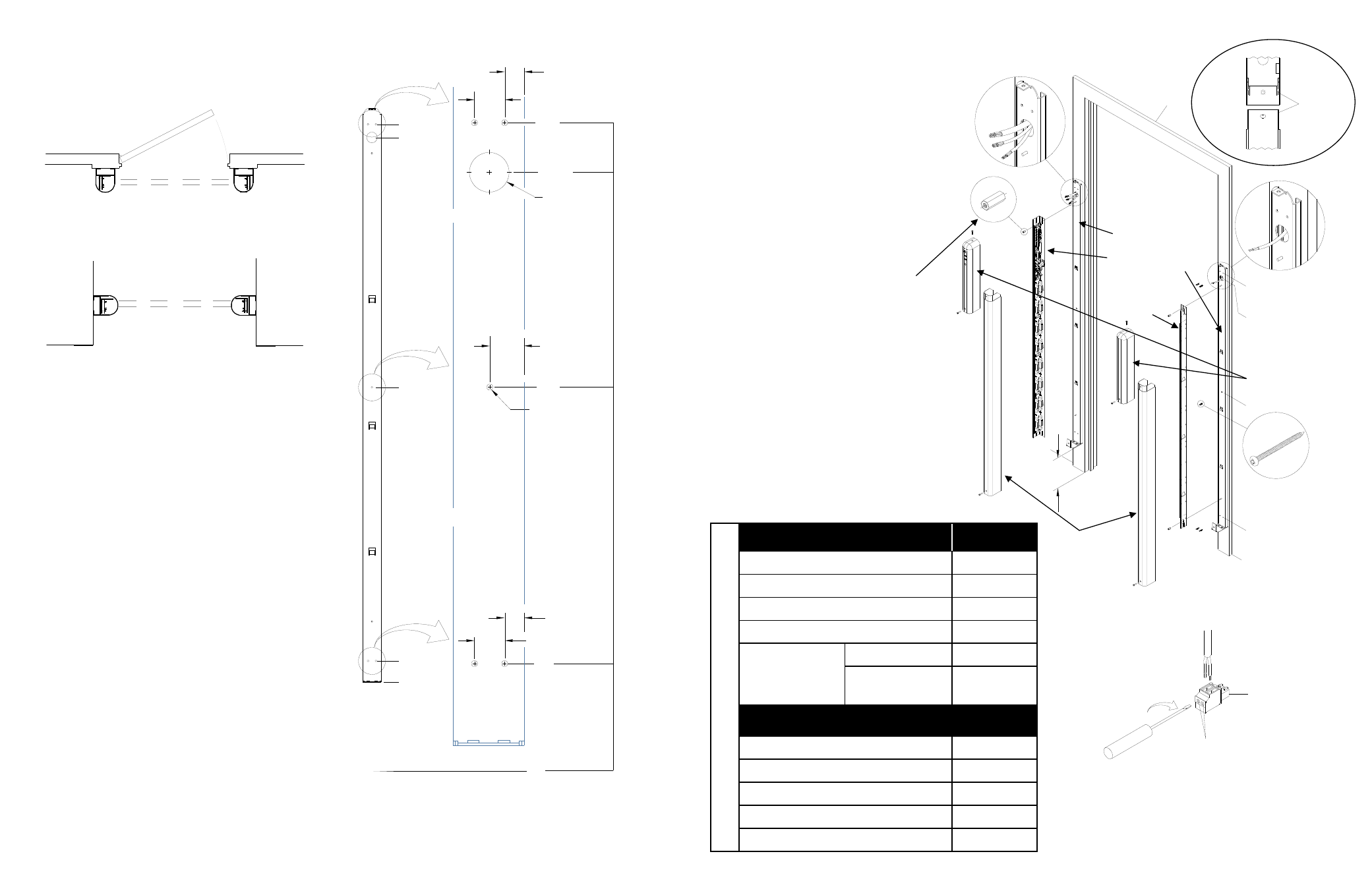

DIMENSIONS
0"
Finished Floor
H
E
IGH
T
ABOVE
F
INISHED FLOOR
.875"
1/2"
1/2"
MOUNTING
PLATE
&
DIMENSIONS
MO
UN
TIN
G P
LAT
ES
REC
EIV
ER
TR
AN
SM
ITT
ER
LOWER COVERS
UPPER COVERS
(see detail above)
WALL MOUNT
DOOR MOUNT
REAR VIEW
UPPER COVER
LOWER IR COVER
FITS INTO UPPER
COVER BETWEEN
TAB AND COVER
LOWER COVER
