4 - The PatchMix DSP Mixer
Mixer Strip Creation
34 Creative Professional
Mixer Strip Creation
f Adding or deleting a
strip “defragments” the
effect/DSP resources. If
you have used all your
effects and need another,
try deleting an unused
strip.
PatchMix DSP is a dynamically configurable mixer. Each mixer session can contain an
arbitrary number of strips up to a limit set by the number of available input sources and
available DSP resources.
To Add a New Strip:
1. Click on the “New Mixer Strip” button. See Overview of the Mixer

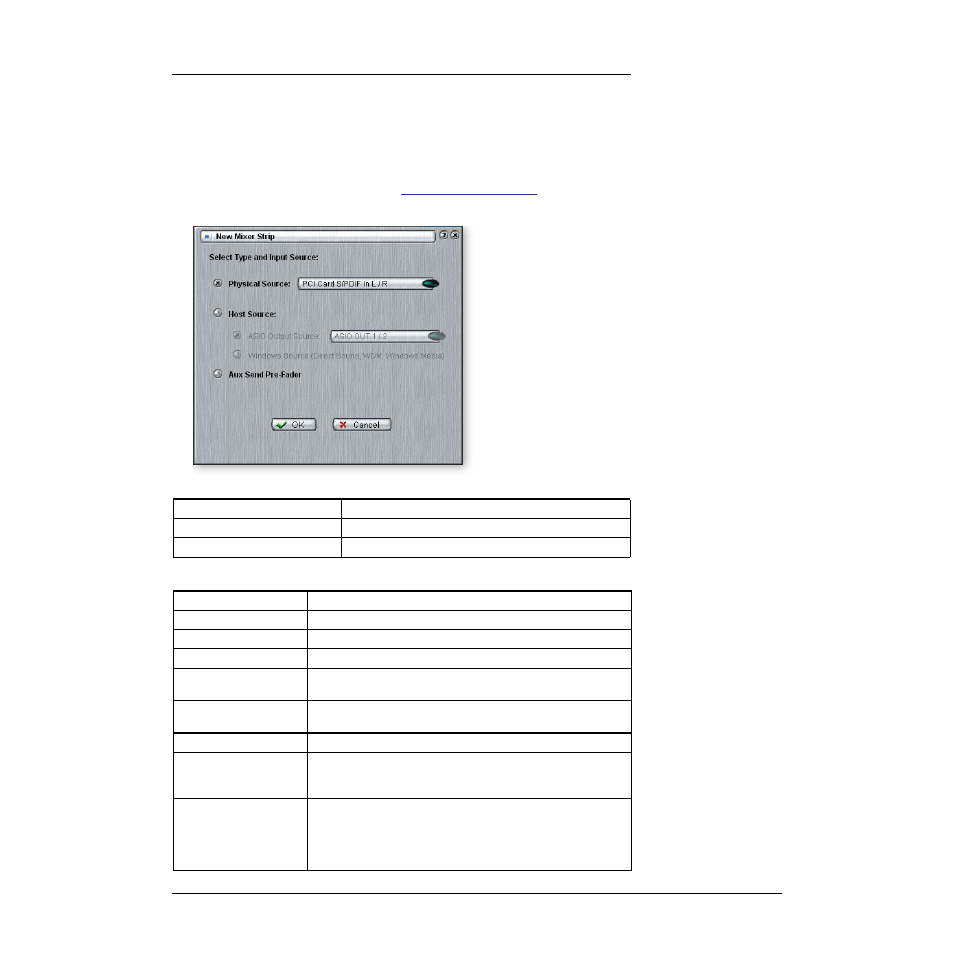

2. The New Mixer Strip Input Dialog appears:
f CDs & MP3s: The
WAVE 1/2 strip is used
to playback CDs,
Windows Media Player,
and Direct Sound.
3. Select the desired input to the mixer strip from the following choices:
• Physical Source: Analog or digital input (Analog, ADAT, S/PDIF)
• Host - ASIO Source input Streaming audio from an ASIO software application.
• Host - WAVE input Window sound sources — WAVE, WDM, CD
Mixer Strip Type Function
Physical: I/O Card In 24-bit monophonic analog input from the 0202 Daughter Card.
Physical: Dock Mic/Line 24-bit monophonic analog input from the AudioDock.
Physical: Dock In 24-bit stereo analog input from the AudioDock.
Physical: PCI Card S/
PDIF 2 channel digital audio from the S/PDIF input on the E-MU 1010
card.
Physical: PCI Card ADAT 2 channel digital audio from the ADAT input on the E-MU 1010
card
HOST SOURCE Function
Host ASIO Output
Source
From software application 2 channel digital audio from an ASIO source (software app).
ASIO: 1/2, 3/4, 5/6, 7/8, 9/10, 11/12, 13/14 … 31/32
Host Windows Source
From Windows Direct Sound, WDM, Windows Media
(Sound generated or handled by Windows.)
WAVE 1/2 - Default stereo source such as game sound, CD player,
beep sounds, etc.
WAVE 3/4, WAVE 5/6, WAVE 7/8 - Additional WDM channels
