INSTALLATION MANUAL

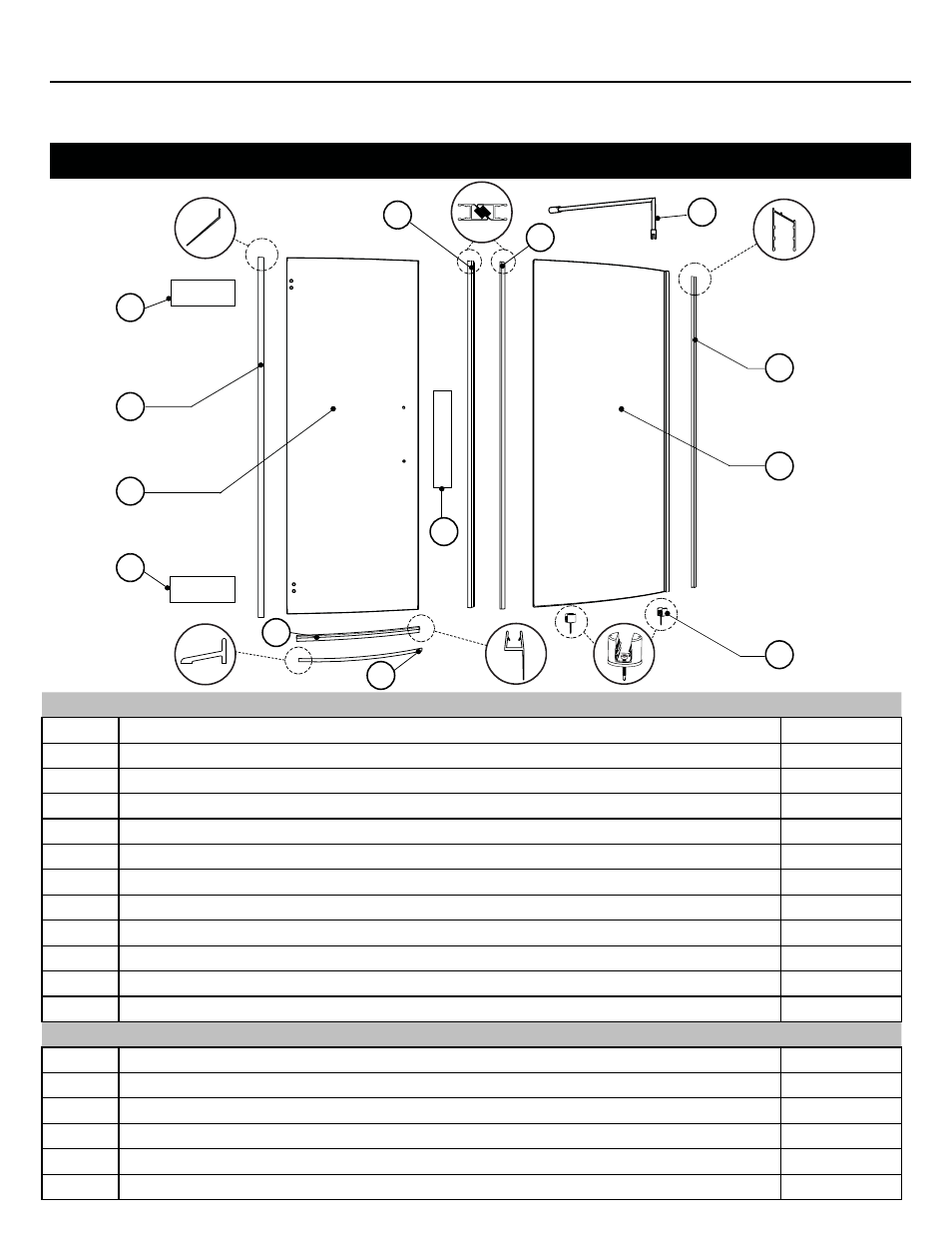

PARTS LISTING
9
4
2
9
6
1
12
11
3
10
5
ITEM PARTS QTY
1 WALL JAMB 1
2 DOOR PANEL 1
3 SIDE PANEL 1
4 WALL SIDE GASKET 1
5 BOTTOM DOOR GASKET 1
6 MAGNETIC DOOR GASKET 1
7 MAGNETIC SIDE PANEL GASKET 1
8 HANDLES 1
9 HINGE 2
10 GLASS SUPPORT 2
11 THRESHOLD 1
12 SUPORT BAR 1
ITEM HARDWARE QTY
13 WALL PLUG # 1/4” x 1” 3
14 SCREW CAP 4
15 BACK SCREW CAP 4
16 PAN SELF DRILLING SCREW #8-3/8” 3
17 PAN HEAD SELF DRILLING SCREW # 8 - 1 1/4” 3
18 SETTING BLOCK 2
7
HINGE
HANDLE
8
5
HINGE
