One-Channel Media Converter
Ports
The Converter provides one TX port and one FX port. For the FX
port, it provides options of multi-mode fiber using an SC connector.
For the TX port, it uses RJ-45 connector, auto-MDIX, and auto
senses the speed of 10/100Mbps and full/half duplex.
Port Settings

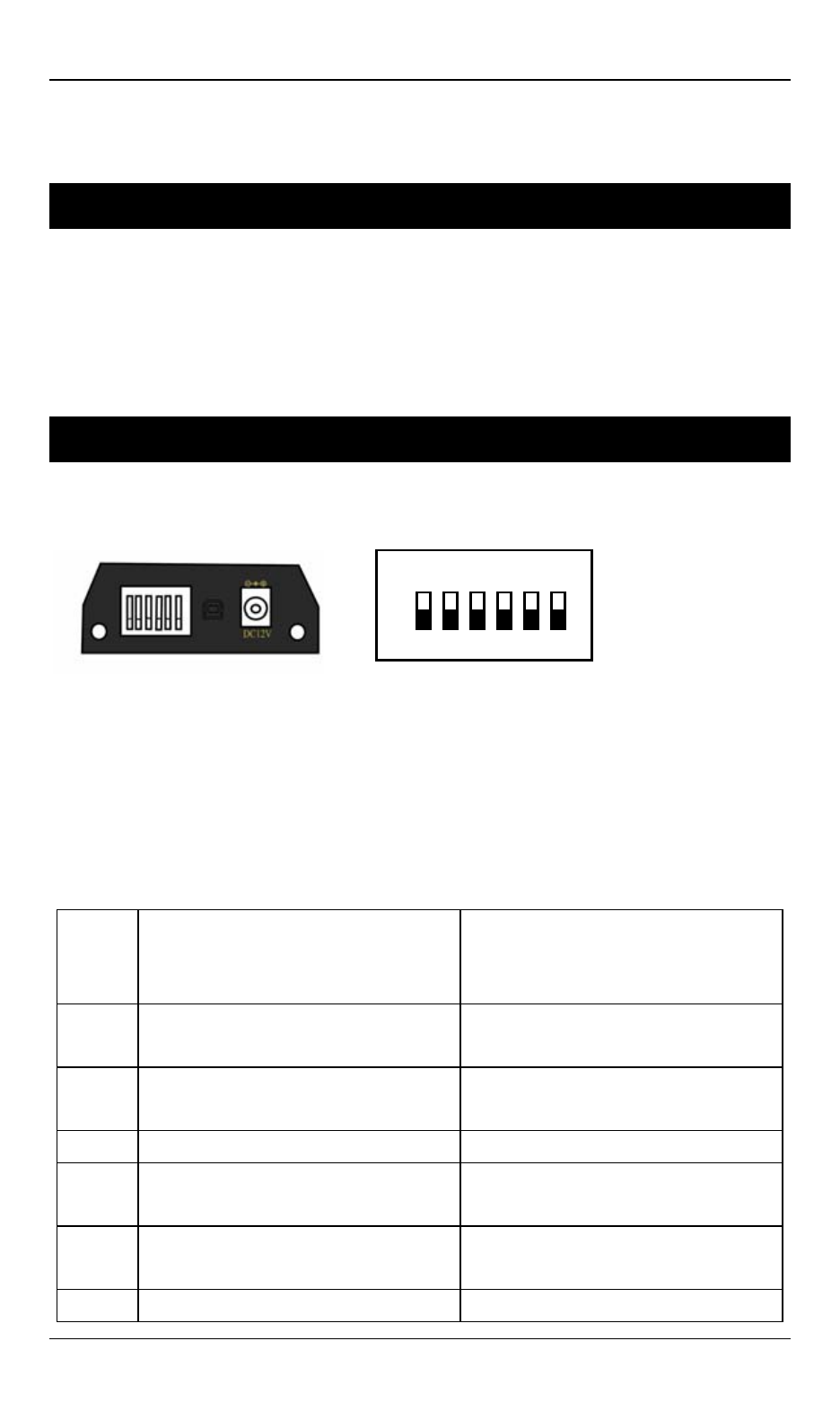

Port settings are made very simple by means of a DIP (Dual Inline
Package) switch at the rear panel of the module.
1 2 3 4 5
6
DIP
SWITCH
There are six pins on the DIP switch for port settings. Refer to the
table below for more details.
DIP
switch
No. Down (Default Setting) Up
1 Enable link-fault-pass-
through
Disable link-fault-pass-
through
2 Enable auto negotiation for
TX port Enable forced mode for TX
port
3 TX port forced to 100Mbps TX port forced to 10Mbps
4 TX port forced to full duplex
mode TX port forced to half
duplex mode
5 FX port forced to full duplex
mode FX port forced to half
duplex mode
6
