12.7.3 Output Selection

Jumpers located on the channel’s circuit board determine what outputs are generated when the value selected to
drive the Analog Out put (from the DAC.CHANNEL and DAC.SOURCE menu items) equals the DAC.FULL SCALE
and DAC.ZERO SCALE settings.

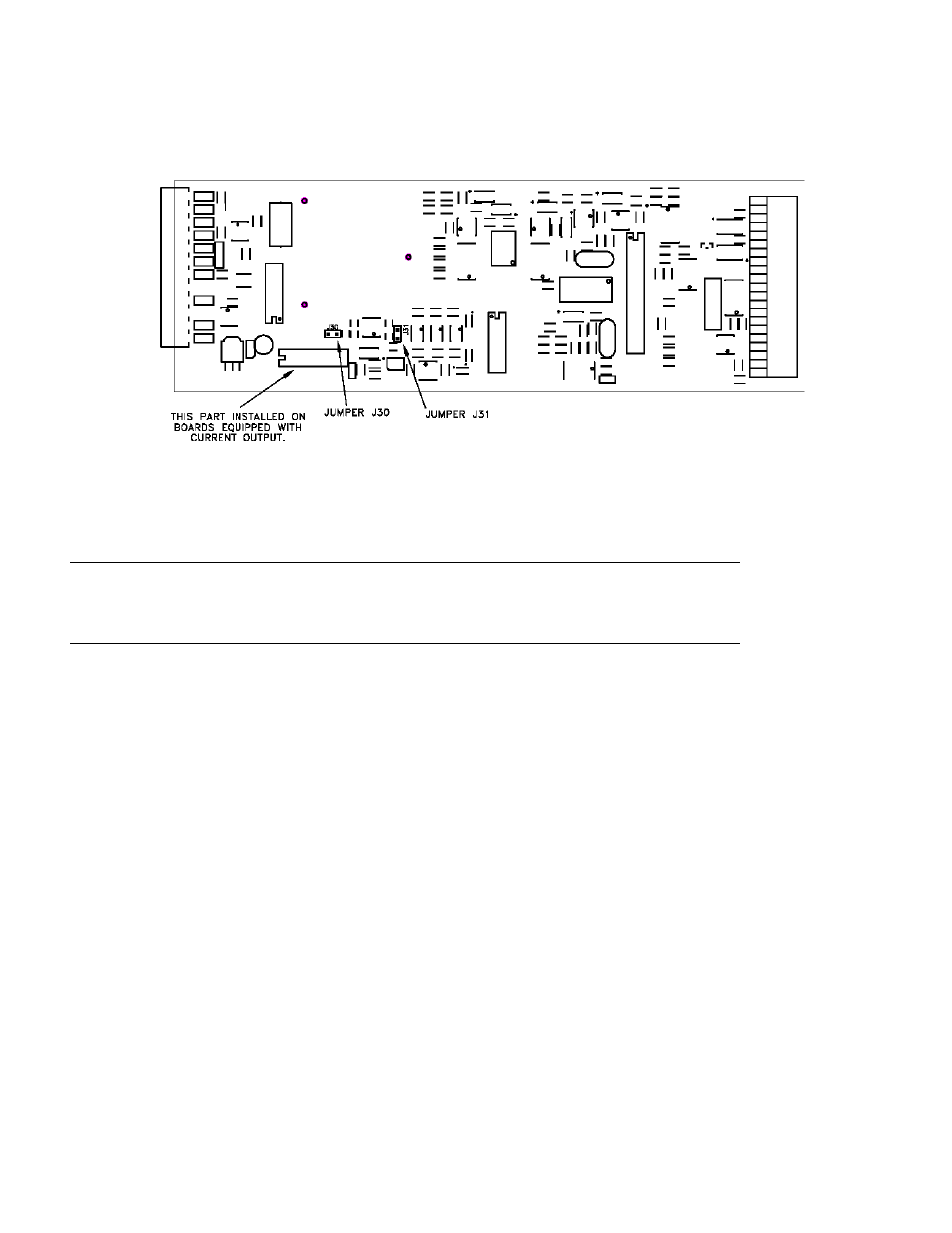

Figure 12-8: Digital-to-Analog Output Jumper Locations

DAC.ZERO SCALE

DAC.FULL SCALE

J30

J31

Output

Output

jumper

jumper


CHANNELS WITH VOLTAGE OUTPUT
0-5V

2.5 Volts

5 Volts

open

closed

±5V

0 Volts

5 Volts

open

open

0-10V

5 Volts

10 Volts

closed

closed

±10V

0 Volts

10 Volts

closed

open

CHANNELS WITH CURRENT OUTPUT
4-20mA 4mA

20mA

open

open

4-20mA 12mA

20mA

open

closed

12.8 Troubleshooting

12.8.1 Error Messages

See “Error Messages” in Chapter 17 for information relating to error messages.

12.8.2 Common Problems and Solutions

Erratic Display

Check electrical connections for continuity and the transducer’s and amplifier’s wiring code from its Certificate of
Calibration and Application Note.

Make sure that the load on the transducer is constant.

Check input voltage or current to the (+)Signal (“+SIG”) and (-)Signal (“-SIG”) pins with a multi-meter.

+OVLD or –OVLD on Display

Indicates that the voltage across the (+)Signal (“+SIG”) and (-)Signal (“-SIG”) pins is overranging or underranging
the amplifier circuit. Make certain all wires are connected properly.

If you remove all load from the transducer and you still see this message, the (+)Excitation (“+EXC”) or
(-)Excitation (“-EXC”) pins may be shorted to the (+)Signal (“+SIG”) and (-)Signal (“-SIG”) pins.

If you remove all load from the transducer and you get a numeric reading, the transducer may have a high zero
offset. Use the channel’s SETUP menu and set DIAGNOSTICS-DISPLAY ADC to “ON”; in the RUN mode this will
allow the [VALUE] button to display raw A/D readings as a percentage of its full-scale. If the raw A/D readings
display more than +/-10% when there is no load on the transducer, the transducer has a high zero offset.
