SARGENT 8200 Mortise Lock with Push/Pull Trim (ALP) User Manual
Installation instructions
1
A8138B 7/01/12
Copyright © 2012 Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission
of Sargent Manufacturing Company is prohibited.
INSTALLATION INSTRUCTIONS
ALP Paddle Positive Pull Stop Retrofit Kit Instructions
FOR INSTALLATION ASSISTANCE, CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

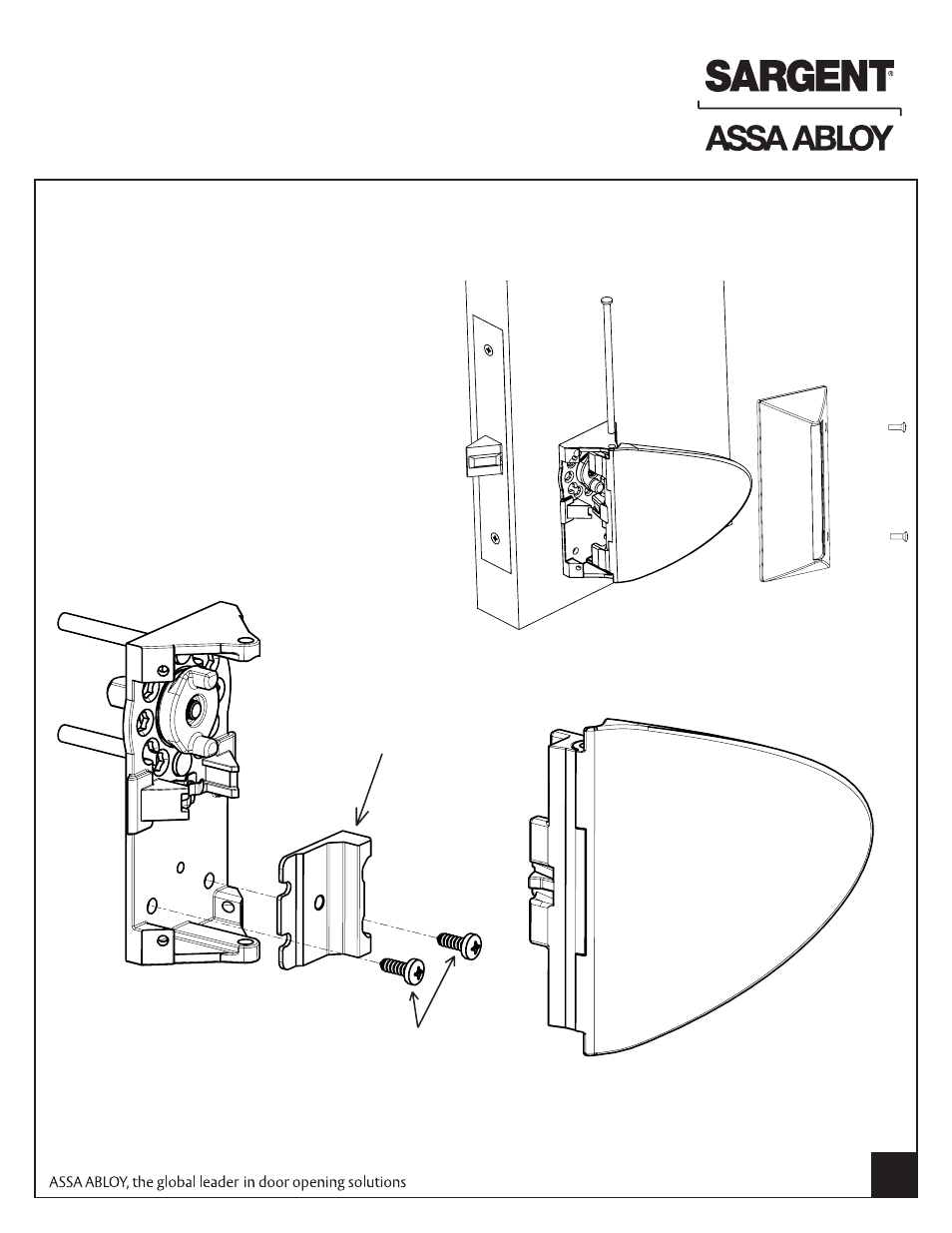

Step 2) Remove both surface mount screws
from pull side of door
Step 3) Orient paddle stop so that larger side
is underneath the paddle
Step 4) Re-install both surface mount screws
Step 6) Re-Install paddle and cover
Step 1) Remove cover and paddle on pull
side of door
Step 5) Check to make sure paddle retracts
latch when pushed but not when pulled
Surface mount screws
Larger side of paddle
stop must be oriented
so that it is on same
side as paddle handle
