Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
5of6
Assembly Instruction Sheet #IS-CRA2826MC
For Style CRA2826MC

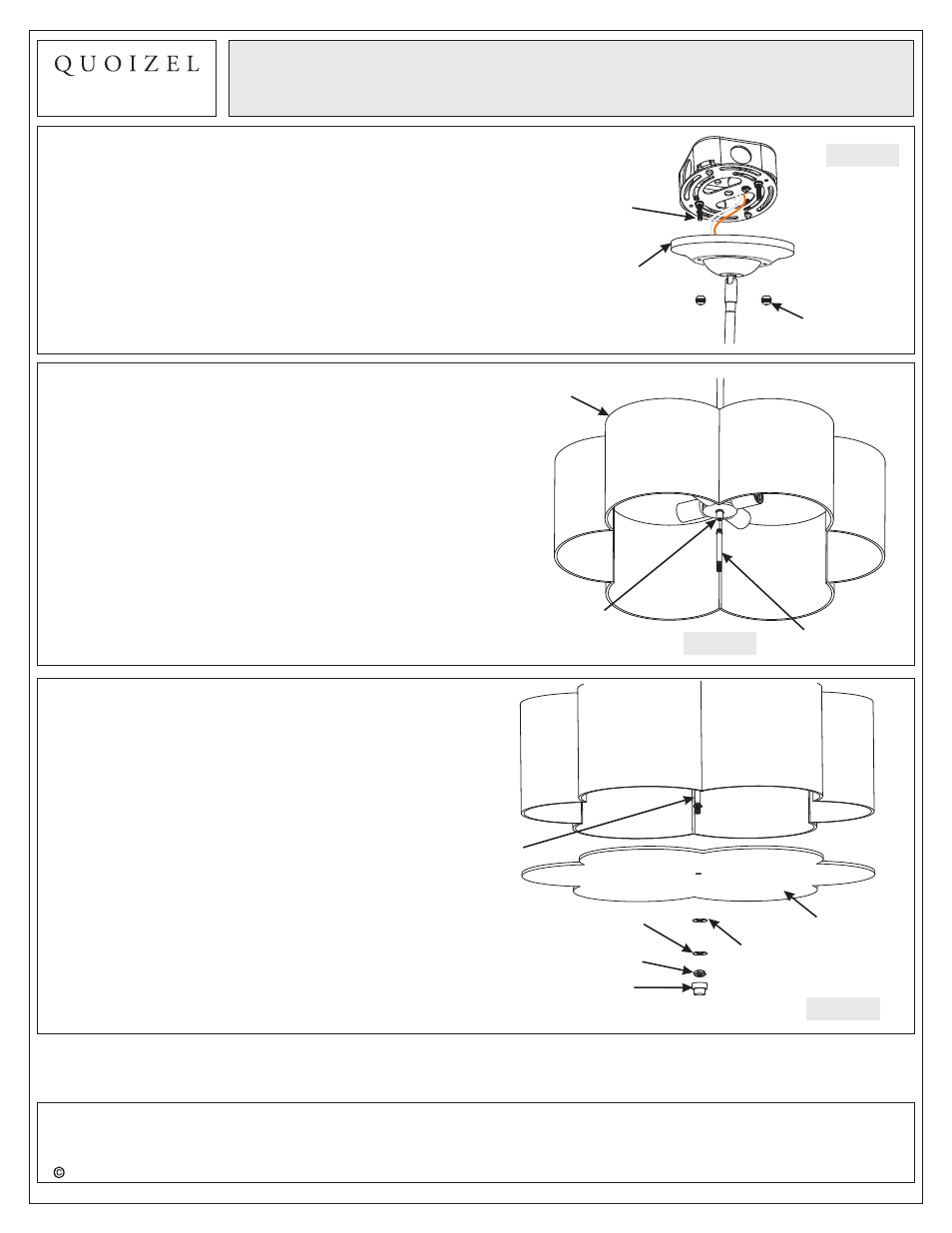

STEP 6 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy (F) over the Mounting Screws
(B) and secure with Mounting Balls (E). Hand tighten
until snug.
Mounting
Screw
Mounting
Ball
Ceiling Canopy
Figure 7
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
, .
. .
2013 QuoizelInc. April2013
STEP 7 - Attach Center Stem to Socket
Assembly
A. Thread the beaded end of Center Stem (J) into
Coupling inside of Socket Assembly (I). Hand tighten
until snug.
Figure 8
Center
Stem
Coupling
Socket
Assembly
STEP 8 - Attach Diffuser to Fixture
A. Place Diffuser (K),Rubber Washer (L) and Flat Washer
(M) onto the Center Stem (J), secure by thread 1/8 Hex
Nut (K) onto Center Stem (J). Hand tighten until snug.
B. Thread Finial (O) onto Center Stem (J), hand tighten
until snug.
Figure 9
Center
Stem
Diffuser
Rubber Washer
Flat Washer
Finial
Hex Nut
