SECTION 3: INSTALLATION 14 Manual 0-2530
AC Input
Power Connection
A-00814

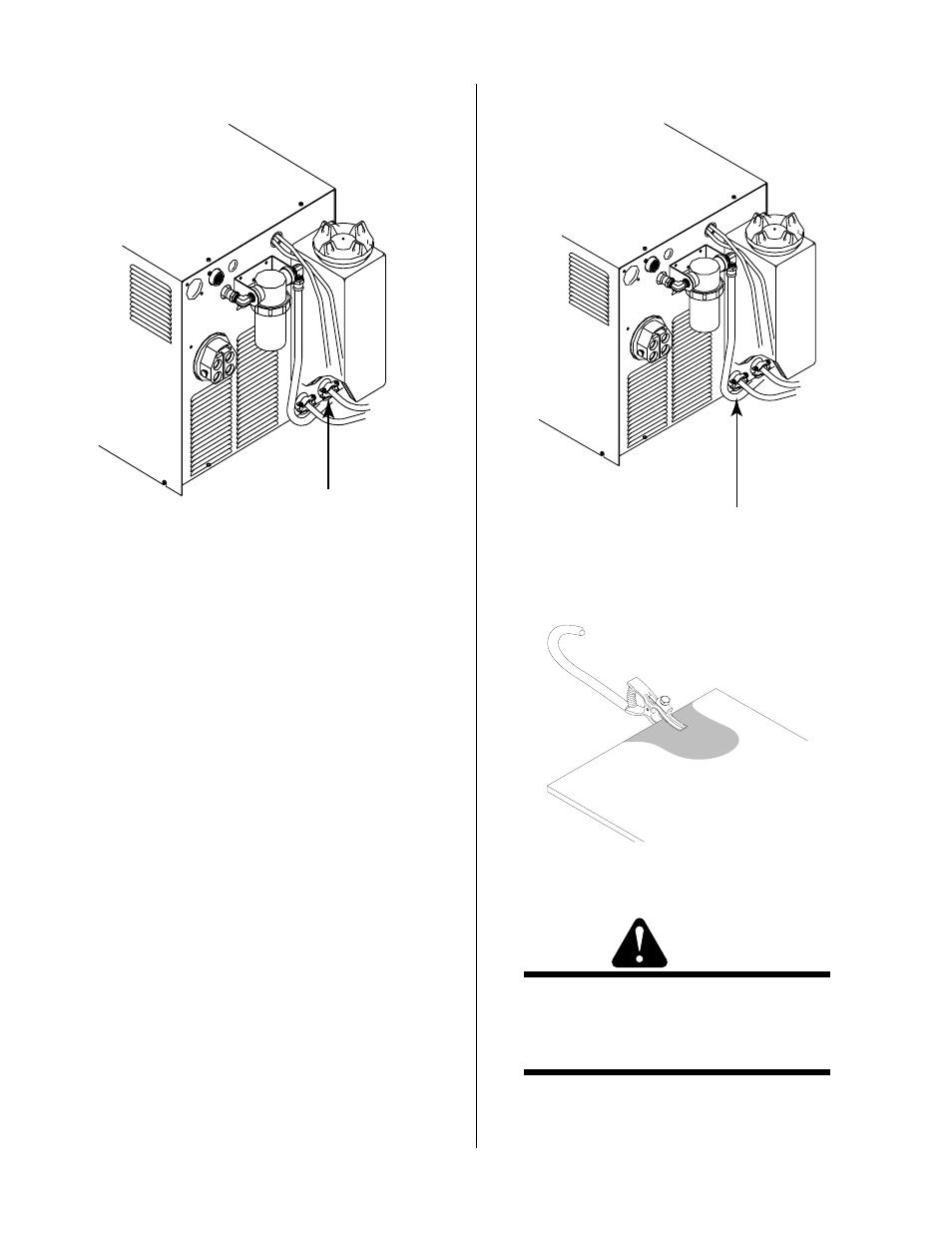

Figure 3-1 Rear Panel Input Power Connection
3.05 Work Cable Connection
High frequency pilot arc initiation generates a certain
amount of electromagnetic interference (EMI), commonly
called RF noise. This RF may interfere with other elec-
tronic equipment such as CNC controllers, etc. To further
minimize RF interference, make sure the work cable is prop-
erly connected when installing mechanized systems.
1. Make sure the work cable is securely fastened to
the WORK connection on the rear panel of unit.
2. Make a solid connection between the work clamp
and the work piece or welding machine.
Work Cable Connection
A-00818
Figure 3-2 Rear Panel Work Cable Connection
A-00141
Make a solid work cable
connection to the work-
piece or cutting table
Figure 3-3 Work Cable Connection
WARNING
Make sure the ground wire is designated GND on
the other end of the cable. Electric shock and dam-
age to the unit could occur if power is applied to the
GND terminal.
