tekmar 654 Snow Melting Control Installation - Manual (Page 10)

© 2013 654_D - 06/13 10 of 44
Symbols

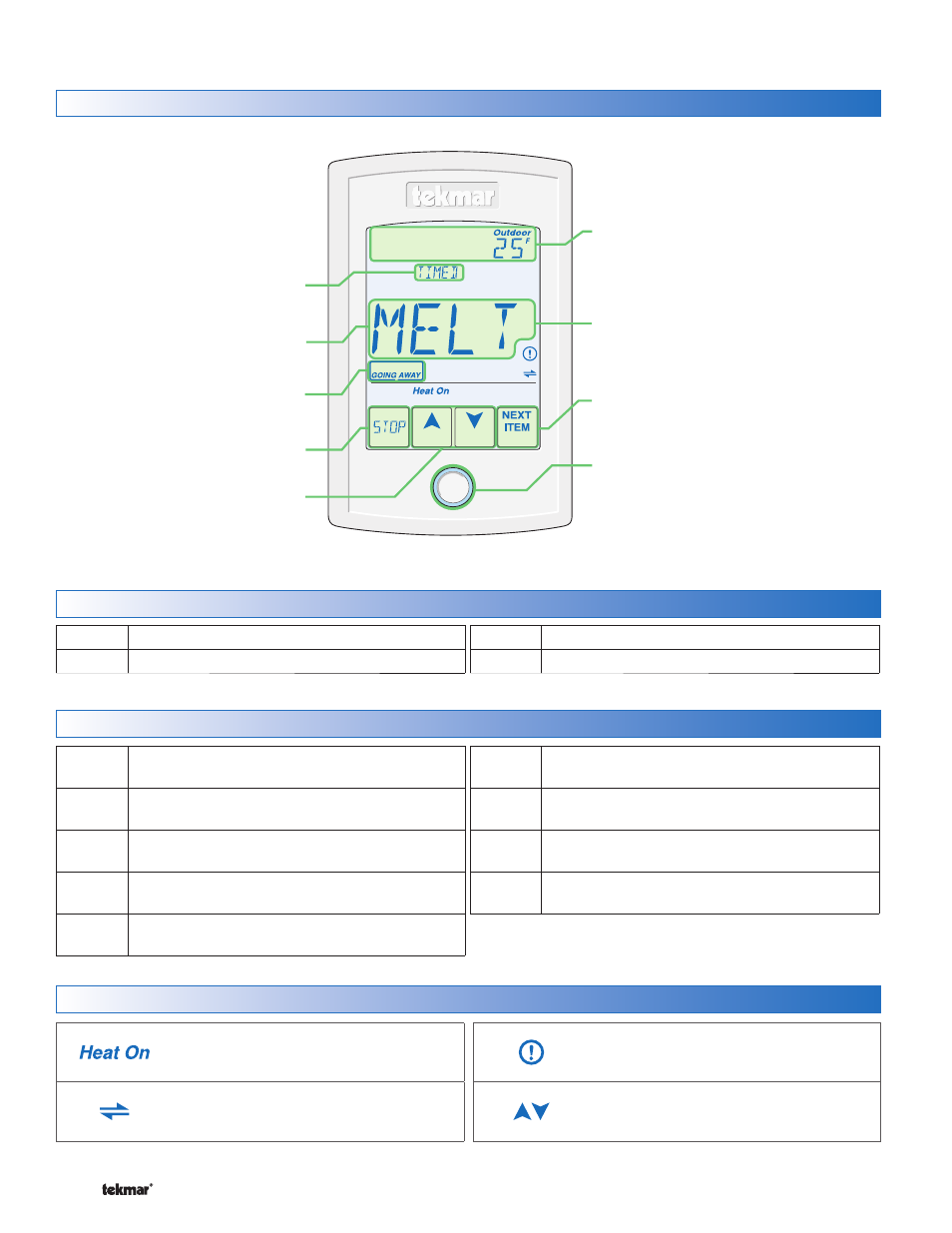

Display
User Interface
HEAT ON
Heat is turned on.
tekmarNet ®
Communication is present.
WARNING SYMBOL
Indicates an error is present.
ARROWS
Adjust the displayed setting.
Home
Button
ENTER
Home Button
Return to the Home Screen
Press and hold for 3
seconds to access the
programming menus.
Touch to go to the next setting
Touch to quickly enter
the View menu
Touch to adjust settings
Operation Field
Status Field
Touch to display
Run Time,
Outdoor & Slab
Temperature
Touch to
Melt or Stop
Touch to turn system
off while away
Status Field
Operation Field
MELT System is melting snow or ice.
IDLE System is idling.
STRM System is in storm operation.
OFF System is off.
WWSD
Warm Weather Shut Down. The slab is naturally
warm enough to melt snow or ice.
CWCO Cold Weather Cut Out. Too cold to melt.
TIMED
Timed melting operation. System operates until
time has elapsed.
WARM Slab is warming up to the melting temperature.
AWAY
Away scene. No melting until the away scene is
exited.
PEND
Pending. The system has detected water but it is too
cold to operate or the schedule is in Idle or Off.
WAIT
Zone priority in effect. Zone must wait until higher
priority zone finishes melting.
SENSOR Tandem 090 sensor.
TRACK This zone tracks the melting operation of zone 1.
