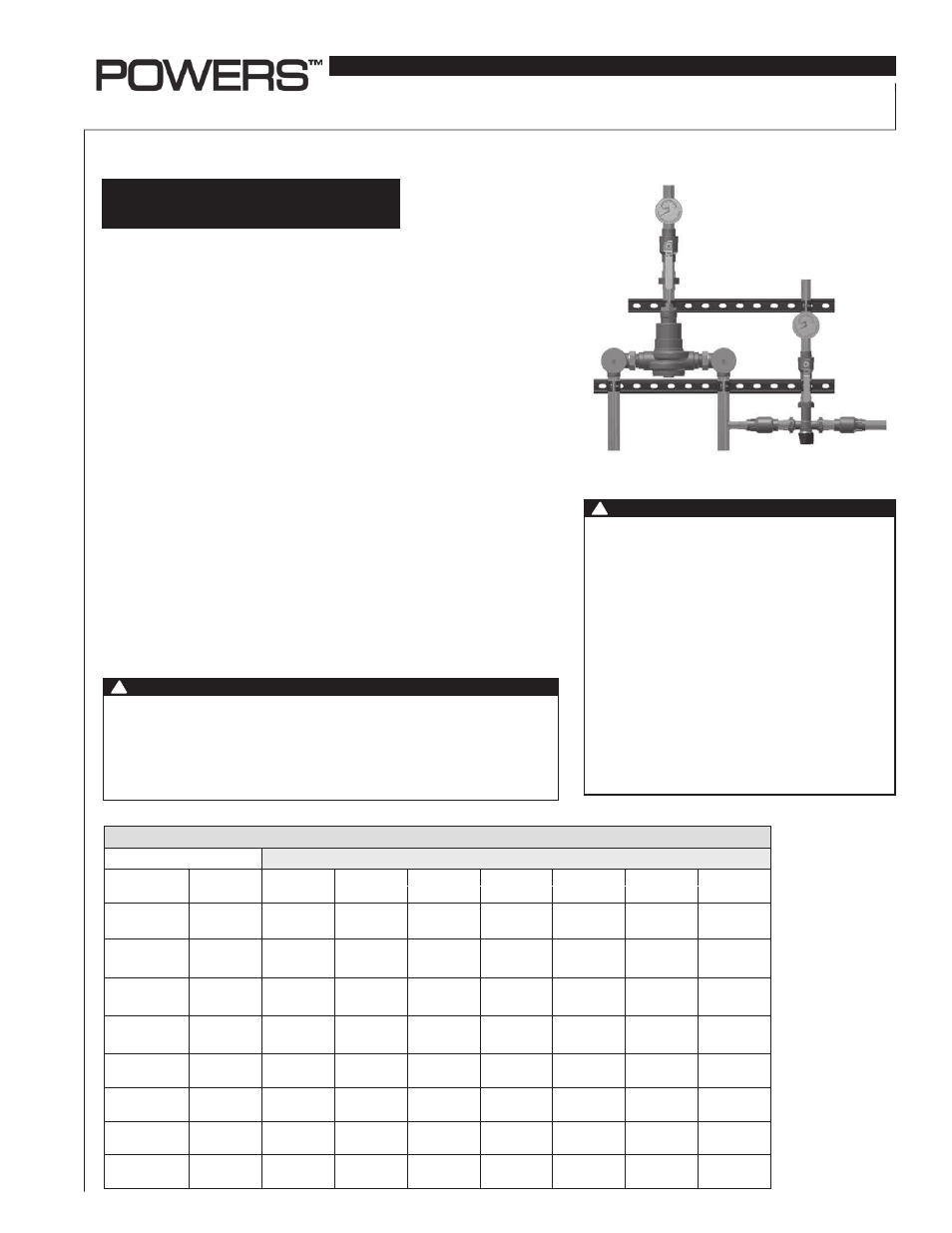

Lead Free * HydroGuard ® Water Tempering
with Automatic Balancing System
Technical Instructions
IS-P-RECIRCULATING_LOOP
Maximum Operating Pressure 125psi (861 kPa)
Maximum Hot Water Temperature 200°F (93°C)
Minimum Hot Water Supply Temp 5°F (3°C) Above Set
Point**
Hot Water Inlet Temperature Range 120 -180°F (49 - 82°C)
Cold Water Inlet Temperature Range 40 - 80°F (4 - 27°C)
Temperature Adjustment Range ***
Standard
90 - 160°F (32 - 71°C)
Low 60 - 90°F (16 - 32°C)
Listing - Valve Only ASSE 1017
Certified - Valve Only CSA B125
** With Equal Pressure
*** Note: Low limit cannot be less than the cold water temperature. For best operation,
hot water should be at least 5°F (3°C) above desired set point.
Specifications
n
Description
n
The HydroGuard ® Lead Free * water tempering and recirculation loop is an eco-
nomical way to provide a safe, balanced system for stand-alone master tempering
valves The system monitors return line temperature and automatically directs
water to the cold side of the tempering valve (if within set point) or to the hot water
source (below set point) This is accomplished with Powers exclusive automatic
balancing valve (ABV), featuring paraffin-based, advanced actuation technology
Capacity
n
Flow Capacity at 50-50 Mixed Ratio
P r e s s u r e D r o p A c r o s s V a l v e
Model
Min. Flow
C
V
5psi 10psi 20psi 30psi 45psi 60psi
to ASSE 1017 (34 kPa) (69 kPa) (138 kPa) (207 kPa) (310 kPa) (414 kPa)
LFMM431
3 gpm
6 32
14 gpm 20 gpm 28 gpm 35 gpm 42 gpm 49 gpm
11 lpm 53 lpm 76 lpm 106 lpm 132 lpm 159 lpm 185 lpm
LFMM432
4 gpm
9 49
21 gpm 30 gpm 42 gpm 52 gpm 64 gpm 74 gpm
15 lpm 80 lpm 114 lpm 159 lpm 197 lpm 242 lpm 280 lpm
LFMM433
5 gpm
16 44
37 gpm 52 gpm 74 gpm 90 gpm 110 gpm 127 gpm
19 lpm 140 lpm 197 lpm 280 lpm 341 lpm 416 lpm 481 lpm
LFMM434
7 gpm
21 50
48 gpm 68 gpm 96 gpm 118 gpm 144 gpm 167 gpm
26 lpm 182 lpm 257 lpm 363 lpm 447 lpm 545 lpm 632 lpm
LFMM435
10 gpm
31 00
69 gpm 98 gpm 139 gpm 170 gpm 208 gpm 240 gpm
38 lpm 261 lpm 371 lpm 526 lpm 644 lpm 787 lpm 908 lpm
LFSH1432
1 gpm
8 54
19 gpm 27 gpm 38 gpm 47 gpm 57 gpm 66 gpm
4 lpm 72 lpm 102 lpm 144 lpm 178 lpm 216 lpm 250 lpm
LFSH1434
1 gpm
19 00
42 gpm 60 gpm 85 gpm 104 gpm 127 gpm 147 gpm
4 lpm 159 lpm 227 lpm 322 lpm 394 lpm 481 lpm 556 lpm
LFSH1435
5 gpm
30 00
67 gpm 95 gpm 134 gpm 164 gpm 201 gpm 232 gpm
19 lpm 254 lpm 360 lpm 507 lpm 621 lpm 761 lpm 878 lpm
LEAD FREE
*
TO ENSURE THE ACCURATE AND RELIABLE
OPERATION OF THIS PRODUCT, IT IS ESSENTIAL TO:
• Properly size each valve based on the individual
application
• Properly design the recirculation system to minimize
pressure and temperature variations
• Conduct an annual maintenance program to ensure
proper operation of all critical components
THIS VALVE MUST BE USED IN CONJUNCTION WITH
TEMPERATURE ACTUATED POINT-OF-USE DEVICES
THAT COMPLY WITH ASSE 1016, 1069, OR 1070.
FAILURE TO COMPLY WITH PROPER INSTALLATION
INSTRUCTIONS COULD CONTRIBUTE TO VALVE
FAILURE, RESULTING IN IN JURY OR DEATH.
WARNING !
*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
Please read and retain these instructions.
WARNING !
Need for Periodic Inspection: Periodic inspection by a licensed contractor is
recommended Corrosive water conditions, temperatures over 200°F, unauthor-
ized adjustments or repair could render the valve ineffective for service intend-
ed Regular checking and cleaning of thermostat assembly helps to assure
maximum life and proper product function Frequency of cleaning depends
upon local water conditions
