Page 2: Spare parts, Jumbo cartridges

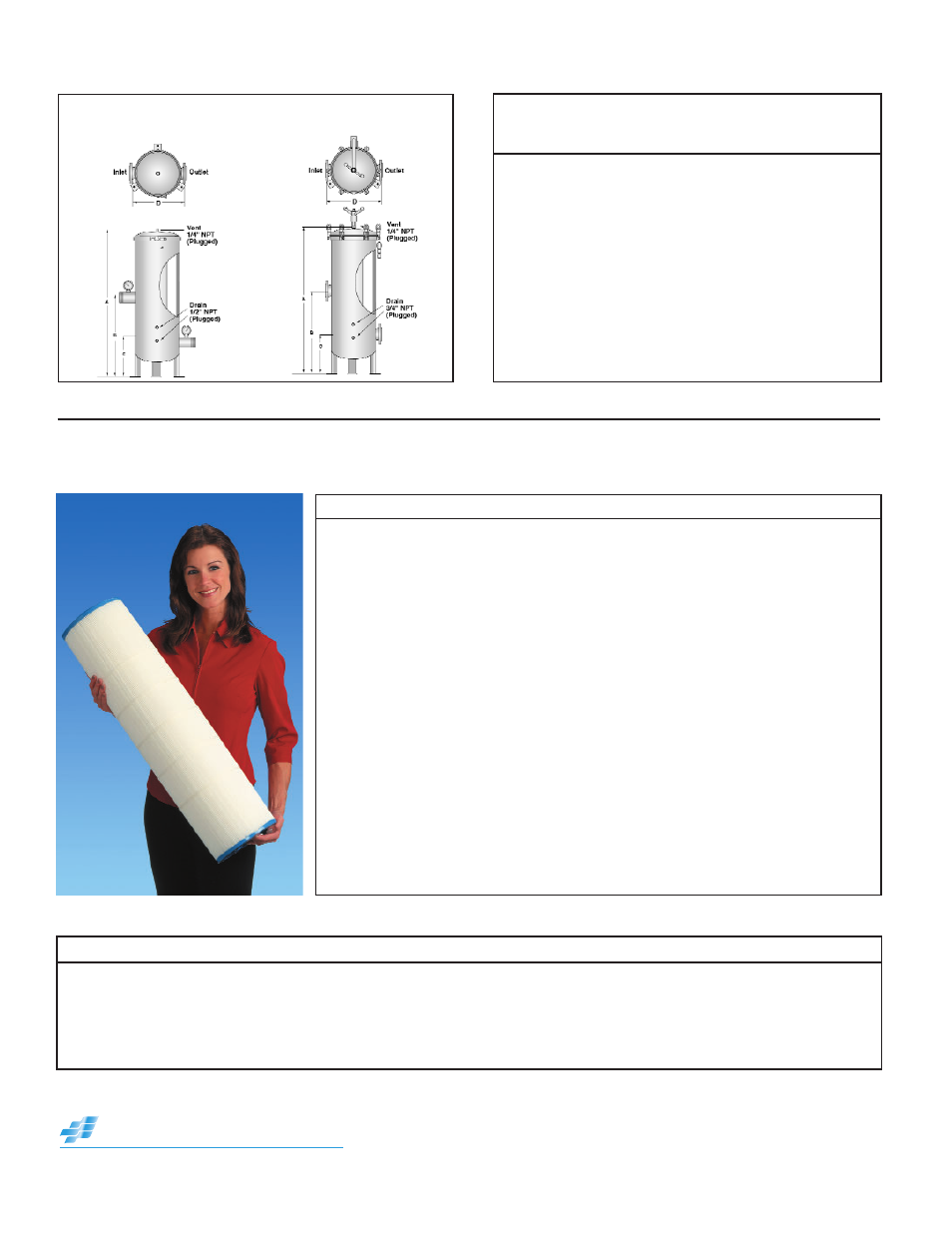

Dimensions
Model
A
B
C
D
FMJCH40
25-1/2”
13-7/8”
8-3/4”
17-1/2”
FMJCH90
35-1/2”
13-7/8”
8-3/4”
17-1/2”
FMJCH170
45-1/2”
13-7/8”
8-3/4”
17-1/2”
FMJCH3X170
61”*
32-3/8”
14”
23-1/2”
FMJCH5X170
67”*
32-3/8”
14”
28-1/2”
FMJCH8X170
67”*
38-3/8”
20”
37-1/8”
* Plus 10-1/2” for davit.
Spare parts
Description
Part Numbers
Description
Part Number
Gasket, Buna-N, single cartridge
FM10017-B
Drain plug, 1/2”
FM8011-316
Gasket, Viton, single cartridge
FM10017-V
Vent plug, 1/4”
FM2013-316
Cover clamp, single cartridge
FM10008-316
Head cover, 316L stainless steel
FM10001-316
Compression cap
FMCC
Center post, 40
FMCP40
Knob for compression cap, 1/2”
FM8020
Center post, 90
FMCP90
Pressure gauges
PGO15L25
Center post, 170
FMCP170
Flow-Max
®
Jumbo Cartridge Filter Housings
Distributed by :
Flow-Max
®
jumbo cartridges
Flow-Max jumbo cartridges are pleated for increased filter area, high flow and low pressure drop. Our engineered filter media
is highly efficient to provide superior filtration. All micron ratings utilize 100% synthetic filter media, so there are no adhesives
or binders to foam or contaminate. Cartridges are available in a wide range of micron ratings, packaged one per carton.
Product Code
Micron
Length
OD
Carton Size
Ship wt.
Model 40
FMHC-40-1A
1 Absolute
9-5/8”
7-3/4”
10” x 10” x 12”
4 lbs.
FMHC-40-0.35
0.35
9-5/8”
7-3/4”
10” x 10” x 12”
4 lbs.
FMHC-40-1
1
9-5/8”
7-3/4”
10” x 10” x 12”
3 lbs.
FMHC-40-5
5
9-5/8”
7-3/4”
10” x 10” x 12”
3 lbs.
FMHC-40-20
20
9-5/8”
7-3/4”
10” x 10” x 12”
3 lbs.
FMHC-40-50
50
9-5/8”
7-3/4”
10” x 10” x 12”
3 lbs.
Model 90
FMHC-90-1A
1 Absolute
19-1/2”
7-3/4”
8” x 8” x 20”
6 lbs.
FMHC-90-0.35
0.35
19-1/2”
7-3/4”
8” x 8” x 20”
6 lbs.
FMHC-90-1
1
19-1/2”
7-3/4”
8” x 8” x 20”
5 lbs.
FMHC-90-5
5
19-1/2”
7-3/4”
8” x 8” x 20”
5 lbs.
FMHC-90-20
20
19-1/2”
7-3/4”
8” x 8” x 20”
5 lbs.
FMHC-90-50
50
19-1/2”
7-3/4”
8” x 8” x 20”
5 lbs.
Model 170
FMHC-170-1A
1 Absolute
30-3/4”
7-3/4”
8” x 8” x 31”
15 lbs.
FMHC-170-0.35
0.35
30-3/4”
7-3/4”
8” x 8” x 31”
15 lbs.
FMHC-170-1
1
30-3/4”
7-3/4”
8” x 8” x 31”
14 lbs.
FMHC-170-5
5
30-3/4”
7-3/4”
8” x 8” x 31”
14 lbs.
FMHC-170-20
20
30-3/4”
7-3/4”
8” x 8” x 31”
14 lbs.
FMHC-170-50
50
30-3/4”
7-3/4”
8” x 8” x 31”
14 lbs.
Single Cartridges Models
(40, 90 & 170)
Multi-Cartridges Models
(3, 5 & 8 cartridge filters)
Flow-Max
®
Filters
P.O. Box 1139 / Dunnellon, FL 34430
