10.
Once the seal lies flat and smooth against the top cover and side panel,
tighten the second end clamp.
11.
With the outside edge of the end clamps as a guide, use tin snips to cut and
remove excess strip seal material.
12.
Position the carriage at the far end of travel.
13.

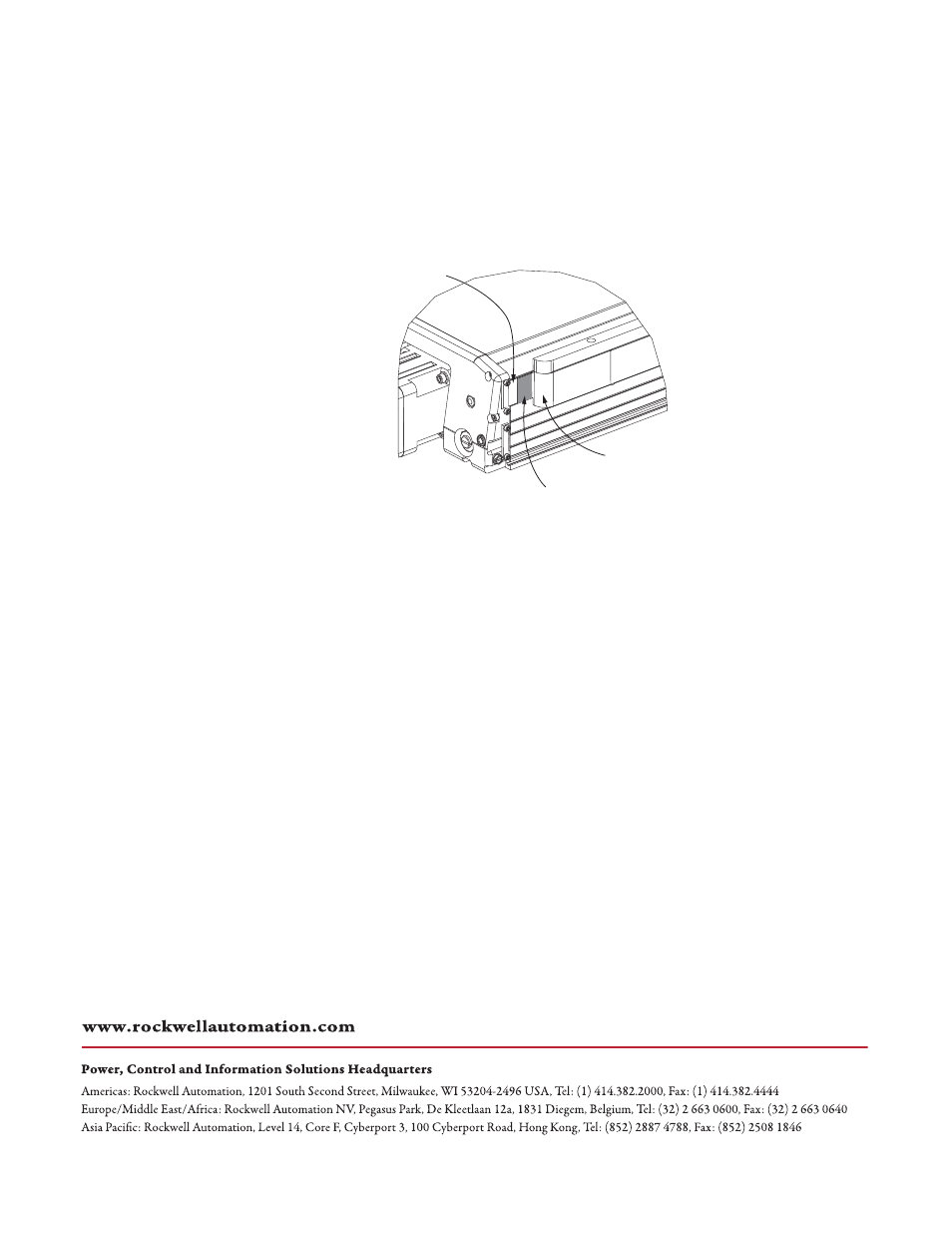

Adjust the seal guide by inserting a 0.8 mm (0.03 in.) shim between the
seal guide and the strip seal.
14.
Return the linear stage to service.
Strip Seal
Seal Guide
0.8 mm (0.03 in.) Shim
