3Ć2
PANELĆMOUNT TERMINAL BOARD
M/N 61C547
Hole Size: 0.27" x 0.20" Oval
0.68 cm x 0.50 cm
7.17"
18.2 cm
7.65"
19.4 cm 6.70"
17.0 cm
3.43"
8.7 cm
Depth: 2.07"
5.2 cm
Hole
Center
Line
Spacing
DIN RAILĆMOUNT TERMINAL BOARD
M/N 61C548
2.77"
7.0 cm
DIN TSĆ32
Rail Mounted
6.70"
17.0 cm
2.77I
7.0 cm
: Depth

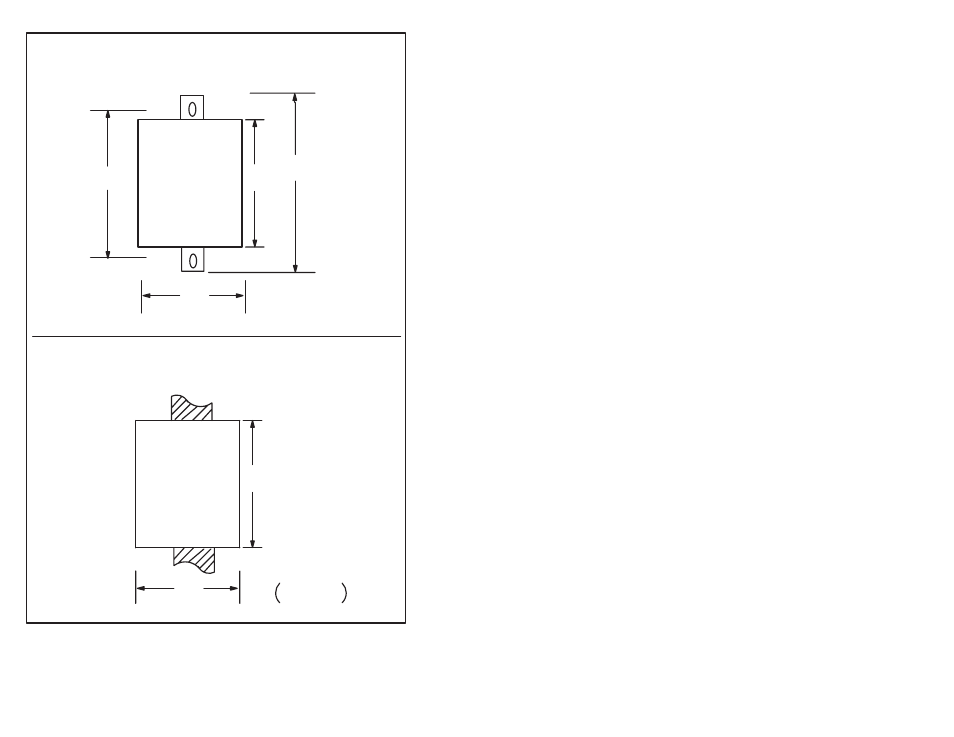

Figure 3.1 Ć Terminal Board Assembly Mounting Dimensions
