About the Modules
The ArmorPoint I/O family consists of modular I/O modules. The sealed
IP67 housing of these modules requires no enclosure when used with IP67
certified cables. (Note that environmental requirements other than IP67 may
require an additional appropriate housing.) I/O connectors are sealed DB25,
M12 (micro) or M23 styles. The mounting base ships with the module. The
1738-OB16E19M23, 1738-OB16EM12, 1738-OB16E25DS and
1738-IB16DM12 are shown below.

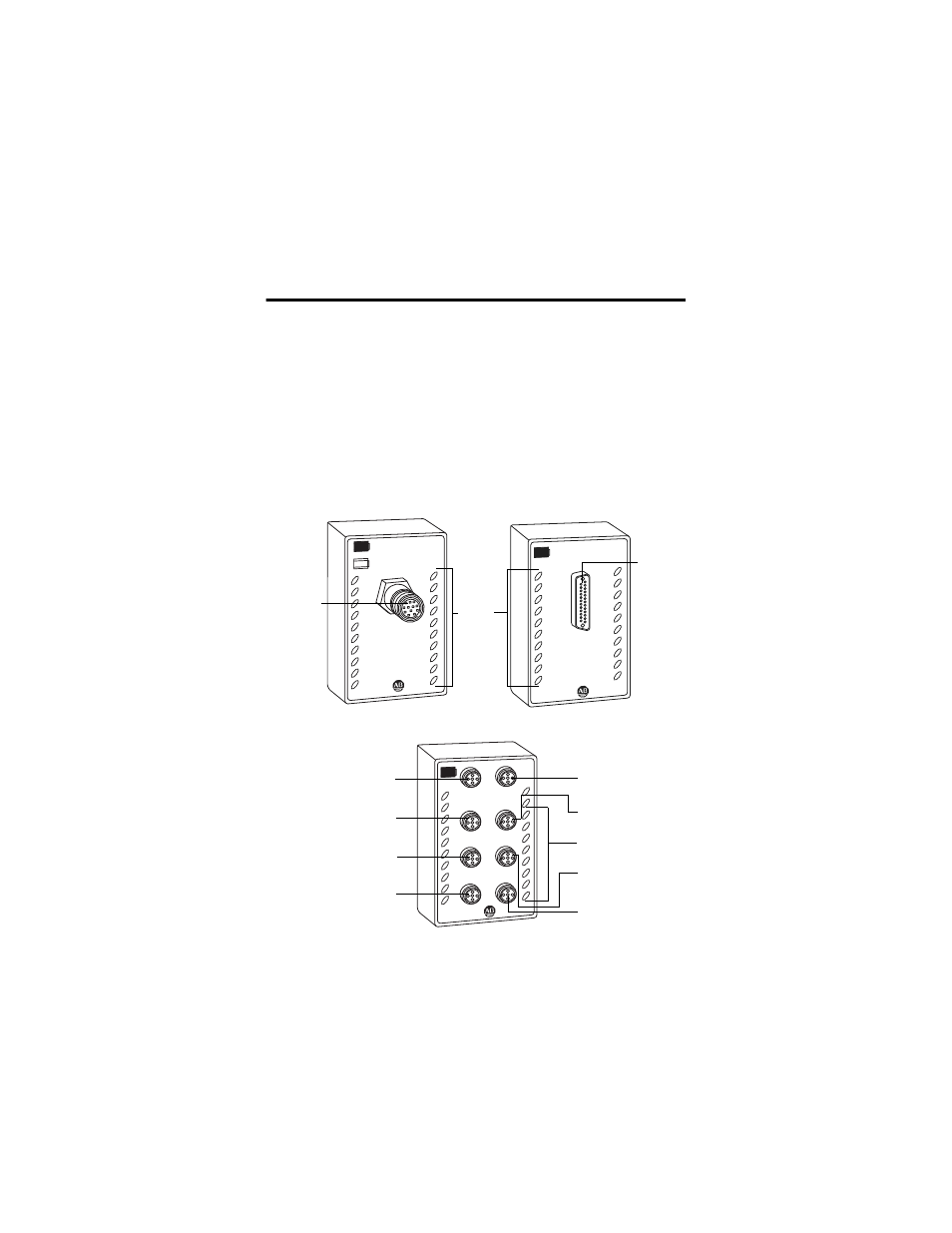

1738-OB16E19M23, 1738-OB16EM12, 1738-OB16E25DS,
1738-IB16DM12 Modules
1738-OB16E25DS
24V DC Out
MOD
NET
15
14
13
12
11
10
9
8
FAULT
0
1
2
3
4
5
6
7
1738-OB16EM12/A
24V DC Out
MOD
NET
15
14
13
12
11
10
9
8
FAULT
0
1
2
3
4
5
6
7
0-1
14-15
12-13
10-11
8-9
2-3
4-5
6-7
1738-OB16E19M23
24V DC In
MOD
NET
15
14
13
12
11
10
9
8
FAULT
0
1
2
3
4
5
6
7
Connector
D-Shell
LED
Indicators
Connector
M23
44355
44354
44353
LED Indicators
1738-OB16EM12/A and 1738-IB16DM12/A*
1738-OB16E25DS/A
1738-OB16E19M23/A
Connector M12-A
Connector M12-H
* 1738-IB16DM12/A is represented here by the 1738-OB16EM12/A. They have identical connectors and LED indicators.
Connector M12-B
Connector M12-C
Connector M12-D
Connector M12-G
Connector M12-F
Connector M12-E
