Rockwell Automation 20-COMM-P Profibus Adapter User Manual
Page 47
Configuring the Profibus Scanner
4-17
Station 1 is configured as follows:
Note that Station 1 occupies 14 words (0-13).
30. The same steps for configuring Station 1 will be used for configuring
Station 2. Refer to previous steps (starting at step #9,
Page 4-7
) for
Configuring the SST-PFB-SLC Profibus Scanner-Station 2. (See

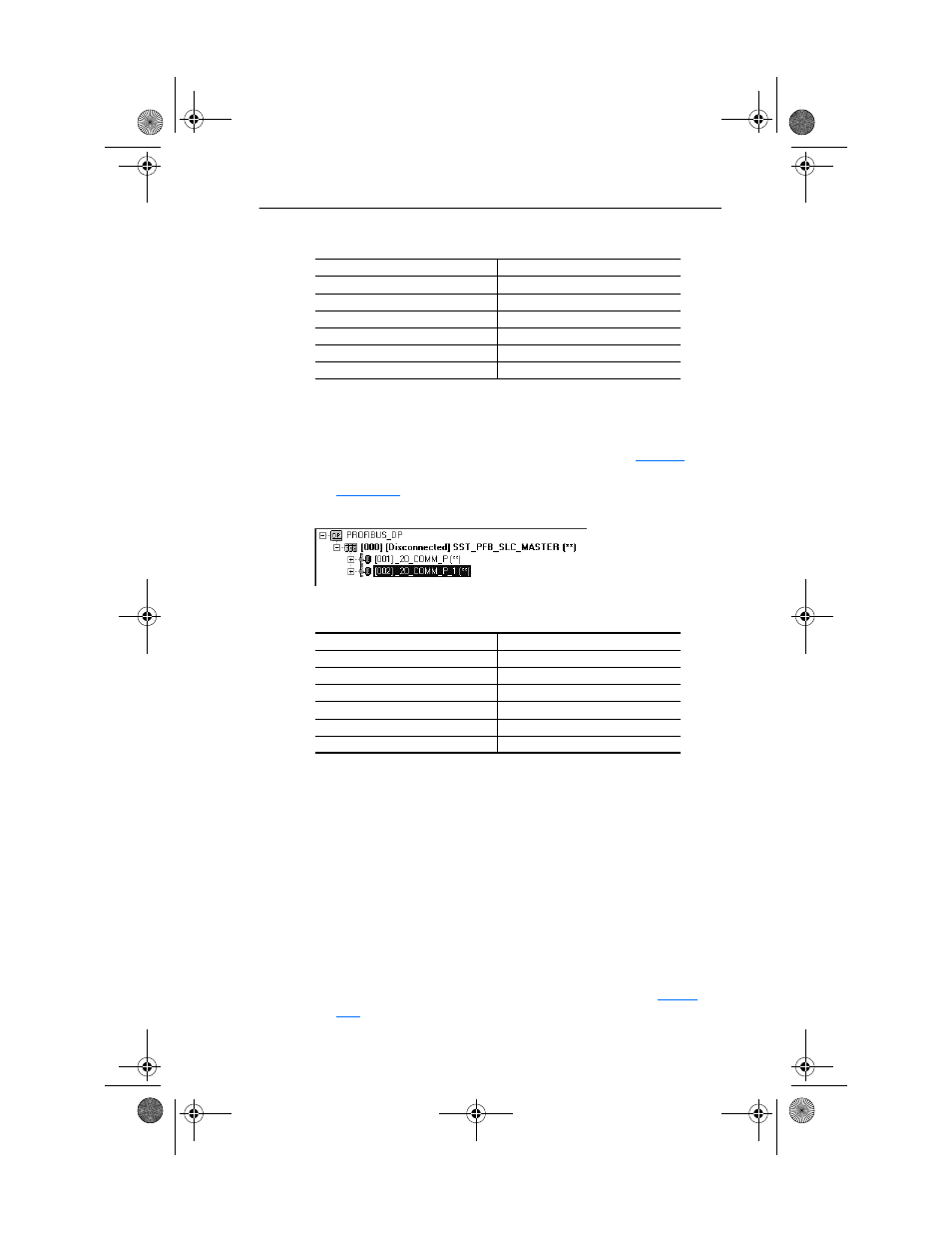

Figure 4.31 Station 2 Network window
Station 2 is configured as follows:
Note that Station 2 occupies 14 words (14-27).
31. Use the null modem cable that came with the scanner to connect
COM1 on the PC and the CONFIG RS232 port on the scanner.
Note: The processor needs to be in program mode before
proceeding.
32. Right-click on the scanner in the network window and select
“Connect”. Then right-click again on the scanner in the network
window and select “Load Configuration”. If a minimum cycle time
attention window pops up, click OK to continue. After the
configuration has been loaded into the scanner, “Configured
Program” will be displayed in the message window. (See
Module
M1/M0 Word
Ctrl/Stat & Ref Fdbk
0
Datalink A
2
Datalink B
4
Datalink C
6
Datalink D
8
Parameter Access
10
Module
M1/M0 Offset
Ctrl/Stat & Ref Fdbk
14
Datalink A
16
Datalink B
18
Datalink C
20
Datalink D
22
Parameter Access
24
20COMM-UM006A-EN-P.book Page 17 Friday, September 28, 2001 10:43 AM
