16 BRIGGSandSTRATTON.COM

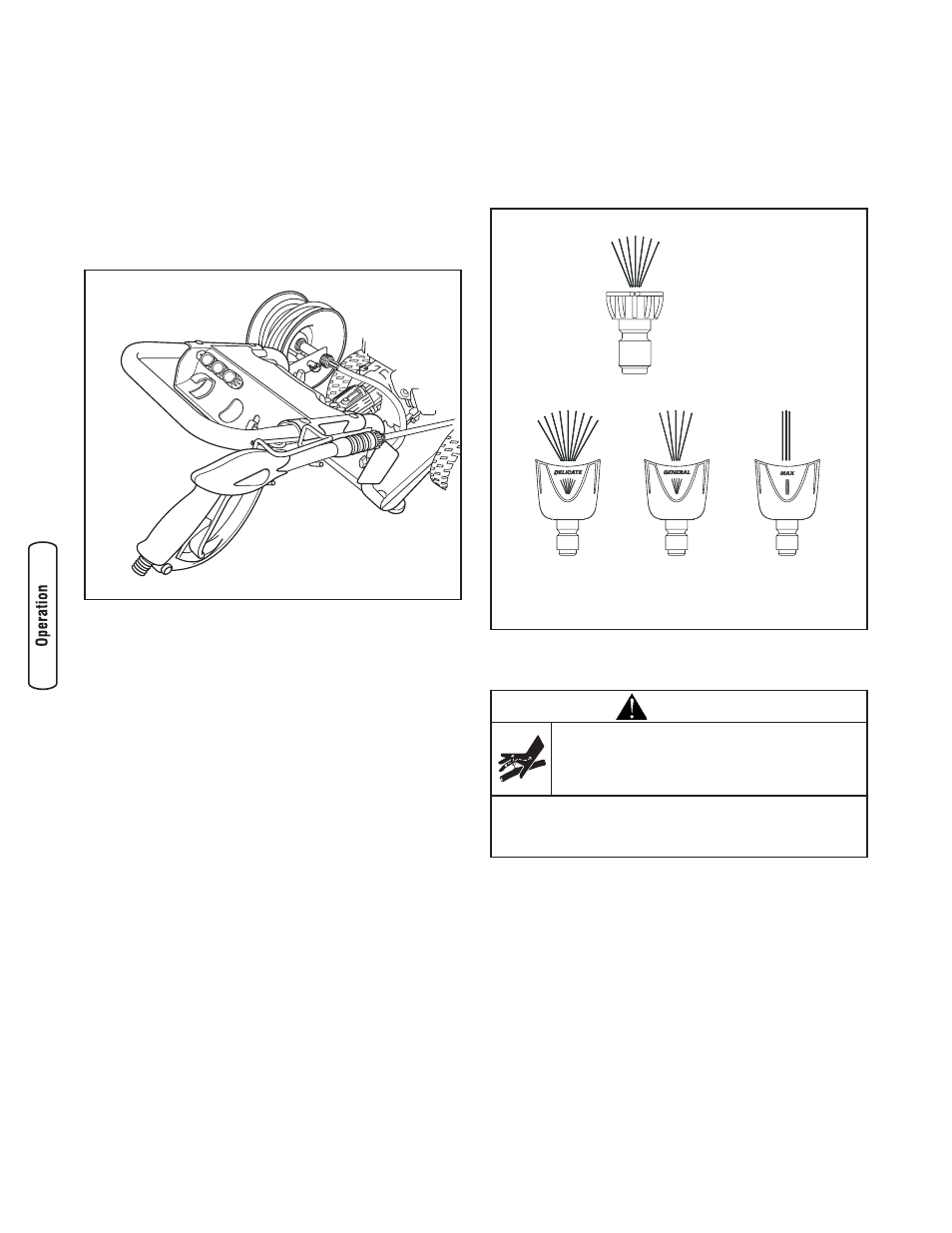

How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your Project Pro® nozzles.
NOTE: The extra hole in the tray is for storing a utility brush.
The extra clip in the tray is for storing a turbo nozzle. The
brush and turbo nozzle are NOT included with your pressure
washer. You can buy these items as optional accessories.
1. Place spray gun and nozzle extension into spray gun
holder wireform, as shown.
2. Coil high pressure hose onto hose reel.
3. Insert multi–colored Project Pro® nozzles in spaces
provided in accessory tray.
How to Use Project Pro® Nozzles
The quick–connect on the nozzle extension allows you to
switch between four different Project Pro® nozzles. Project
Pro® nozzles can be changed while pressure washer is
running once spray gun trigger lock is engaged. The Project
Pro® nozzles vary the pressure and spray pattern as shown.
Follow these instructions to change Project Pro® nozzles:
1. Engage trigger lock on spray gun.
2. Pull back collar on quick–connect and pull current
Project Pro® nozzles off. Store Project Pro® nozzles in
holder provided on the accessory tray.
Delicate
40° Yellow
2650 PSI
2.8 GPM
General
15° Orange
3000 PSI
2.7 GPM
Max
0° Red
3400 PSI
2.4 GPM
Black
Use to apply
detergent
Low Pressure
High Pressure
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER exchange nozzles without locking the trigger lock on the
spray gun.
• DO NOT twist nozzles while spraying.
