Features – Orbital Overlap Dual-TEE Model 225 User Manual
Page 2
Orbital Technical Services Division
5010 Herzel Place
Beltsville, MD 20705
Phone: (301) 902-1152 FAX: (301) 931-0396
www.orbital.com
7500 Greenway Ctr. Dr.,
Ste. 700 Greenbelt, MD 20770
Phone: (301) 220-5600 FAX: (301) 474-2600
All dimensions are in inches
unless otherwise noted

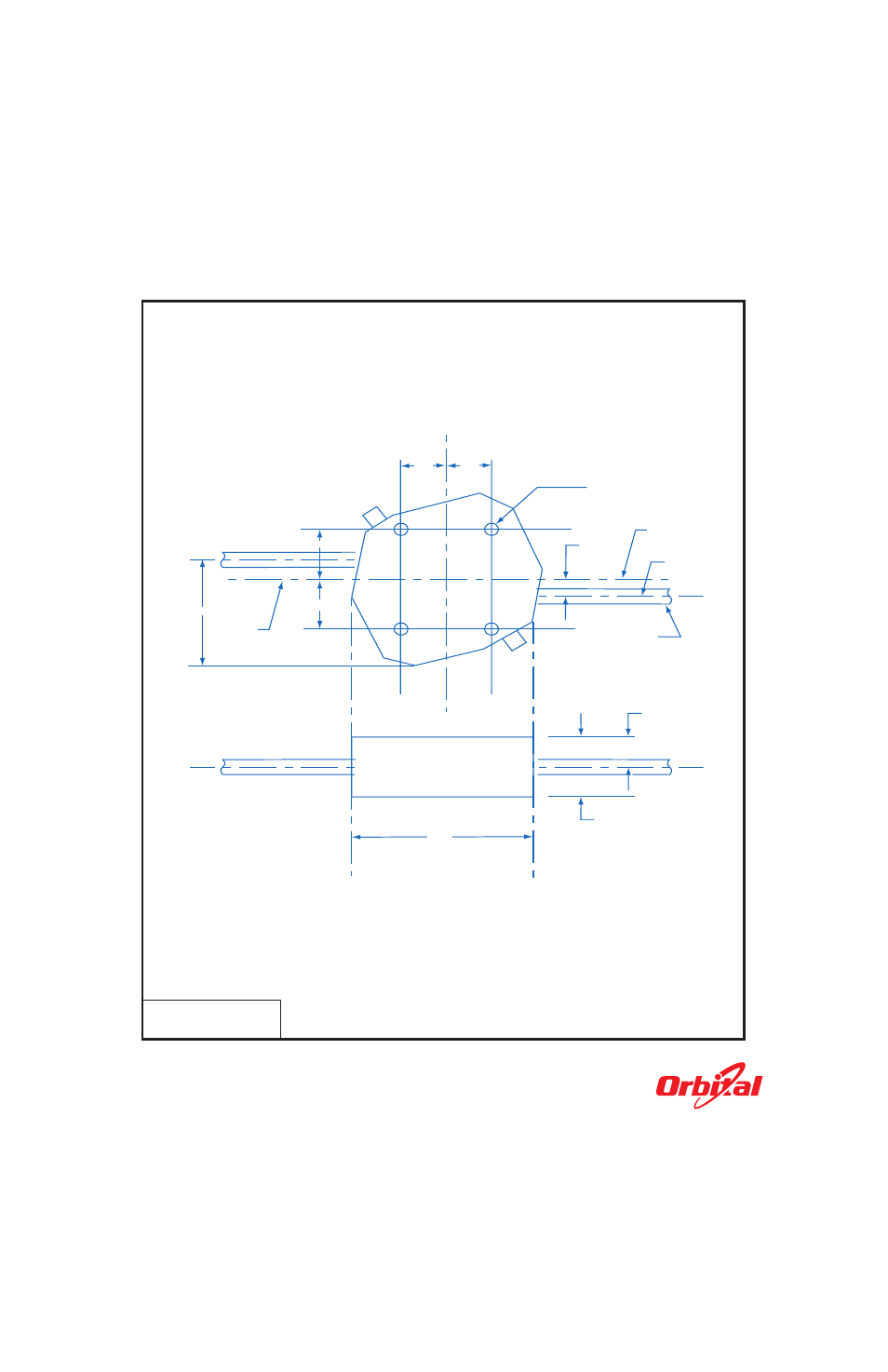

1.562
1.562
1.851
3.895
1.851
1.135
Spacecraft Mounting Holes
Typ. 4 places # 6-32 UNC
Antenna Element
Typ. 2 places
.406 Typ.
C
Unit
L
C
Unit
L
C
Element
L
5.580
Features
■
Automatic full-extend and -retract
■
Deployed length indicator
Overlap Dual-TEE
Model 225
