Tp24X TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 17
set-up
WaTer pump aSSemBLy
1. Remove the water pump from the box and make sure
that it is not damaged.
2. Place the pump onto the recessed area of the water
tray. The pump should be oriented such that the water
outlet is horizontal. See Figure 5.
3. Attach the water hose coming from the blade guard
and bearing housing to the water pump.
4. Install drain plug in water tray.
5. Fill the water tray with clean fresh water. The water
pump intake must always be fully covered by water.
Also, keep the pump intake free of sludge, debris and
other materials that may accumulate in the tray.
6. Make certain that the water hose will not come in contact
with the blade or interfere with any moving parts.

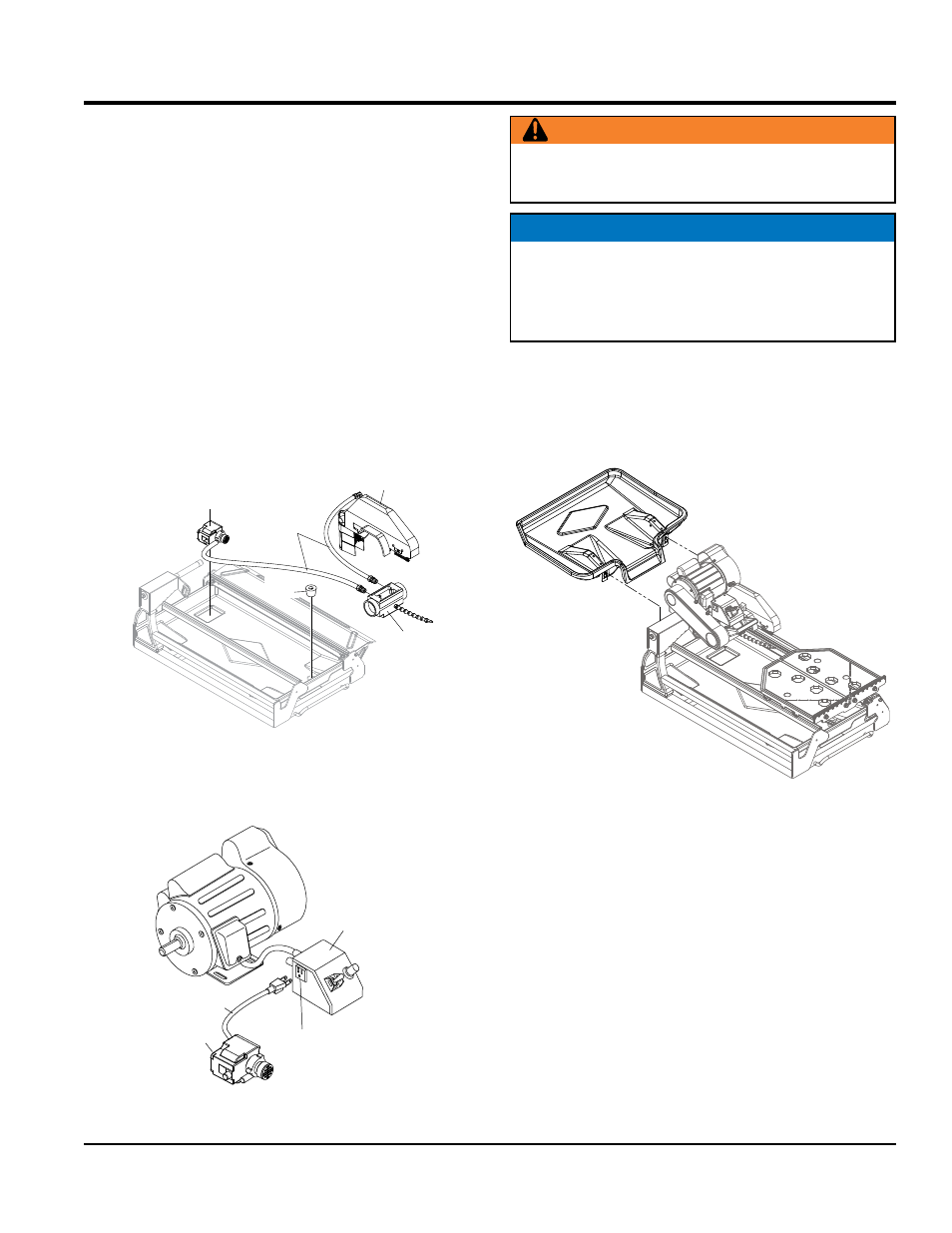

Figure 5. Water Pump and Water Tray
7. Insert the water pump power plug into the outlet receptacle
on the electric motor conduit box as shown in Figure 6.
Figure 6. Water Pump Power Connection
WATER
PUMP
BLADE
GUARD
BEARING
HOUSING
DRAIN
PLUG
WATER
HOSES
115
V
ELECTRIC WATER
PUMP AC
RECEPTACLE
WATER
PUMP
ELECTRIC MOTOR
CONDUIT BOX
POWER
PLUG
rear drIp Tray InSTaLLaTIon
Attach rear drip tray by sliding the two metal clips of the
tray onto the corresponding tabs located at the rear of the
saw frame. See Figure 7.
Figure 7. Rear Drip Tray
WarnIng
Disconnect the pump before attempting to handle the
pump. never operate pump without water in the tray.
NOTICE
The above procedure is for wet cutting applications only.
never dry cut with the pump connected to an AC power
source. Running the pump dry will damage the pump.
aLWayS disconnect the pump’s power cord when dry cutting.
