Section 5 - Maintenance and Storage
90-8M0082949
eng
JULY 2013 Page 27

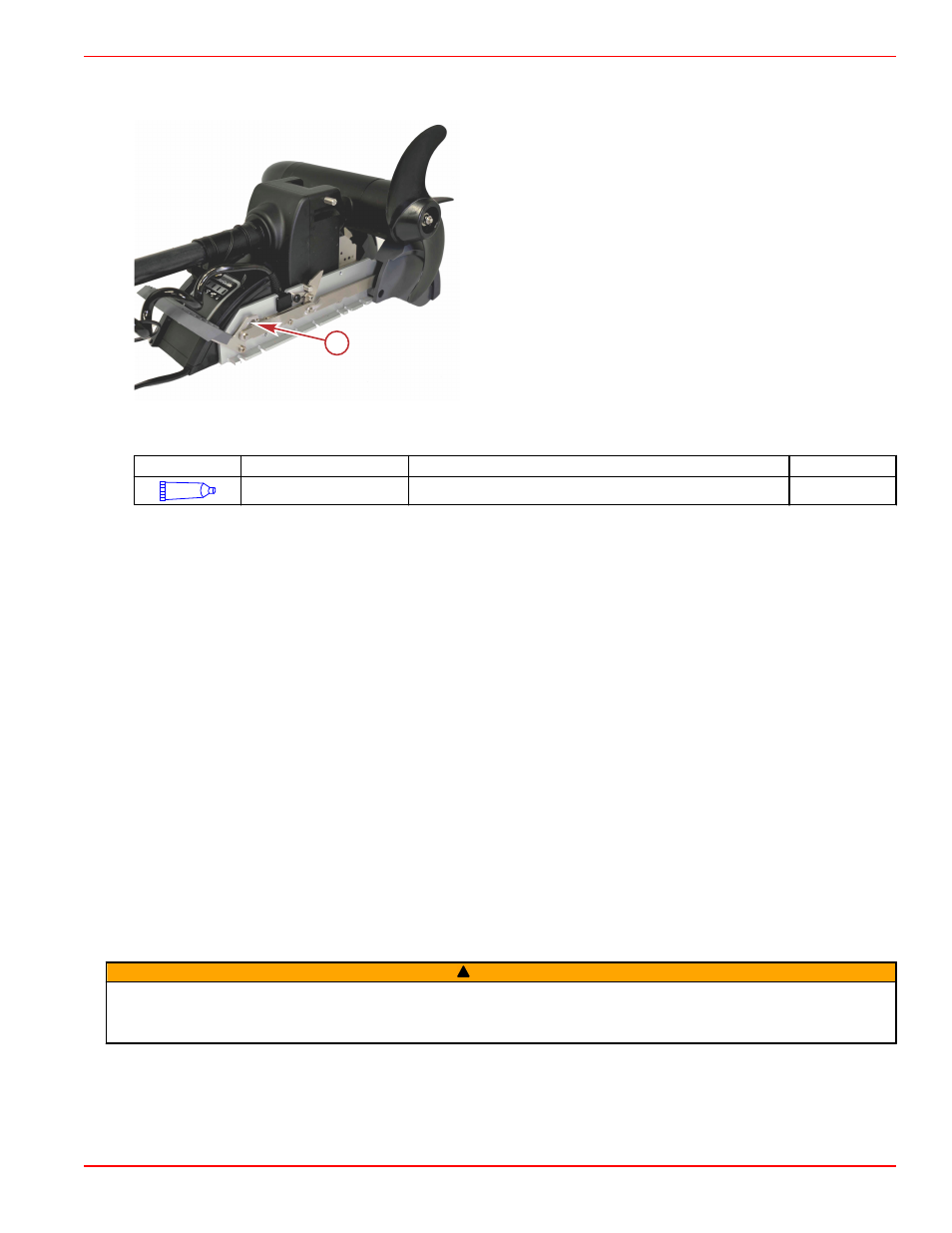

3. Apply 2‑4‑C with PTFE to the slot on the foot release lever linkage on each side of the deck mount. Press the foot release
lever and apply more 2‑4‑C with PTFE to the slot, equally distributing the grease along the length of the slot.
a - Slot
IMPORTANT: Never use an aerosol lubricant or solvent‑based lubricant to grease or oil any part of the trolling motor. Many
aerosol lubricants contain harmful propellants that can cause damage to various parts of the trolling motor.
Tube Ref No. Description Where Used Part No.
95 2-4-C with PTFE Slot on the foot release lever linkage 92-802859A 1
4. Install the side panels onto the deck mount and tighten the screws.
5. Check the tightness of the mounting screws, nuts, and other fasteners.
6. Inspect the battery. Refer to Battery Inspection.
Storage Preparation
The major consideration in preparing your trolling motor for storage is to protect it from corrosion and damage caused by
freezing of trapped water. It is also recommended that batteries are disconnected prior to storage and that the batteries are
stored indoors in a dry location during long‑term storage. The batteries should also be removed from the handheld remote and
wireless foot pedal for long‑term storage.
Refer to the Inspection and Maintenance Schedule and complete the appropriate care instructions to prepare your trolling
motor for storage. Store the trolling motor in a dry location where it will not be affected by temperatures below –29 °C (–20 °F).
IMPORTANT: Trolling motors stored in temperatures below 0 °C (32 °F) should be operated slowly for a minimum of 15
minutes before going above 30% throttle.
Battery Inspection
The battery should be inspected at periodic intervals to ensure proper trolling motor operation.
IMPORTANT: Read the safety and maintenance instructions that accompany your battery.
1. Ensure that the battery is secured to the vessel.
2. Ensure that the battery cable terminals are clean, tight, and correctly installed. For installation instructions, refer to Section
3—Battery Connection .
3. Ensure that the battery is equipped with a battery box to prevent accidental shorting of the battery terminals.
Propeller Replacement
!
WARNING
Performing service or maintenance without first disconnecting the battery can cause product damage, personal injury, or
death due to fire, explosion, electrical shock, or unexpected motor starting. Always disconnect the battery cables from the
battery before maintaining, servicing, installing, or removing motor components.
Removing the Propeller
1. Disconnect the power cables from the battery.
2. While holding the propeller blade with one gloved hand, use a 9/16 in. wrench or a ratchet and a 9/16 in. socket to remove
the propeller nut. Remove the propeller nut and washer (or anode, for saltwater models).
a
53466
