Section 3 - Product Installation, Wiring, and Battery Information
90-8M0082949
eng
JULY 2013 Page 15
7. Starting with the positive (+) lead, reconnect the battery cables to the engine starting battery.

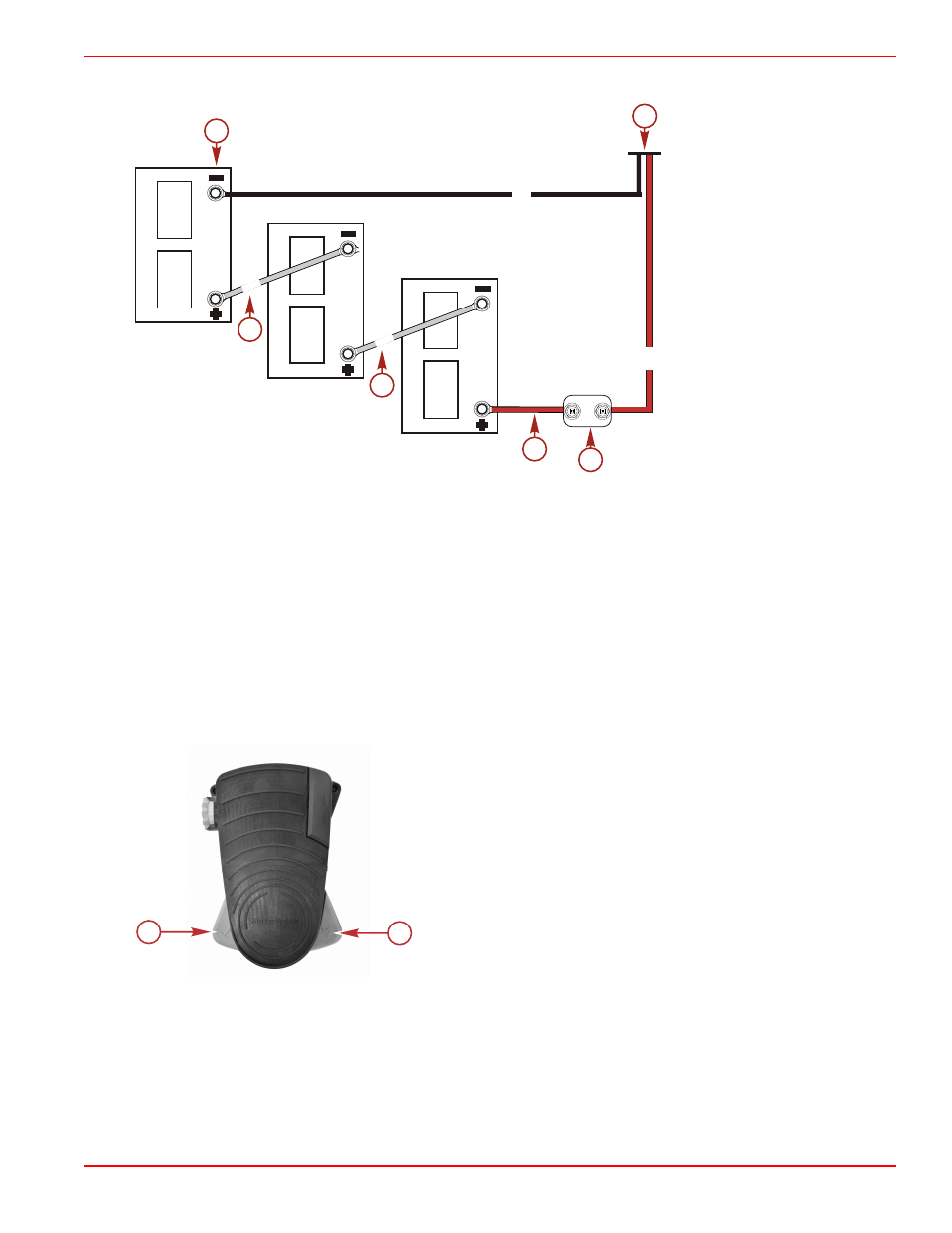

36-volt battery connection
a - Power cables to trolling motor
b - Manual reset circuit breaker
c - Jumper wire (not supplied)
d - Negative (–) battery terminal
IMPORTANT: Do not connect a common ground bond cable between 36‑volt and 12‑volt electrical circuits.
Activating the Wireless Foot Pedal
Each wireless foot pedal and wireless handheld remote has a unique serial number, and each wireless controller must be
synced individually to the trolling motor receiver. The trolling motor receiver can sync up to 40 wireless controllers. This ensures
that the trolling motor will respond to commands only from designated controllers. Follow the instructions below to activate a
wireless controller with your trolling motor. For erasing and reprogramming information, refer to Section 6—Erasing the
Receiver's Memory
and Section 6—Reprogramming the Wireless Foot Pedal or Remote.
IMPORTANT: To activate multiple foot pedals or remotes, the motor must be unplugged from the power source and then
plugged back into the power source between activating each control device.
1. Connect the battery cables to the battery, or plug in the battery cable to a power source. Within ten seconds of connecting
the battery cables to their terminals, press and hold the propeller and anchor buttons on the wireless foot pedal
simultaneously.
2. Listen for a multitone beep, indicating that the receiver has synced the electronic serial number.
a - Anchor button (foot pedal on/off)
b - Propeller button (propeller on/off)
3. To turn the pedal on or off, press and hold the anchor button. One beep from the foot pedal indicates that the foot pedal is
turned on, two beeps indicate that the foot pedal is turned off.
Activating the Handheld Remote
1. If the trolling motor battery cables are connected, disconnect the battery cables from the trolling motor battery, starting with
the negative (–) lead.
RED
BLK
37825
GRY
c
Battery B
Battery C
Battery A
GRY
c
a
b
c
d
a b
51767
