SETUP
PRE-START INSPECTION
The pre-start inspection should be performed before beginning any job.
•
•
•
•
•
CAUTION
Before powering or starting, check for damage that could prevent this equipment from proper operation
or performing its intended function. Check for binding and alignment of moving parts. Check for damaged,
broken or missing parts.
Verify the trigger switch-locking button is in the RELEASE position.
Before connecting the PX-3 to a power supply, be sure the voltage, cycle and phase of the job site power
source meet the following requirements:
If using an extension power cord, make sure the length and wire gauge corresponds to the requirements
listed in the table on page 9. An extension power cord that is too small in wire gauge (diameter), or too long
in length, will cause the motor to overheat and could cause premature failure.
DO NOT cover the motor vents. This could lead to motor overheating.

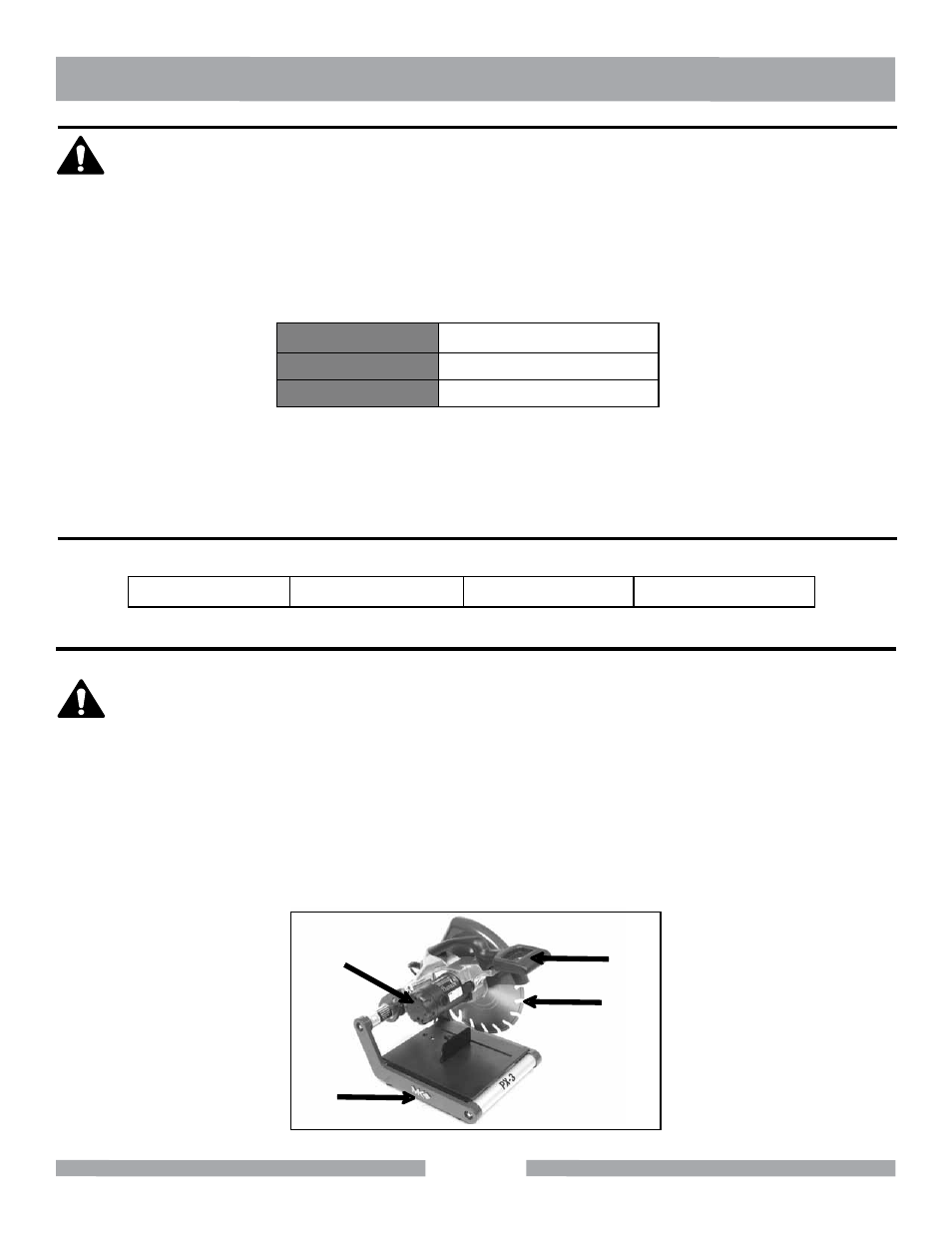

Fig. 14 Pre-start Inspection Locations
VOLTAGE 120V
CYCLE 60 Hz
PHASE 1-PHASE
PORTABLE GENERATOR
If using a portable generator to provide power, ensure the generator meets the following minimum requirements:
8kW 120V/240 66.7/33.3 AMPS SINGLE PHASE
CAUTION
In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
If the Diamond Blade shows signs of fatigue cracking, replace the Blade before starting work. See the Diamond
Blade Change Out section on Page 24.
1.
2.
3.
4. Inspect the Blade for damage. Verify the Blade is correct for the material being cut (Figure 14).
Inspect the PX-3 for damage.
Inspect the Motor Air Filter for cleanliness.
Verify the Trigger Switch is unlocked.
1
2
3 4
PX-3 PAVER EXTREME INSPECTION & SET-UP
