Installation in rack

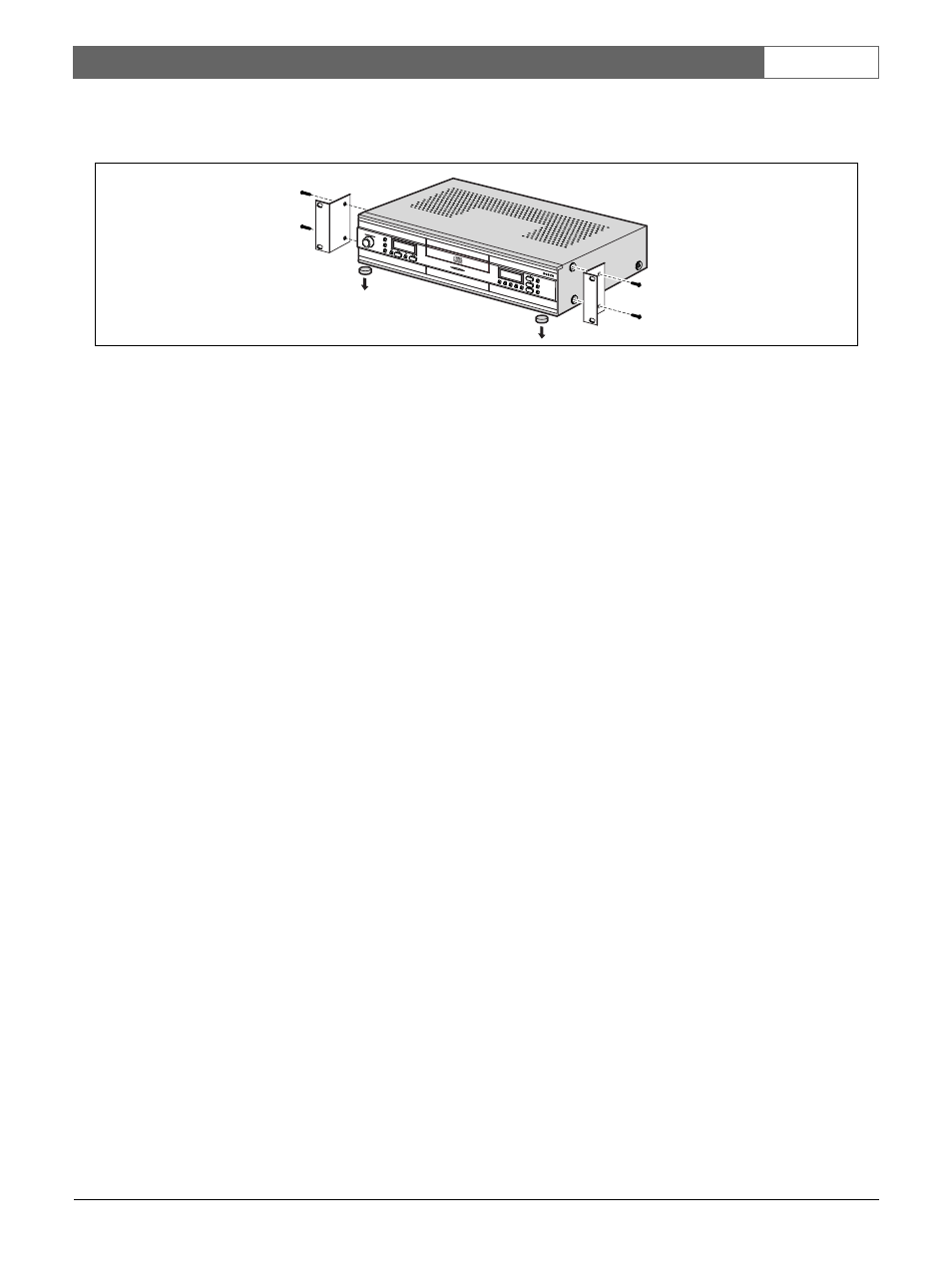

Figure 2.1
Carefully peel off the protective plastic film on both displays. Do not use sharp or pointed objects in order to avoid
scratches. Use you fingernails instead.
The BGM Source is delivered for tabletop use, but you can mount it in a 19" rack. If you mount the unit in a rack,
you must:
•
use the mounting brackets delivered with the unit.
•
remove the 4 feet from the bottom of the unit. (Without the feet the unit is 2U high.)
