4. Instrument Setup
4.5 Optional accessories
Magnifying glass
The magnifying glass provides a magnified view of the work area. When
properly adjusted, an enlarged view of the dispenser and cooling spot is
available.

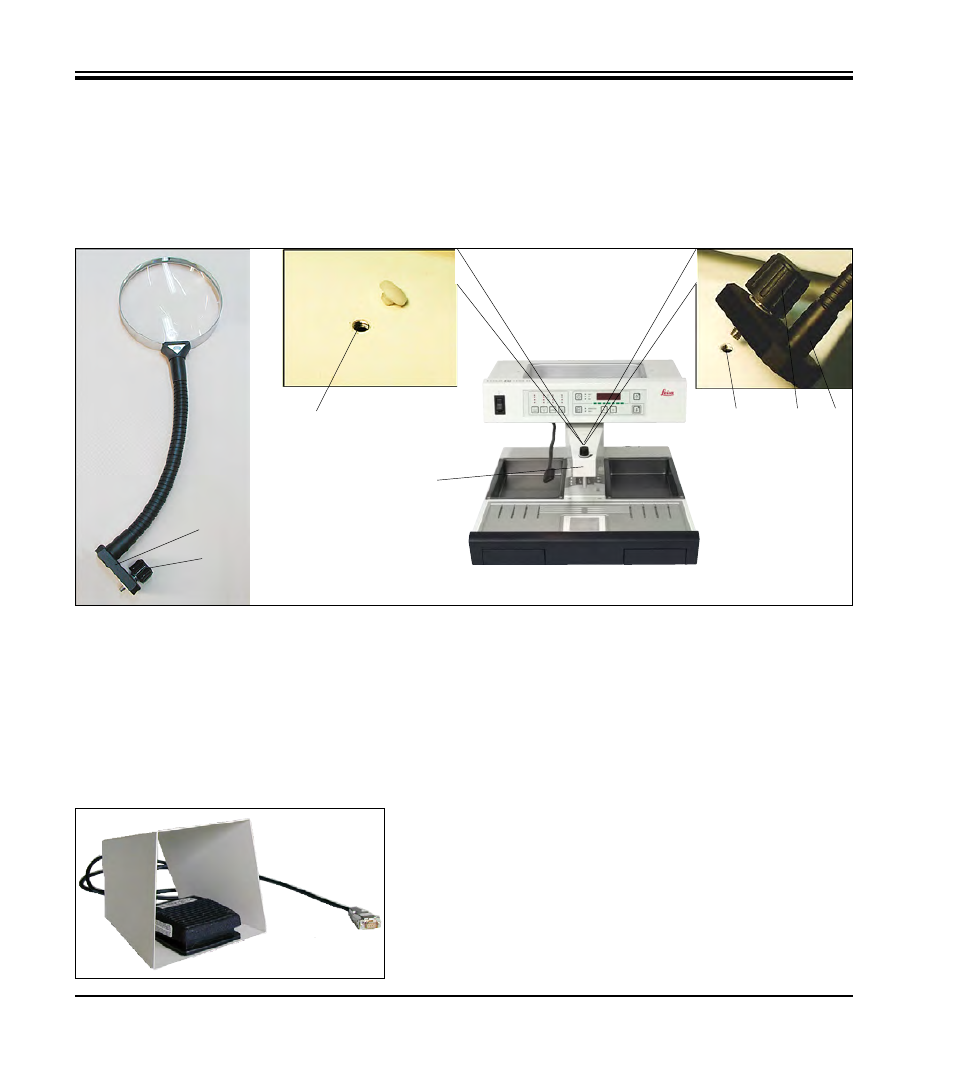

Fig. 7
Installing the magnifying glass
• On the dispenser (5) a tap hole (1) is provided, which is closed with a nylon
screw (2).
• Remove the screw (2) with a screwdriver and store it in a safe place. Then
screw the knurled screw (3) of the stand (4) firmly into the tap hole and align
the magnifier.
Foot switch
The foot switch can be used to actuate the dispenser
valve, leaving the operator's hands free.
• To connect and use the foot switch, see
Chapter 4.6
and 5.1 .
5
1 2
5
1 4 3
Fig. 8
4
3
