Fixed mounts for multi-purpose backrest – Kuryakyn 1659 FIXED MOUNTS FOR MULTI-PURPOSE BACKREST User Manual

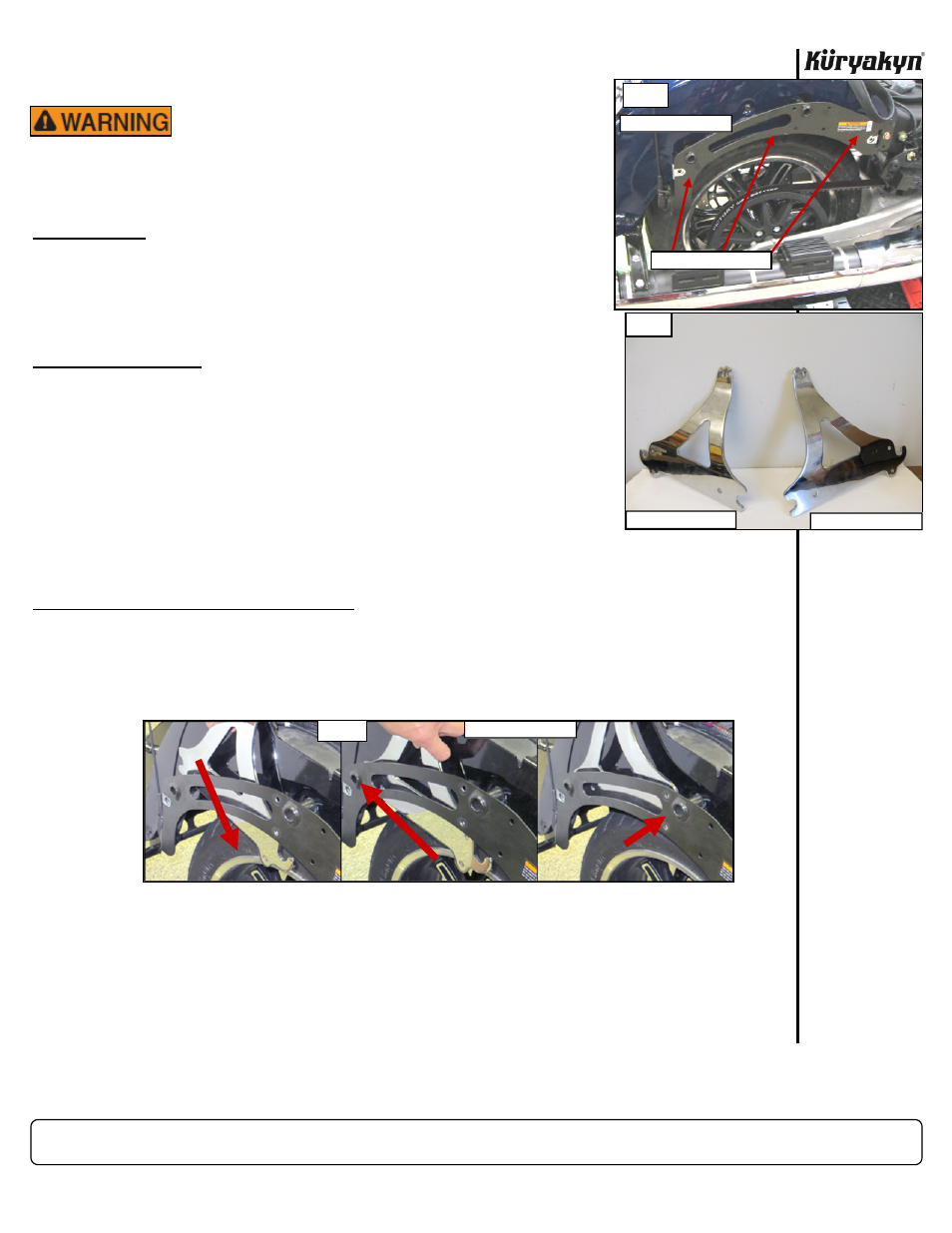

Page 2

background image

PAGE

2

STEP 1

Read and understand all steps in the instructions before starting the installation. Park the motor-
cycle on a hard, level surface and turn off the ignition. Let the engine and exhaust cool.





BIKE PREP:


STEP 2

Remove both saddlebags to expose the saddlebag mounting brackets.
PIC 1. Refer to owners/service manual for proper procedure. Set the sad-
dlebags aside on a soft, sturdy surface.


PRE-ASSEMBLY:


STEP 3

Locate and become familiar with the contents of the hardware kit. Keep the
hardware kit within arms reach of your work area.

STEP 4

Determine the clutch-side (left) Fixed Mount from the brake-side (right).
PIC 2 Set the Fixed Mounts within arms reach of the saddlebag area on the
correct side.

STEP 5

Insert one of the included #10-24 X 7/8” Button Socket Cap Screws
through one of the included #10-24 Lock Washers, and #10-24 Flat Wash-
ers. Set the screw with washers within arms reach of the brake-side saddlebag area.


FIXED MOUNT INSTALLATION:


STEP 6

Refer to PIC 3. Maneuver the front end of the brake-side Fixed Mount underneath the front sad-
dlebag bracket tube (

1

). Slide the Fixed Mount backward so that the rear “fork” of the Fixed

Mount engages the rear saddlebag bracket tube (

2

). Rotate the mount upward so the front “fork”

engages the front saddlebag bracket tube (

3

).









STEP 7

Slide one of the included Thick Washers between the saddlebag bracket and Fixed Mount. Align
the Thick Washer with the hole in the LOWER saddlebag bracket. FIG 1

STEP 8

Holding the Fixed Mount in place, insert the #10-24 screw with washers (from STEP 5) through
the LOWER hole and Thick Washer as shown in FIG 1.


STEP 9

Thread the #10-24 screw into the Fixed Mount weld-nut. Leave loose for now. FIG 1

FIXED MOUNTS FOR MULTI-PURPOSE BACKREST

-cont.-

INSTALLATION

PIC 2

BRAKE-SIDE (RIGHT)

CLUTCH-SIDE (LEFT)

PIC 3

1

2

3

BRAKE-SIDE (RIGHT)

YOU WILL BE WORKING AROUND THE ENGINE
AND EXHAUST SYSTEM DURING INSTALLA-

TION. ENSURE THAT THE ENGINE AND EX-
HAUST SYSTEM HAVE FULLY COOLED TO PRE-

VENT INJURY.

PIC 1

BRAKE-SIDE (RIGHT)

SADDLEBAG BRACKET
