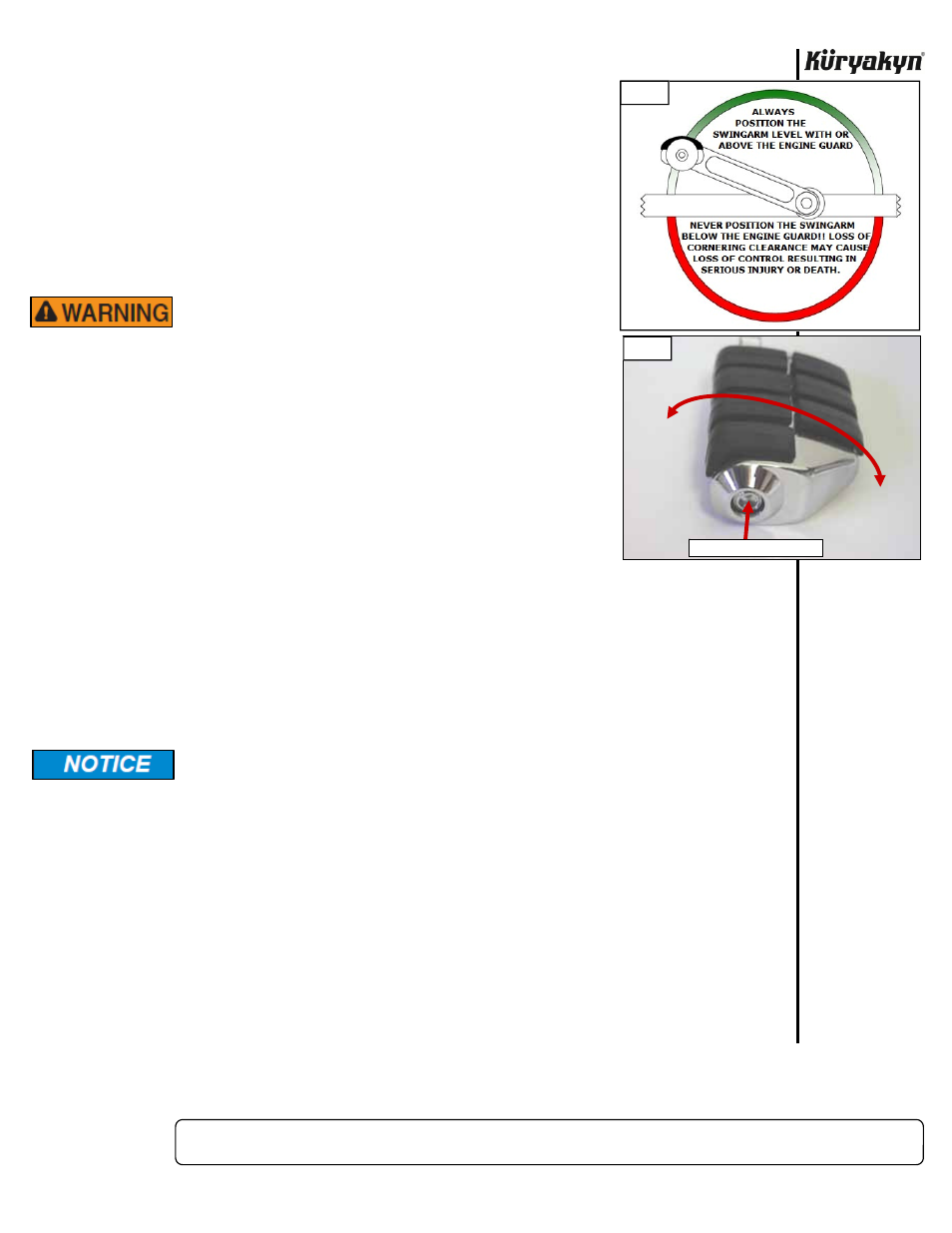

ADJUST POSITION OF MINI ARM AND DUALLY ISO PEGS
STEP 13
Adjust for Longer or Shorter Inseam Lengths:
•
Loosen the 1/2”-13 Button Head Fastener securing the Mini Arm to the
mount. Pull the Mini Arm out of the interlocking cogs.
•
Rotate the Mini Arm to the desired position then push the arm back
into the interlocking cogs; be sure the Mini Arm is either level with the
engine guard, or above the engine guard. NEVER position the
Mini Arm below the engine guard! FIG 1 Tighten the 1/2”-13
fastener securely.
IT IS THE INSTALLERS RESPONSIBILITY TO ENSURE
THERE IS SUFFICIENT CORNERING CLEARANCE
BEFORE RIDING. ALWAYS POSITION THE MINI ARM
EITHER LEVEL WITH, OR ABOVE THE ENGINE GUARD.
POSITIONING THE MINI ARM BELOW THE ENGINE
GUARD WILL GREATLY DECREASE CORNERING
CLEARANCE WHICH MAY CAUSE LOSS OF CONTROL
RESULTING IN SERIOUS INJURY OR DEATH.
STEP 14
Adjust the Clevis Angle:
• Loosen the 1/2-13 Hex Head Fastener securing the Mini Arm to the
clevis. Pull outward on the clevis and Dually ISO Peg to clear the roll
pins.
•
Rotate the clevis and Dually ISO Peg assembly to the desired angle then
push the assembly back into the Mini Arm, making sure the roll pins in
the clevis line up with the holes on the Mini Arm, and re-tighten the fasteners securely.
STEP 15
Adjust the Peg Angle:
Loosen the peg adjustment fastener (PIC 7)and rotate the peg to the desired position. Re-tighten
the fastener.
It is the installer’s responsibility to ensure that all of the fasteners (including
pre-assembled) are tightened before operation of the motorcycle. Küryakyn will
not provide warranty coverage on products or components lost due to improper
installation or lack of maintenance. Periodic inspection and maintenance are
required on all fasteners.
Ride On!
ERGO II/MINI ARMS/DUALLY ISO PEGS
INSTALLATION
FIG 1
PIC 7
ADJUSTMENT FASTENER
